£328.41
excl. VAT
£394.09 incl. VAT
£394.09
incl. VAT
£328.41 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Mowers, Harvesters, Seeders |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual, Delivery without yokes |
| Cross joint bush diameter by machine side | 22 mm |
| Cross joint bush diameter by tractor side | 22 mm |
| Cross joint length by machine side | 55 mm |
| Cross joint length by tractor side | 55 mm |
| Inner tube profile | OOcH |
| Length | 1210 mm |
| Locking type by machine side | Cross |
| Locking type by tractor side | Cross |
| Long description | Series W2300 without yokes |
| Max static torque | 600 N·m |
| Original number equivalent | 1113120 |
| Outer tube profile | Oa |
| Power 1000 rpm | 18 kW |
| Power 540 rpm | 12 kW |
| Profile tube shape | Lemon |
| Properties | Lubrication frequency from 50 to 100 hours, Fulfils EC 89/392 EEC requirements, Complies with EN12965 safety standard, CE marking available |
| Protection type | SD05 |
| Size code | W2100 |

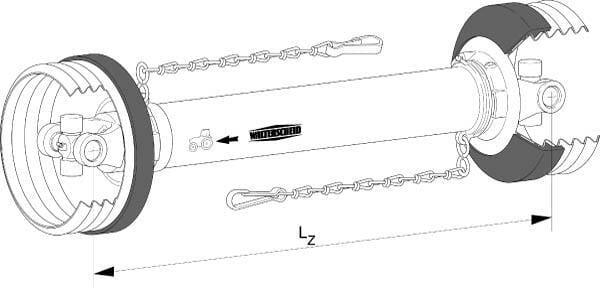

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 28 kW, 500 Nm, Max. dynamic capacity 1,000 rpm: 44 kW, 415 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid-in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7120 g |
| Dimensions | 1280 × 140 × 140 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000357066

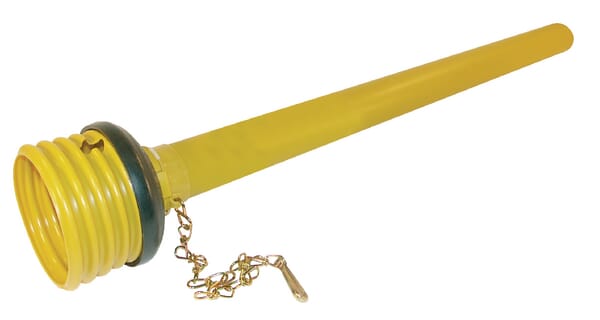

Walterscheid PTO outer half guard diameter 185, L: 550mm SD35550A
£122.75 excl.
£147.30 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000146896
Walterscheid Spring set K64/24 290daNm 592700290
£141.64 excl.
£169.97 incl.
In stock
Expected to ship on Friday 18 September
BPA000065291

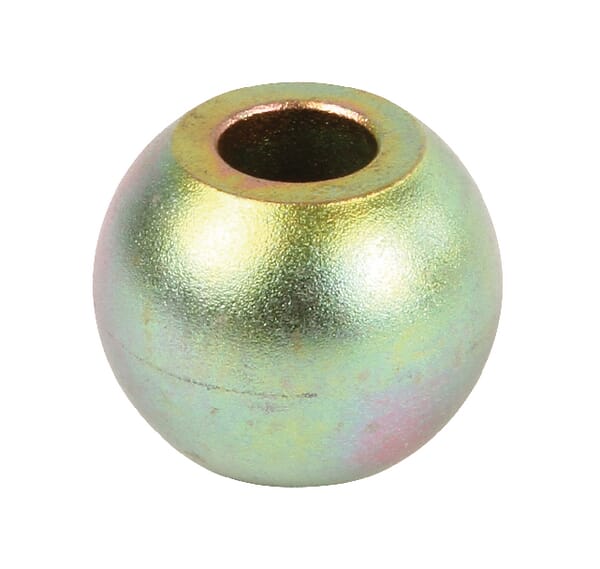

Walterscheid Ball for HGST 201732
£23.91 excl.
£28.69 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000157635
Walterscheid Splined shaft full prof 500L 13/4-6 6745500
£348.54 excl.
£418.25 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000144253
Walterscheid Drive plate K90/4 569300
£38.41 excl.
£46.09 incl.
In stock
Expected to ship on Friday 18 September
BPA000188249

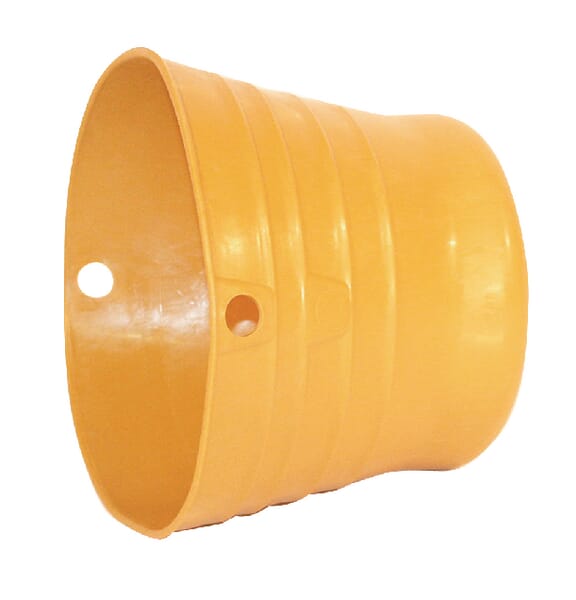

Walterscheid Guard cone 110L 820800
