SKU BPA000400599 · Part No W100E710K941

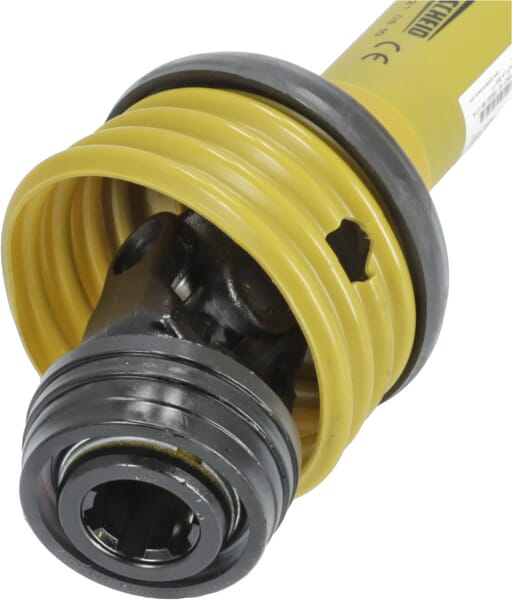

Walterscheid PTO shaft W100E L: 710mm with friction clutch, W100E710K941

Name: PTO shaft W100E L: 710mm with friction clutch, Walterscheid
Brand: Walterscheid
SKU: BPA000400599
Price: 373.42 GBP
Availability: InStock

Application range	Small crop sprayers, Artificial fertiliser spreaders, Tedders, Windrowers

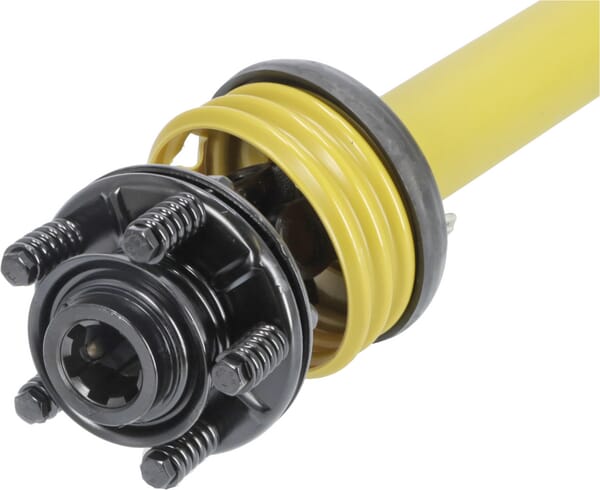

Attachment machine side	Friction clutch
Attachment tractor side	Quick disconnect yoke
Clutch type code	K94/1
Connection outside diameter machine side inch and splines	1.3/8-6
Connection outside diameter tractor side inch and splines	1.3/8-6
Consists of	Pto shaft with joint and guard tube, Declaration of conformity, Instruction manual
Cross joint bush diameter by machine side	22 mm
Cross joint bush diameter by tractor side	22 mm
Cross joint length by machine side	55 mm
Cross joint length by tractor side	55 mm
Inner tube large outside diameter	31 mm
Inner tube profile	OOc
Inner tube wall thickness	3.4 mm
Length	710 mm
Locking type by machine side	Collar lock
Locking type by tractor side	Collar lock
Max. clutch torque	400 N·m
Max static torque	1000 N·m
Original number equivalent	1610195
Outer tube large outside diameter	39 mm
Outer tube profile	Oa
Outer tube wall thickness	2.8 mm
Power 1000 rpm	18 kW
Power 540 rpm	12 kW
Profile tube shape	Lemon
Properties	Tractor side 1-3/8" (6) shaft collar kit, Machinery side 1-3/8" (6) quick release coupling, Lubrication interval: 8 hours, CE marking awarded
Protection type	SD05
Size code	W100E
Technical info	Follow the Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 12 kW, 210 Nm, Max. dynamic capacity 1000 rpm: 18 kW, 175 Nm, Values at a working angle of 5° and service life 700 hours
Unit	Each

EAN	—
Unit of measure	EA
Weight	8600 g
Dimensions	970 × 140 × 140 mm
Dangerous goods	No
