£414.06
excl. VAT
£496.87 incl. VAT
£496.87
incl. VAT
£414.06 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Mowers, Harvesters, Seeders |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual, Delivery without yokes |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 75 mm |
| Cross joint length by tractor side | 75 mm |
| Inner tube profile | 1b |
| Length | 1210 mm |
| Locking type by machine side | Cross |
| Locking type by tractor side | Cross |
| Max static torque | 2300 N·m |
| Original number equivalent | 1800082 |
| Outer tube profile | 2a |
| Power 1000 rpm | 44 kW |
| Power 540 rpm | 28 kW |
| Profile tube shape | Lemon |
| Properties | Lubrication frequency from 50 to 100 hours, Fulfils EC 89/392 EEC requirements, Complies with EN12965 safety standard, CE marking available |
| Protection type | SD25 |
| Size code | W2300 |

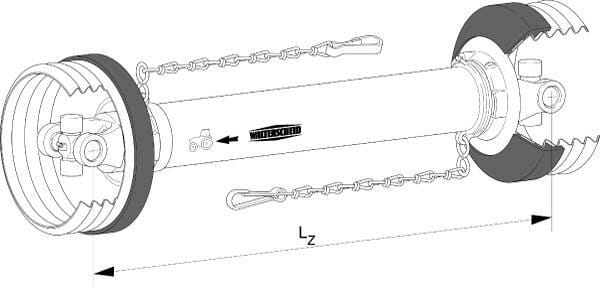

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 28 kW, 500 Nm, Max. dynamic capacity 1,000 rpm: 44 kW, 415 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid-in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 14600 g |
| Dimensions | 1290 × 180 × 180 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000140516
Walterscheid Clutch K33B 2380 1-3/8 6spl 556740390
£524.54 excl.
£629.45 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000043828

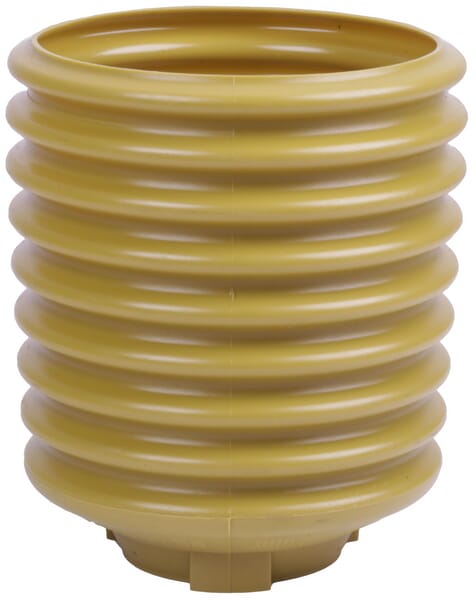

Walterscheid Guard cone 1365349
£21.62 excl.
£25.94 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400106

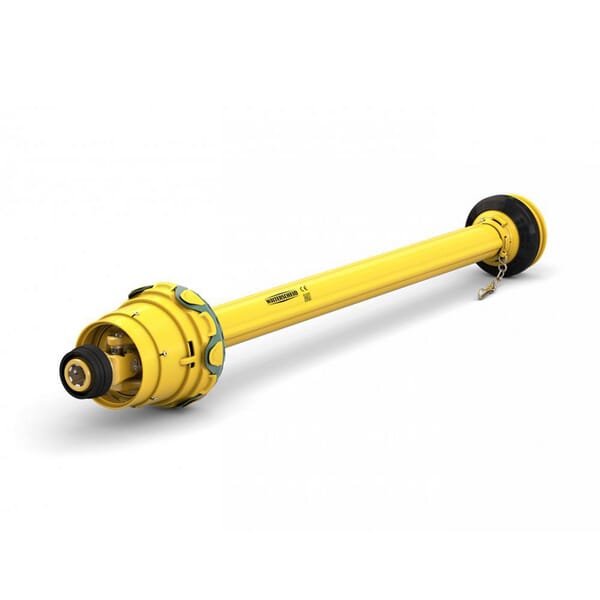

Walterscheid Wide angle PTO shaft WWE 2380 L: 710mm, WWE2380710
£794.02 excl.
£952.82 incl.
In stock
Expected to ship on Friday 18 September
BPA000084227
Walterscheid Linch pin category 2 305855
£9.59 excl.
£11.51 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000066842

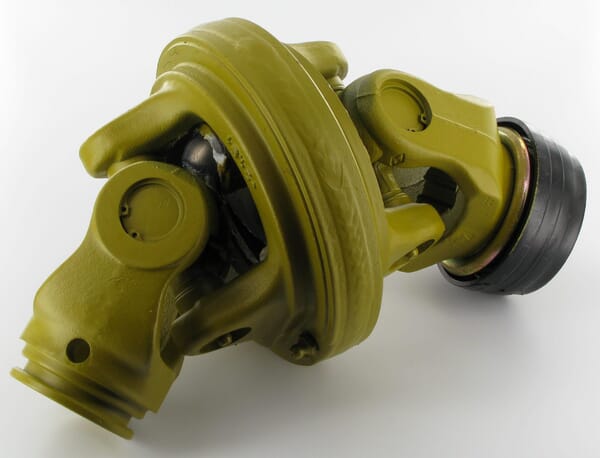

Walterscheid Wide-angle cv joint W2380-0v 21838102111810
£657.70 excl.
£789.24 incl.
In stock
Expected to ship on Friday 18 September
BPA000051582

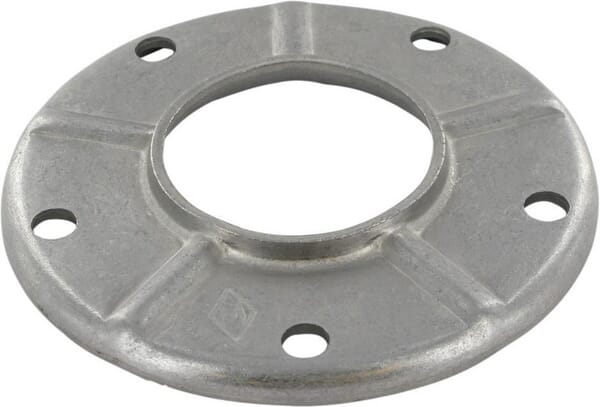

Walterscheid Thrust plate K94/1 162069
