£794.02
excl. VAT
£952.82 incl. VAT
£952.82
incl. VAT
£794.02 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Slurry tank, Crop sprayers, Fertiliser spreader, Hay press |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Wide angle pto-shaft, 1 sided, with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint bush diameter by tractor side - longer part | 24 mm |
| Cross joint length by machine side | 75 mm |
| Cross joint length by tractor side | 75 mm |
| Cross joint length by tractor side - longer part | 91 mm |
| Inner tube large outside diameter | 40 mm |
| Inner tube profile | OvGA |
| Inner tube wall thickness | 4 mm |
| Length | 710 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Long description | Wide-angle PTO shafts 80° series WWE 2380 |
| Max static torque | 2500 N·m |
| Original number equivalent | 1610123 |
| Outer tube large outside diameter | 48 mm |
| Outer tube profile | 1G |
| Outer tube wall thickness | 2.7 mm |
| Power 1000 rpm | 44 kW |
| Power 540 rpm | 28 kW |

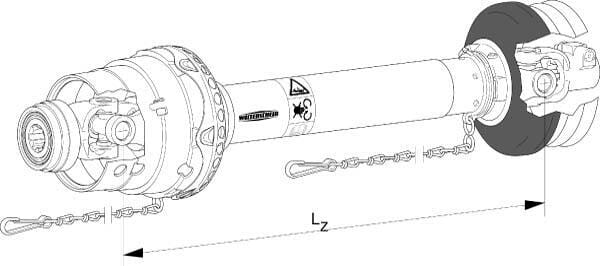

| Product details | PTO shaft 1-sided wide-angle with safety guard, Declaration of conformity, User instructions, Tractor side 1-3/8" (6) collar fastening, Machine side 1-3/8" (6) spring pin, Lubricating interval of 8 hours, Meets the requirements according to EC 89/392 EEC, Meets safety standard EN12965, Provided with "CE" marking, Angle in continuous use maximum 25°, Angle may be 80° only briefly, Max. dyn. power 540 rpm: 28kW - 500Nm, Max. dyn. power 1000 rpm: 44kW - 415Nm, Values at bending angle 10° and service life 1000 hours, LZ= Retracted length c.t.c. outer cross |
| Profile tube shape | Lemon |
| Properties | Tractor side 1-3/8" (6) shaft collar kit, Device side 1-3/8" (6) slide pin, Lubrication interval: 8 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | ST15 |
| Size code | WWE 2380 |
| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 28 kW, 500 Nm, Max. dynamic capacity 1000 rpm: 44 kW, 415 Nm, Values at working angle 10° and service life 1000 hours, LZ = slid in length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 16000 g |
| Dimensions | 930 × 210 × 210 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000076602
Walterscheid QSG P675 KNP1 3/8-6H 268462
£677.85 excl.
£813.42 incl.
In stock
Expected to ship on Friday 18 September
BPA000021418

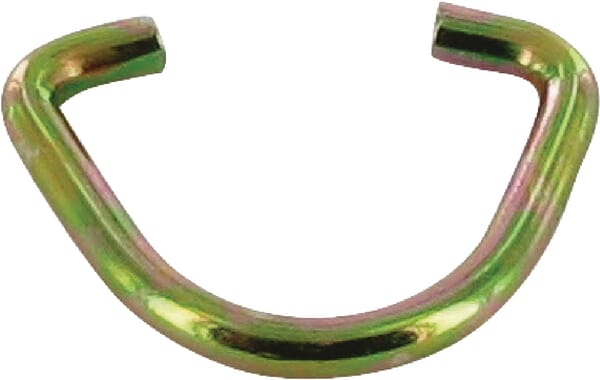

Walterscheid Clamp 099015
£11.06 excl.
£13.27 incl.
In stock
Expected to ship on Friday 18 September
BPA000181282
Walterscheid Lubrication hole cover PG20 8064102
£13.75 excl.
£16.50 incl.
In stock
Expected to ship on Friday 18 September
BPA000190881
Walterscheid Guard cone SD15-2380 FLEXO 850101
£30.29 excl.
£36.35 incl.
In stock
Expected to ship on Friday 18 September
BPA000053390

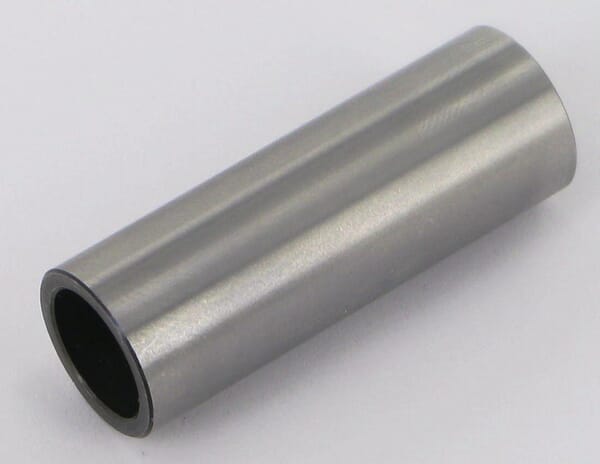

Walterscheid Tube diameter 12x1x45,3 1650758453
£10.33 excl.
£12.40 incl.
In stock
Expected to ship on Friday 18 September
BPA000065419

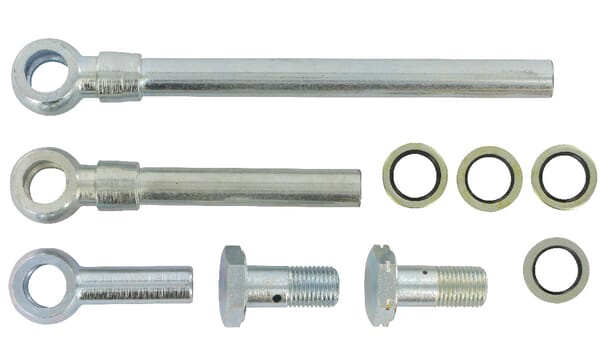

Walterscheid Agraset 382 202195
