£394.32
excl. VAT
£473.18 incl. VAT
£473.18
incl. VAT
£394.32 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Mowers, Harvesters, Soil cultivating machinery |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual, Delivery without yokes |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Inner tube profile | S4LH |
| Length | 860 mm |
| Locking type by machine side | Cross |
| Locking type by tractor side | Cross |
| Max static torque | 6000 N·m |
| Original number equivalent | 1800085 |
| Outer tube profile | S5 |
| Properties | Lubrication frequency from 50 to 100 hours, Fulfils EC 89/392 EEC requirements, Complies with EN12965 safety standard, CE marking available |
| Protection type | SD25 |
| Size code | W2400 |

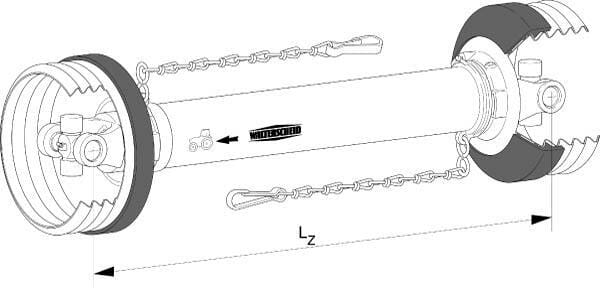

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1,000 rpm: 61 kW, 580 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid-in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 14600 g |
| Dimensions | 940 × 150 × 150 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000400838

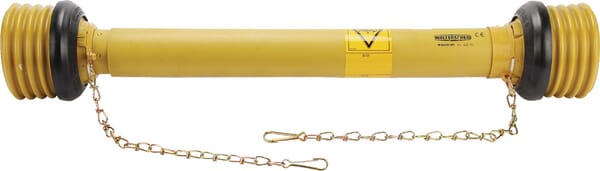

Walterscheid PTO shaft without yokes W2400 L: 860mm, W2400860OG
£303.28 excl.
£363.94 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000084580

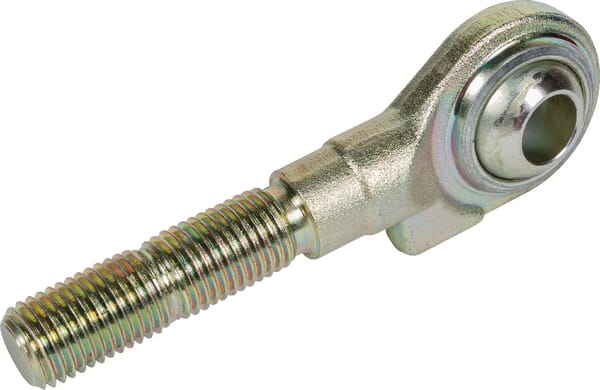

Walterscheid Ball joint 308538
£205.93 excl.
£247.12 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400822

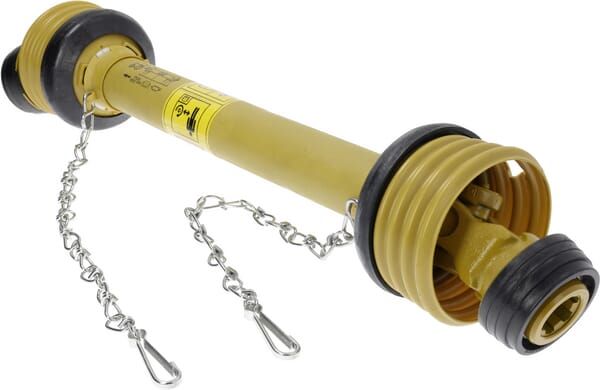

Walterscheid PTO shaft W2400 L: 1010mm, W24001010
£444.92 excl.
£533.91 incl.
In stock
Expected to ship on Friday 18 September
BPA000188490
Walterscheid Guard cone 823700
£41.06 excl.
£49.27 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000143246
Walterscheid Hub FK96/4 1.3/8-21 quick disc 561943
£385.07 excl.
£462.08 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000053363

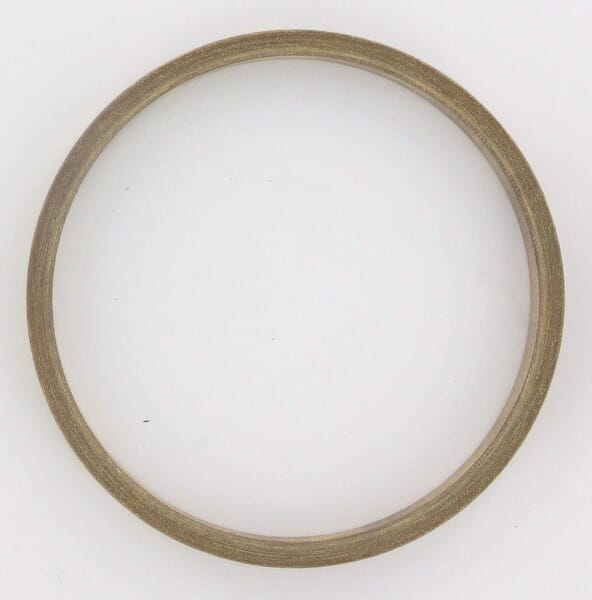

Walterscheid Bearing ring 1650171
