£303.28
excl. VAT
£363.94 incl. VAT
£363.94
incl. VAT
£303.28 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Mowers, Harvesters, Soil cultivating machinery |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual, Delivery without yokes |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Inner tube profile | 1b |
| Length | 860 mm |
| Locking type by machine side | Cross |
| Locking type by tractor side | Cross |
| Max static torque | 3800 N·m |
| Original number equivalent | 1800083 |
| Outer tube profile | 2a |
| Properties | Lubrication frequency from 50 to 100 hours, Fulfils EC 89/392 EEC requirements, Complies with EN12965 safety standard, CE marking available |
| Protection type | SD25 |
| Size code | W2400 |

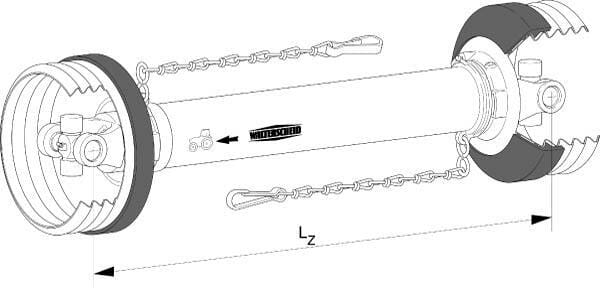

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1,000 rpm: 61 kW, 580 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid-in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 12200 g |
| Dimensions | 920 × 180 × 180 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000400840
Walterscheid PTO shaft without yokes W2400 L: 860mm, W2400860S4S5
£394.32 excl.
£473.18 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000144882

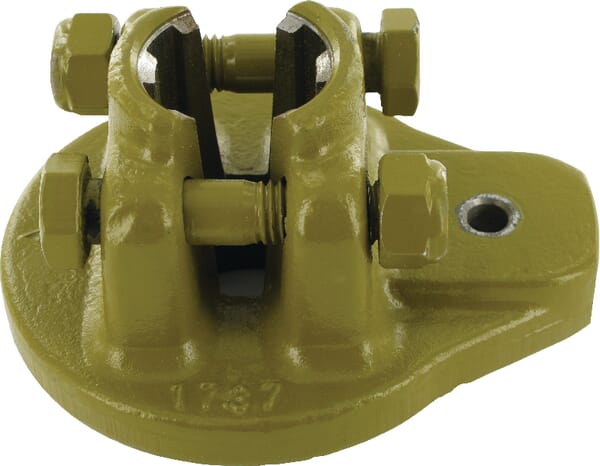

Walterscheid KB61/20 1.3/4 M10 rad.56 572612
£304.51 excl.
£365.41 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000366259
Walterscheid Special tool SW28
£483.64 excl.
£580.37 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400117

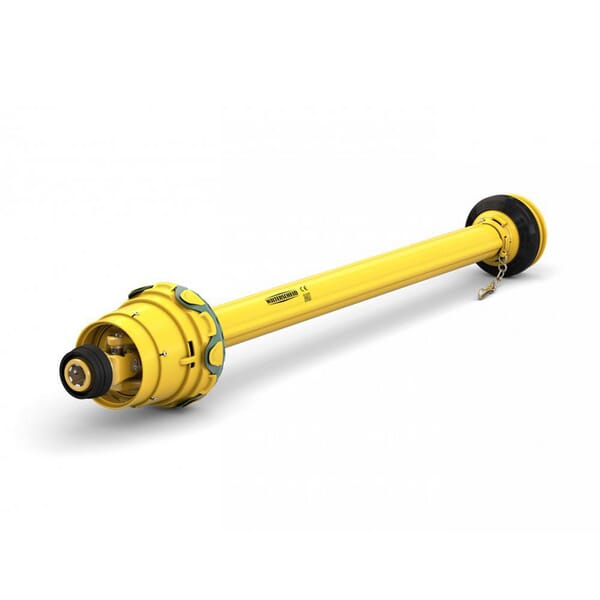

Walterscheid Wide angle PTO shaft WWE 2480 L: 1610mm, WWE24801610
£1,239.47 excl.
£1,487.36 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000067136
Walterscheid Yoke, quick disconnect, 1-3/8"-6 spline, W2300/P300/W300E 2110148
£146.51 excl.
£175.81 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000098296

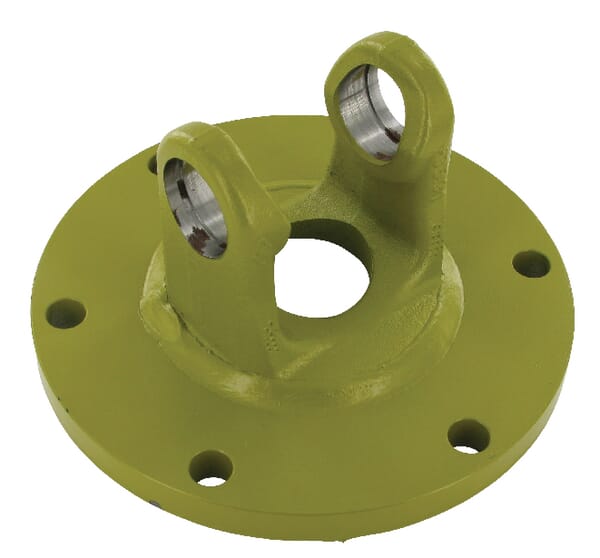

Walterscheid Clutch yoke K90TF 3573106
