£528.44
excl. VAT
£634.13 incl. VAT
£634.13
incl. VAT
£528.44 excl. VAT
Free shipping
In stock
Expected to ship on Friday 25 September
Product details
| Application range | Fertiliser pump, Shredders, Light balers |
|---|---|
| Benefits | Prevents consequent damage, Easily restorable |
| Clutch type code | K61/1 |
| Connection outside diameter tractor side inch and splines | 1.1/8-6 |
| Details | Complete interruption of the drive, Can be restored by replacing a shear bolt |
| DOutside diameter | 106 mm |
| Locking type by machine side | Push pin |
| Long description | Shear bolt clutches complete for manure pumps, shredders and light balers, among others. |
| Max dynamic torque | 1400 N·m |
| Max. rotation speed | 1000 r/min |
| Original number equivalent | 1378999 |
| Product details | Protects against blockages and overload, Power transmission via shear bolt, Drive fully disconnected, Repairable by replacing a shear bolt, Independent rotation direction |
| Properties | Independent of the direction of rotation, Power transmission via shear bolt |
| Pros | Prevents against subsequent damage, Easy to repair |
| RShare bolts circle radius | 42 |
| Shaft size code | W2200 |
| Share bolts thread diameter | M8 |
| Share bolts thread length | 40 |
| Shear bolts quality | 8.8 (steel) |
| Technical info | Protects against blockages and overload |
| Unit | Each |
Logistics
| EAN | 8432970178786 |
|---|---|
| Unit of measure | EA |
| Weight | 2110 g |
| Dimensions | 140 × 129 × 127 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000144485
Walterscheid Shearbolt clutch KB61/1 5711312
£295.60 excl.
£354.72 incl.
In stock
Expected to ship on Friday 25 September
Free shipping
BPA000140231
Walterscheid Radial pin clutch K32B 552000350
£335.98 excl.
£403.18 incl.
In stock
Expected to ship on Friday 25 September
Free shipping
BPA000145557
Walterscheid Clutch housing RH 586049
£503.07 excl.
£603.68 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000042028

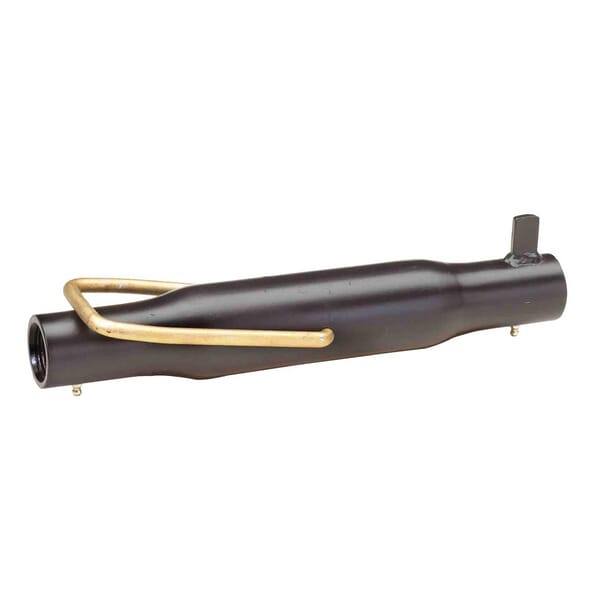

Walterscheid Centre tube 1309696
£163.90 excl.
£196.68 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000244785

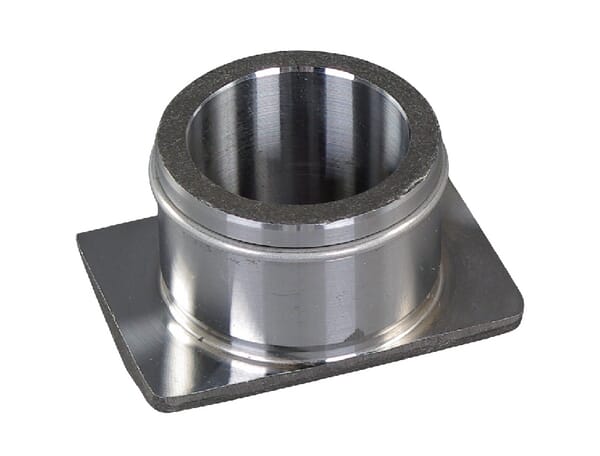

Walterscheid Guide bush 38mm Cramer CK420007203
