SKU BPA000400136 · Part No WWZ23801210I

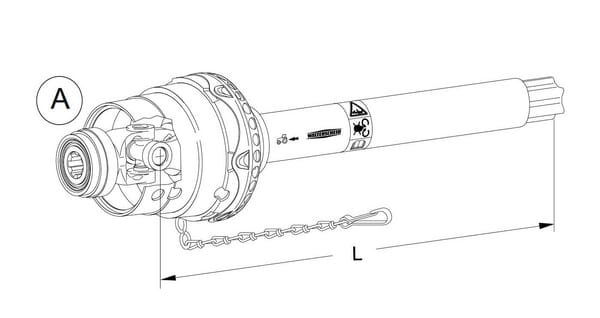

Walterscheid Wide angle PTO half shaft, inner WW 2380 L: 1210mm, WWZ23801210I

Name: Wide angle PTO half shaft, inner WW 2380 L: 1210mm, Walterscheid
Brand: Walterscheid
SKU: BPA000400136
Price: 872.89 GBP
Availability: InStock

Application range	Slurry tank, Crop sprayers, Fertiliser spreader, Hay press
Attachment machine side	n/a
Attachment tractor side	Quick disconnect yoke
Clutch type code	n/a
Connection outside diameter tractor side inch and splines	1.3/8-6
Consists of	Pto shaft with guard tube, Declaration of conformity, Instruction manual
Cross joint bush diameter by machine side	27 mm
Cross joint bush diameter by tractor side	27 mm
Cross joint bush diameter by tractor side - longer part	24 mm
Cross joint length by machine side	75 mm
Cross joint length by machine side - longer part	91 mm
Cross joint length by tractor side	75 mm
Cross joint length by tractor side - longer part	91 mm
Inner tube large outside diameter	40 mm
Inner tube profile	OvGA
Inner tube wall thickness	4 mm
Length	1135 mm
Locking type by machine side	n/a
Locking type by tractor side	Automatic collar lock
Max static torque	2500 N·m
Original number equivalent	1113194
Power 1000 rpm	44 kW
Power 540 rpm	28 kW
Profile tube shape	Lemon
Properties	Tractor-side 1–3/8" (6) shaft collar kit, Lubrication interval: 8 hours, Fulfils EC 89/392 EEC requirements, Complies with EN12965 safety standard, CE marking available
Protection type	SD15
Size code	WWH 2380
Technical info	Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 28 kW, 500 Nm, Max. dynamic capacity 1000 rpm: 44 kW, 415 Nm, Values at working angle 10° and service life 1000 hours
Unit	Each

EAN	—
Unit of measure	EA
Weight	11050 g
Dimensions	1265 × 205 × 205 mm
Dangerous goods	No
