SKU BPA000400145 · Part No WWZ24801210IS4LGA

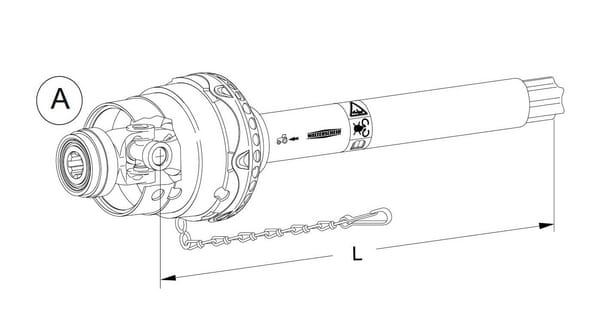

Walterscheid Wide angle PTO half shaft, inner WW 2480 L: 1210mm, WWZ24801210IS4LGA

Name: Wide angle PTO half shaft, inner WW 2480 L: 1210mm, Walterscheid
Brand: Walterscheid
SKU: BPA000400145
Price: 917.44 GBP
Availability: InStock

Application range	Mixing wagon, Slurry wagon, Harvesters, Silage wagon
Attachment machine side	n/a
Attachment tractor side	Quick disconnect yoke
Clutch type code	n/a
Connection outside diameter tractor side inch and splines	1.3/8-6
Consists of	Pto shaft with guard tube, Declaration of conformity, Instruction manual
Cross joint bush diameter by machine side	32 mm
Cross joint bush diameter by tractor side	32 mm
Cross joint bush diameter by tractor side - longer part	27 mm
Cross joint length by machine side	76 mm
Cross joint length by machine side - longer part	94 mm
Cross joint length by tractor side	76 mm
Cross joint length by tractor side - longer part	94 mm
Inner tube large outside diameter	51 mm
Inner tube profile	S4LGA
Inner tube wall thickness	6 mm
Length	1134 mm
Locking type by machine side	n/a
Locking type by tractor side	Automatic collar lock
Max static torque	4000 N·m
Original number equivalent	1113196
Power 1000 rpm	61 kW
Power 540 rpm	39 kW
Profile tube shape	Star
Properties	Tractor-side 1–3/8" (6) shaft collar kit, Lubrication interval: 8 hours, Fulfils EC 89/392 EEC requirements, Complies with EN12965 safety standard, CE marking available
Protection type	SD25
Size code	WWZ 2480
Technical info	Working angle with continuous use maximum 25º, Working angle may only reach 80º briefly, Max. dynamic capacity 540 rpm - 39 kW - 695 Nm, Max. dynamic capacity 1000 rpm - 61 kW - 580 Nm, Values at working angle 10° and service life 1000 hours
Unit	Each

EAN	—
Unit of measure	EA
Weight	14320 g
Dimensions	1250 × 250 × 250 mm
Dangerous goods	No
