£1,852.74
excl. VAT
£2,223.29 incl. VAT
£2,223.29
incl. VAT
£1,852.74 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mixing wagon, Slurry wagon, Harvesters, Silage wagon |
|---|---|
| Attachment machine side | Clamp yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/4-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-21 |
| Consists of | Wide angle pto-shaft, 1 sided, with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint bush diameter by tractor side - longer part | 32 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by tractor side | 89 mm |
| Cross joint length by tractor side - longer part | 106 mm |
| Details | Robust, radial spherical plain bearing integrated in centring system, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4GA |
| Length | 910 mm |
| Locking type by machine side | Clamp cone |
| Locking type by tractor side | Automatic collar lock |
| Long description | PTO drive shafts complete 80° series PWE 580-S4LGAS5 |
| Max static torque | 6000 N·m |
| Original number equivalent | 1602851 |
| Outer tube large outside diameter | 61 mm |
| Outer tube profile | S5 |
| Outer tube wall thickness | 4.5 mm |
| Power 1000 rpm | 117 kW |
| Power 540 rpm | 76 kW |
| Profile tube shape | Star |
| Properties | Lubrication interval: max. 60 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG25 |
| Size code | PWE 580 |

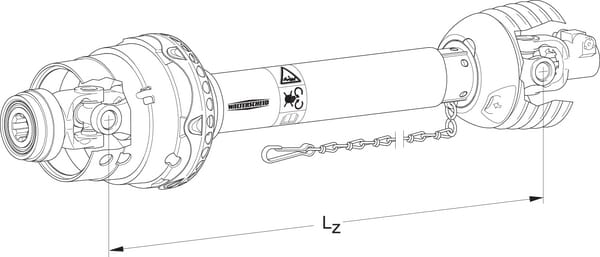

| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at working angle 10° and service life 1000 hours, LZ = closed length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 31000 g |
| Dimensions | 1200 × 250 × 250 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000342460
Walterscheid Wide angle PTO shaft PWE 580 PWE5801010134206
£1,397.30 excl.
£1,676.76 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000098210
Walterscheid Yoke for clutch KB61/20 R:64mm M8, W2400/P400/W400E 356804
£266.19 excl.
£319.43 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000189322
Walterscheid Guard cone-Sd25 8525120
£13.66 excl.
£16.39 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000189723

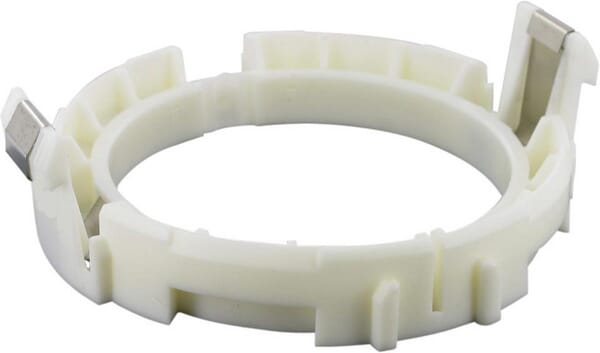

Walterscheid Bearing ring PG30 863000
