£1,391.77
excl. VAT
£1,670.12 incl. VAT
£1,670.12
incl. VAT
£1,391.77 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

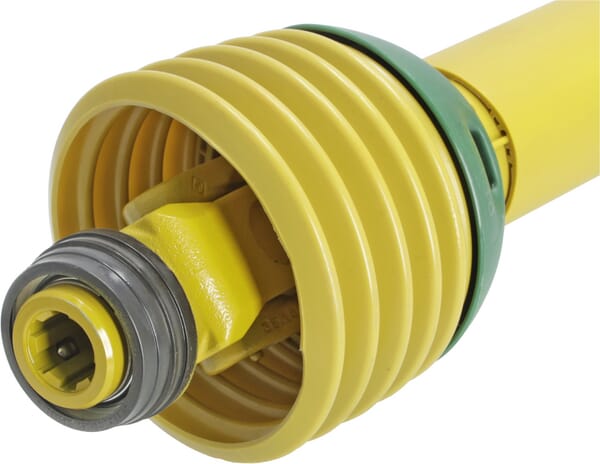

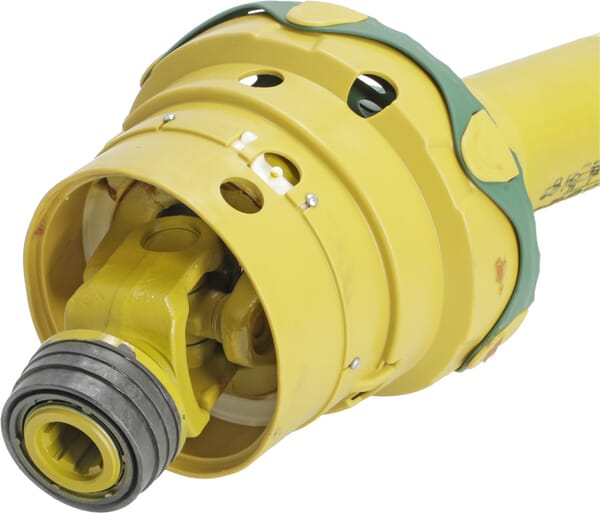

Product details
| Application range | Mixing wagon, Slurry wagon, Harvesters, Silage wagon |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Wide angle pto-shaft, 1 sided, with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint bush diameter by tractor side - longer part | 27 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Cross joint length by tractor side - longer part | 94 mm |
| Details | Robust, radial spherical plain bearing integrated in centring system, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |
| Inner tube large outside diameter | 49 mm |
| Inner tube profile | 1bGA |
| Inner tube wall thickness | 4.5 mm |
| Length | 1210 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Automatic collar lock |
| Max static torque | 4000 N·m |
| Original number equivalent | 1800135 |
| Outer tube large outside diameter | 57.5 mm |
| Outer tube profile | 2aG |
| Outer tube wall thickness | 3.5 mm |
| Power 1000 rpm | 70 kW |
| Power 540 rpm | 45 kW |
| Profile tube shape | Lemon |
| Properties | Tractor side 1-3/8" (6) QS collar kit, Device side 1-3/8" (6) slide pin, Lubrication interval: max. 60 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG25 |
| Size code | PWE 480 |

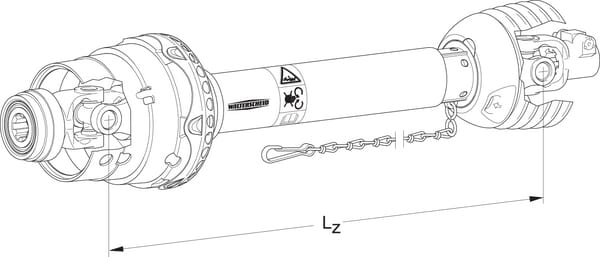

| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at working angle 10° and service life 1000 hours, LZ = closed length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 27400 g |
| Dimensions | 1500 × 270 × 270 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000342457
Walterscheid Wide angle PTO shaft PWE 480 L: 1210mm, PWE4801210S4LGAS5
£1,351.10 excl.
£1,621.32 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000144232

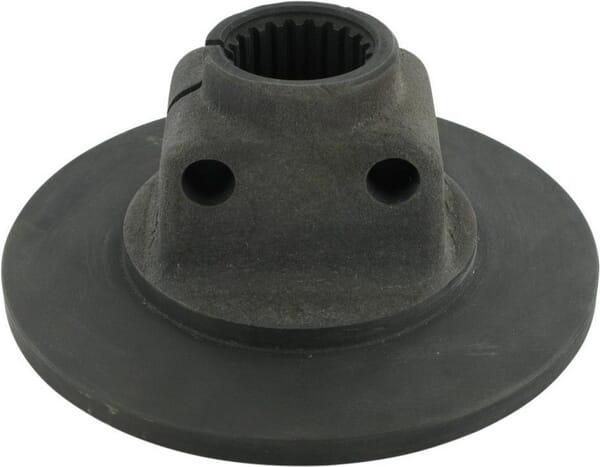

Walterscheid Flange hub K90 1.3/8-21 spline 569006
£484.33 excl.
£581.20 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000178362

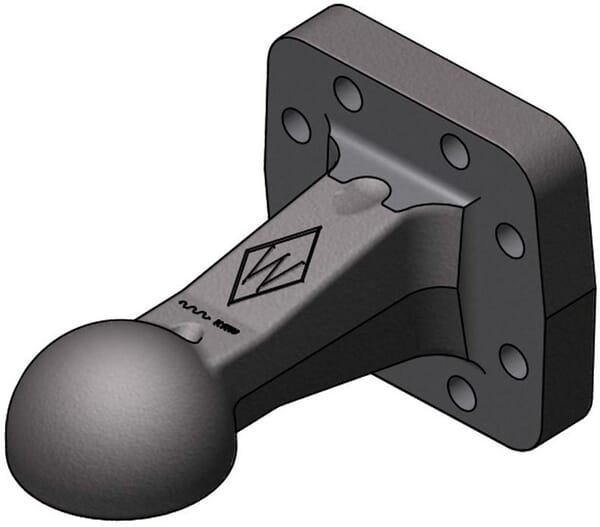

Walterscheid Ball coupling 80mm hitch eye with flange 8005200
£703.37 excl.
£844.04 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000025945

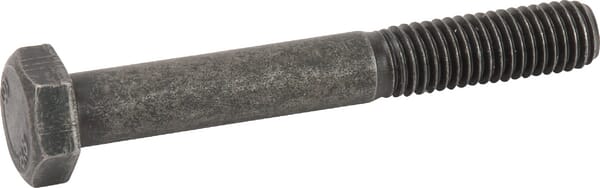

Walterscheid Hexagonal screw 1020443
£3.81 excl.
£4.57 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000068586
Walterscheid Yoke, quick disconnect, 38x32mm -8 spline, W2280 2083834
£265.24 excl.
£318.29 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000146539

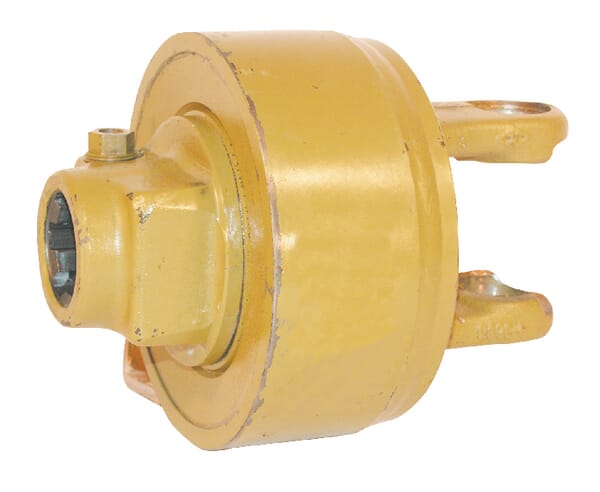

Walterscheid Cam clutch K64/14R 150 daNm 5910842150
