£1,351.10
excl. VAT
£1,621.32 incl. VAT
£1,621.32
incl. VAT
£1,351.10 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mixing wagon, Slurry wagon, Harvesters, Silage wagon |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Wide angle pto-shaft, 1 sided, with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint bush diameter by tractor side - longer part | 27 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Cross joint length by tractor side - longer part | 94 mm |
| Details | Robust, radial spherical plain bearing integrated in centring system, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4LGA |
| Inner tube wall thickness | 6 mm |
| Length | 1210 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Automatic collar lock |
| Max static torque | 4000 N·m |
| Original number equivalent | 1800139 |
| Outer tube large outside diameter | 61 mm |
| Outer tube profile | S5 |
| Outer tube wall thickness | 4.5 mm |
| Power 1000 rpm | 70 kW |
| Power 540 rpm | 45 kW |
| Profile tube shape | Star |
| Properties | Tractor side 1-3/8" (6) QS collar kit, Device side 1-3/8" (6) slide pin, Lubrication interval: max. 60 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG25 |
| Size code | PWE 480 |

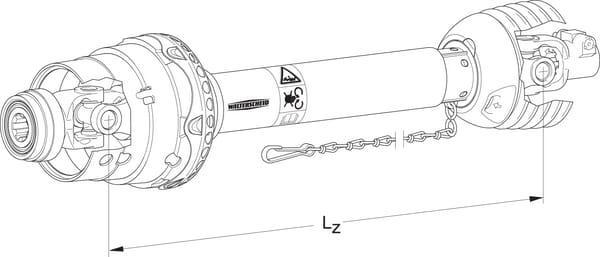

| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at working angle 10° and service life 1000 hours, LZ = closed length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 27400 g |
| Dimensions | 1420 × 235 × 235 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000342454
Walterscheid Wide angle PTO shaft PWE 480 L: 1210mm, PWE4801210
£1,391.77 excl.
£1,670.12 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000172643
Walterscheid Profile tube coated star S4LGA diameter in: 39 diameter out: 51x37x6mm L: 1.4m 7543911400
£251.18 excl.
£301.42 incl.
In stock
Expected to ship on Tuesday 22 September

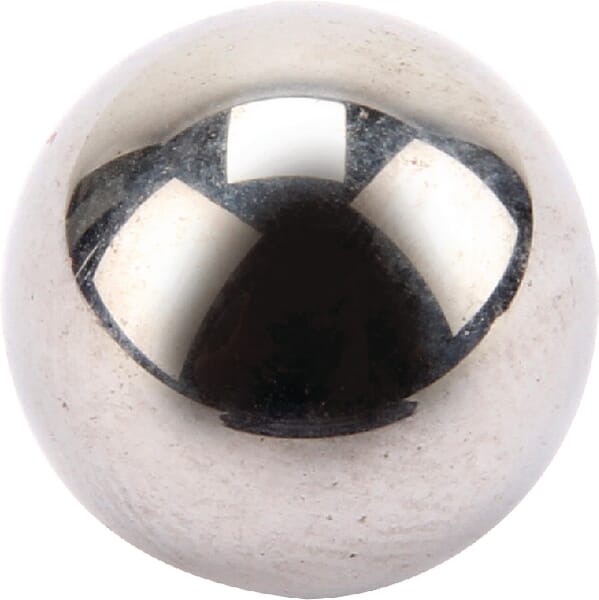

BPA000154203
