£1,260.38
excl. VAT
£1,512.46 incl. VAT
£1,512.46
incl. VAT
£1,260.38 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Connector type | SB25 +6pin Deutsch |
|---|---|
| Lever positioning function | Spring return |

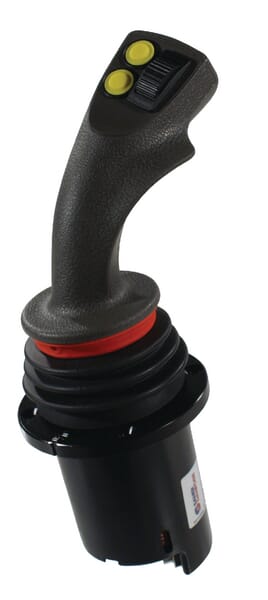

| Long description | The JS1 heavy duty joysticks (JS1-H) and associated handles meet the needs of the demanding conditions typically found in mobile installations. The available handles offer a high degree of protection against chemicals, shock, vibrations and EMC exposure. Danfoss joysticks are suitable for both inside and outside the cab and feature ergonomic shapes that minimise operator fatigue. |
| Master model code | JS1H-XY-PSH-S-NNN-TPR2-L-P1A-NNN-Y1A-Y1A-Y1A-Y1A-NNN-NNN-NNN-NNN-NNN-NNN-BRTN-NN |
| Neutral position switch | n/a |
| Number of actuation directions | 4 |
| Number of proportional functions | 6 |
| Number of push buttons | 4 |
| Number of rocker switches | 0 |
| Number of Rollers | 1 |
| Output signal type | Analogue |
| Product details | Supply voltages: U (DC) 9-36 VDC, Current consumption PVE : max. 150mA, Current consumption base : max. 120mA, Current consumption neutral position switch : max 3A, voltage: U(S) 0,25-0,75 from U (DC), Enclosure: Below flange IP21, standard IP65, with roller IP40, Max. direction switch load for all prop. Functions: 30 V (DC) 2 mA, J1939 and CANopen protocols |
| Pros | The leathery grained surface allows the palm to breathe, Professional joystick for intensive use, Hall effect with two sensors per axis or position detection with long-life potentiometer, Ergonomic handle design |
| Rated max. operation current | 150 mA |
| Unit | Each |
| Version | Lefthand, Left hand |
| Voltage range | 9-36 V |
| Voltage type | DC |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1582 g |
| Dimensions | 1 × 1 × 1 mm |
| Dangerous goods | No |
You might also like
BPA000246585

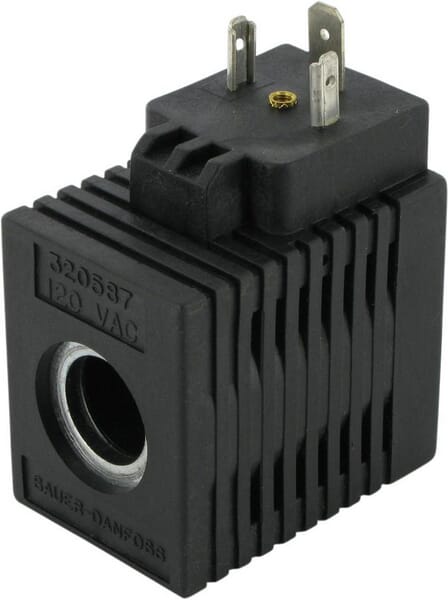

Danfoss Coil 110 AC series 10,12,16,20 CP950110
£85.10 excl.
£102.12 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000341747
Danfoss Assembly set PVAS M8 577-588mm-3x614mm PVG25611188196
£159.79 excl.
£191.75 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000246602
Danfoss Coil 24V DC 16W CP95824
£33.46 excl.
£40.15 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000363072

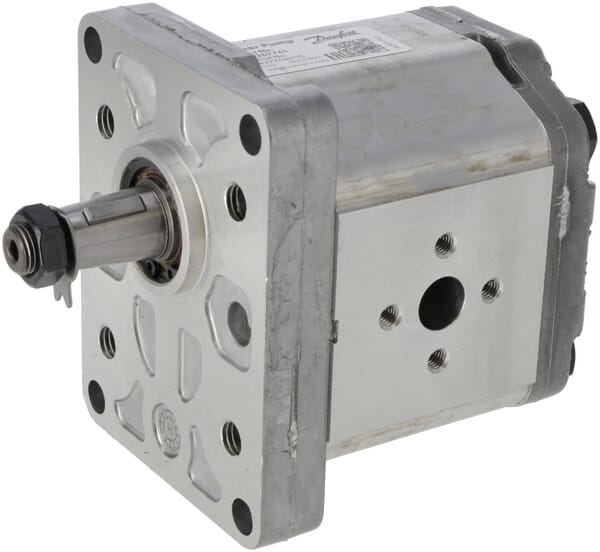

Danfoss Pump SKP2-4,0RE10T80-C3C3P10 SKP2NN4RE10T80
£295.74 excl.
£354.89 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000398270

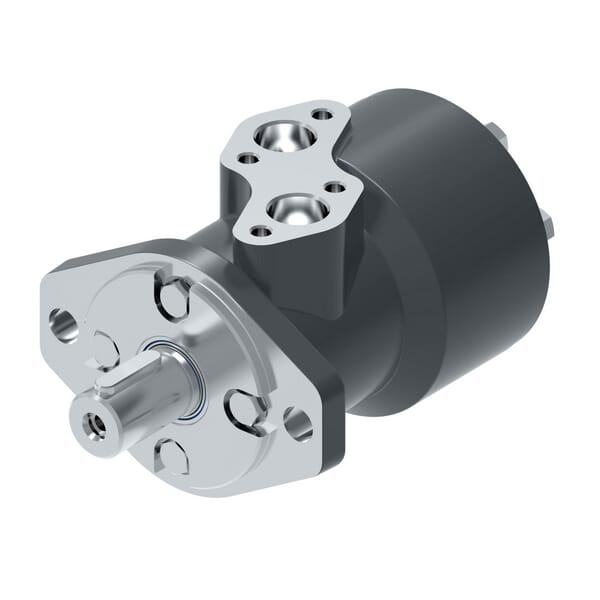

Danfoss Orbital motor 245 cc Danfoss Xcel XLH XLH2450160550
£171.64 excl.
£205.97 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000331565

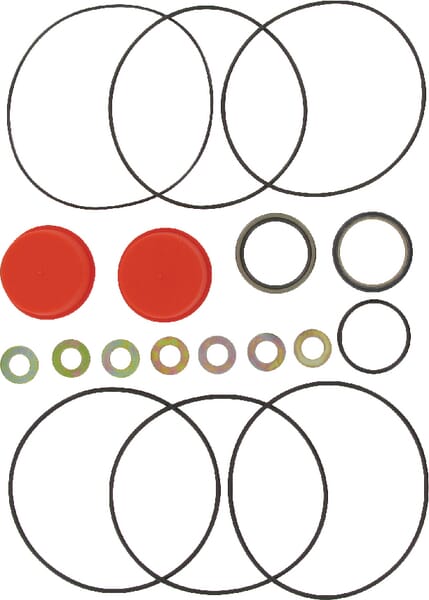

Danfoss Seal kit OSPB/C 150N4040 OSPB9AFD
