£2,201.01
excl. VAT
£2,641.21 incl. VAT
£2,641.21
incl. VAT
£2,201.01 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Attachment machine side | Shear bolt clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | KB61/20 |
| Connection outside diameter machine side inch and splines | 1.3/4-6 |
| Connection outside diameter tractor side inch and splines | 1.3/4-20 |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint bush diameter by tractor side - longer part | 32 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by tractor side | 89 mm |
| Cross joint length by tractor side - longer part | 106 mm |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4GA |
| Length | 1210 mm |
| Locking type by machine side | Clamp bolt (interfering) |
| Locking type by tractor side | Automatic collar lock |
| Max. clutch torque | 2920 N·m |
| Max static torque | 6000 N·m |
| Original number equivalent | 1146503 |
| Outer tube large outside diameter | 61 mm |
| Outer tube profile | S5 |
| Outer tube wall thickness | 4.5 mm |
| Power 1000 rpm | 117 kW |
| Power 540 rpm | 76 kW |
| Profile tube shape | Star |
| Protection type | PG25 |
| Size code | PWE 580 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 27000 g |
| Dimensions | 1410 × 180 × 180 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000342462
Walterscheid Wide angle PTO shaft PWE580 L:1210mm with shearbolt clutch PWE58012105713118
£2,034.83 excl.
£2,441.80 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000084638

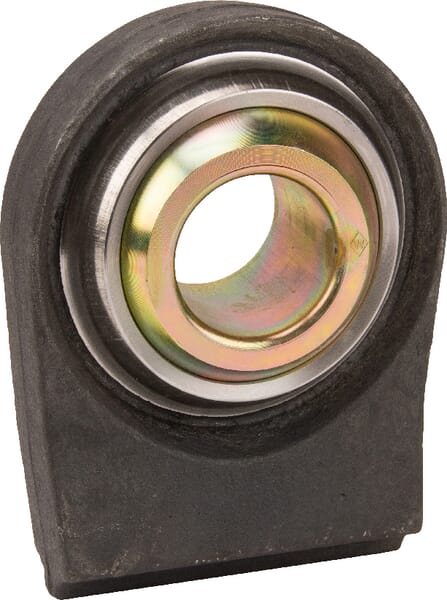

Walterscheid Ball end category 4 Hole diameter 45mm ball width 57mm 309303
£256.06 excl.
£307.27 incl.
In stock
Expected to ship on Friday 18 September
BPA000024049

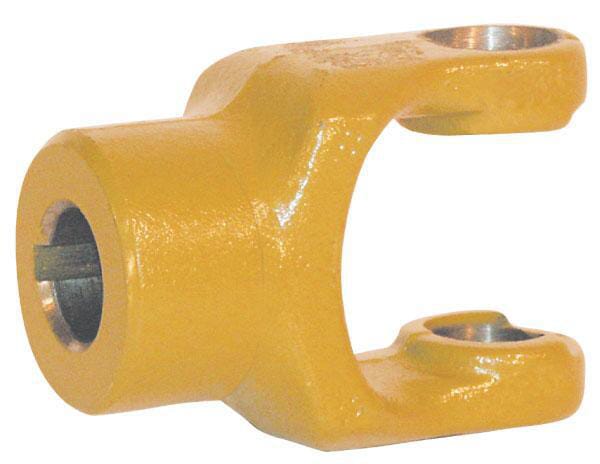

Walterscheid Yoke, bore 20mm, keyway 6mm, W2100/W100E 102227
£84.97 excl.
£101.96 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000146898

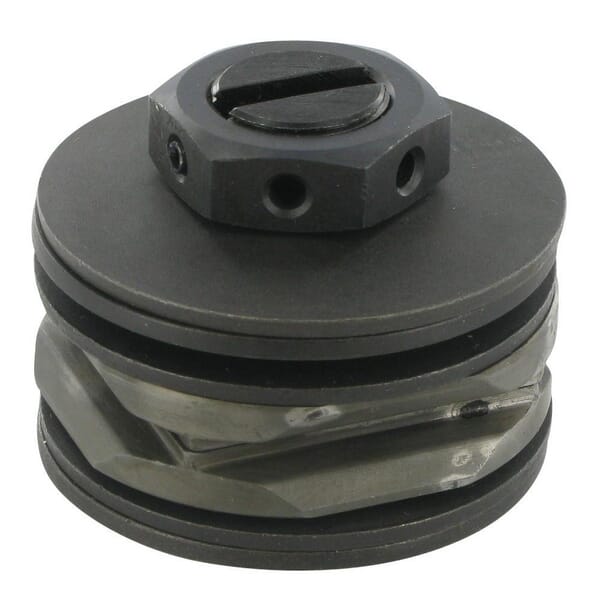

Walterscheid Spring set K64/24 380daNm 592700380
£146.80 excl.
£176.16 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000056484

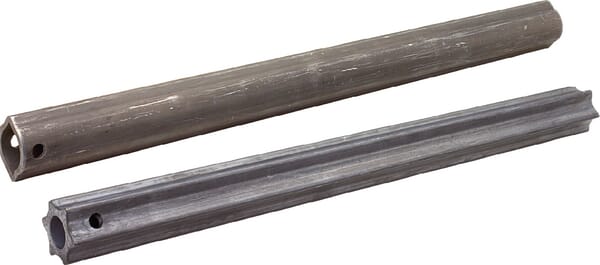

Walterscheid Profile 1697200
