Product details
| Application range | Mixing wagon, Slurry wagon, Harvesters, Silage wagon |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Consists of | Wide angle pto-shaft, 1 sided, with guard tube, Declaration of conformity, Instruction manual, Delivery without yokes, Delivery without cross journal on the wide-angle side |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint bush diameter by tractor side - longer part | 27 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Cross joint length by tractor side - longer part | 94 mm |
| Inner tube profile | S4LGA |
| Length | 1210 mm |
| Long description | Wide-angle PTO shafts 80° series WWE 2480 suitable for feed mixers, fertiliser machines, harvesters, loader wagons etc. |
| Max static torque | 3800 N·m |
| Original number equivalent | 1800112 |
| Outer tube profile | S5 |

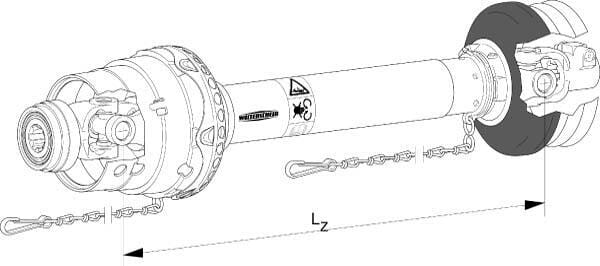

| Product details | PTO shaft 1-sided wide-angle with safety guard, Declaration of conformity, User instructions, Lubricating interval of 8 hours, Meets the requirements according to EC 89/392 EEC, Meets safety standard EN12965, Provided with "CE" marking, Angle in continuous use maximum 25°, Angle may be 80° only briefly, Max. dyn. power 540 rpm: 39kW - 695Nm, Max. dyn. power 1000 rpm: 61kW - 580Nm, Values at bending angle 10° and service life 1000 hours, LZ= Retracted length in mm, from cross to cross |
| Properties | Lubrication interval: 8 hours, Fulfils EC 89/392 EEC requirements, Complies with EN12965 safety standard, CE marking available |
| Pros | PTO shaft 1-sided wide-angle with safety guard, Declaration of conformity, User instructions, Supplied without yokes, Supplied without cross piece on wide-angle side |
| Protection type | SD25 |
| Size code | WWE 2480 |
| Technical info | Working angle with continuous use maximum 25º, Working angle may only reach 80º briefly, Max. dynamic capacity 540 rpm - 39 kW - 695 Nm, Max. dynamic capacity 1000 rpm - 61 kW - 580 Nm, Values at working angle 10° and service life 1000 hours, LZ = slid-in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 29000 g |
| Dimensions | 1300 × 240 × 220 mm |
| Dangerous goods | No |
You might also like
Free shipping

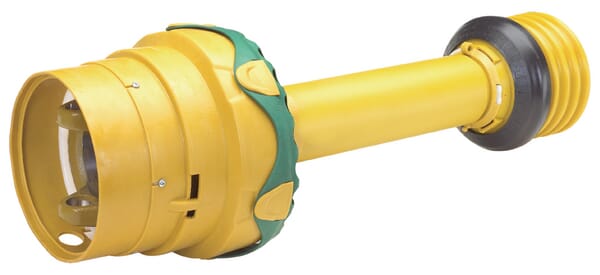

BPA000400113
Walterscheid Wide angle PTO shaft without yokes WWE 2480 L: 1210mm, WWE24801210OG
£714.88 excl.
£857.86 incl.
In stock
Expected to ship on Monday 21 September

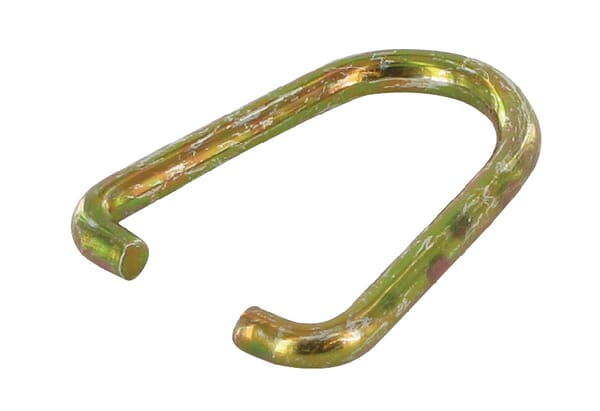

BPA000084611
Walterscheid Clamp 309098
£10.24 excl.
£12.29 incl.
In stock
Expected to ship on Friday 18 September

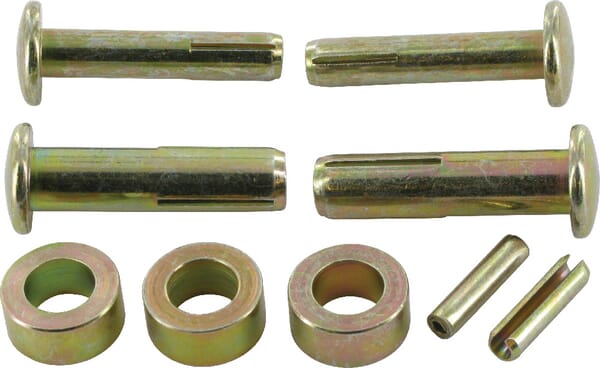

BPA000244786
