£902.37
excl. VAT
£1,082.84 incl. VAT
£1,082.84
incl. VAT
£902.37 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Slurry tank, Crop sprayers, Fertiliser spreader, Hay press |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Wide angle pto-shaft, 1 sided, with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint bush diameter by tractor side - longer part | 24 mm |
| Cross joint length by machine side | 75 mm |
| Cross joint length by tractor side | 75 mm |
| Cross joint length by tractor side - longer part | 91 mm |
| Inner tube large outside diameter | 40 mm |
| Inner tube profile | OvGA |
| Inner tube wall thickness | 4 mm |
| Length | 1210 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Long description | Wide-angle PTO shafts 80° series WWE 2380 |
| Max static torque | 2500 N·m |
| Original number equivalent | 1800094 |
| Outer tube large outside diameter | 48 mm |
| Outer tube profile | 1G |
| Outer tube wall thickness | 2.7 mm |
| Power 1000 rpm | 44 kW |
| Power 540 rpm | 28 kW |

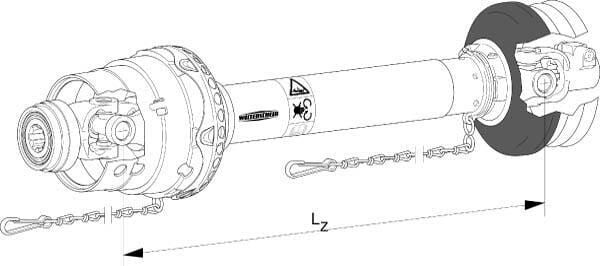

| Product details | PTO shaft 1-sided wide-angle with safety guard, Declaration of conformity, User instructions, Tractor side 1-3/8" (6) collar fastening, Machine side 1-3/8" (6) spring pin, Lubricating interval of 8 hours, Meets the requirements according to EC 89/392 EEC, Meets safety standard EN12965, Provided with "CE" marking, Angle in continuous use maximum 25°, Angle may be 80° only briefly, Max. dyn. power 540 rpm: 28kW - 500Nm, Max. dyn. power 1000 rpm: 44kW - 415Nm, Values at bending angle 10° and service life 1000 hours, LZ= Retracted length c.t.c. outer cross |
| Profile tube shape | Lemon |
| Properties | Tractor side 1-3/8" (6) shaft collar kit, Device side 1-3/8" (6) slide pin, Lubrication interval: 8 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | ST15 |
| Size code | WWE 2380 |
| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 28 kW, 500 Nm, Max. dynamic capacity 1000 rpm: 44 kW, 415 Nm, Values at working angle 10° and service life 1000 hours, LZ = slid in length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 19200 g |
| Dimensions | 1400 × 200 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping

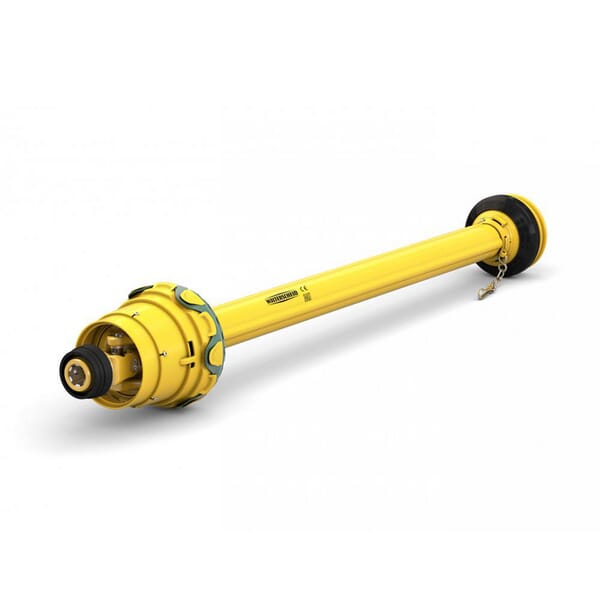

BPA000400104
Walterscheid Wide angle PTO shaft WWE 2380 L: 1210mm, WWE23801210SD25
£941.94 excl.
£1,130.33 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

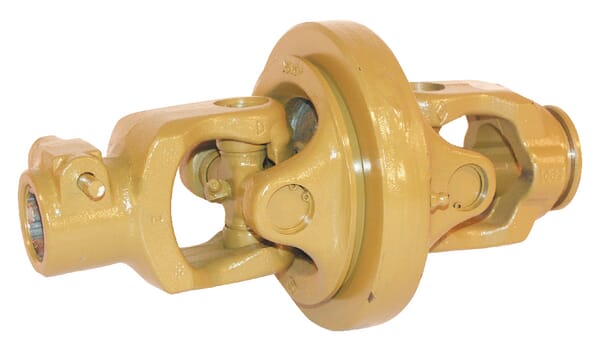

BPA000067161
Walterscheid Wide-angle cv joint 80° 21108102112810
£648.58 excl.
£778.30 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000146633
Walterscheid Cam clutch K64/22R 5911643165
£1,369.74 excl.
£1,643.69 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

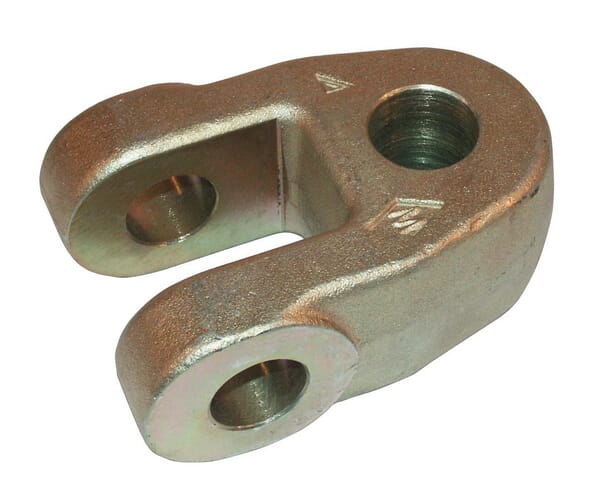

BPA000084623
Walterscheid Fork head 28.2x100mm 309143
£171.15 excl.
£205.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000067303
Walterscheid Yoke, bore 25mm, keyway 8mm, W2300/P300/W300E 211511
£163.11 excl.
£195.73 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

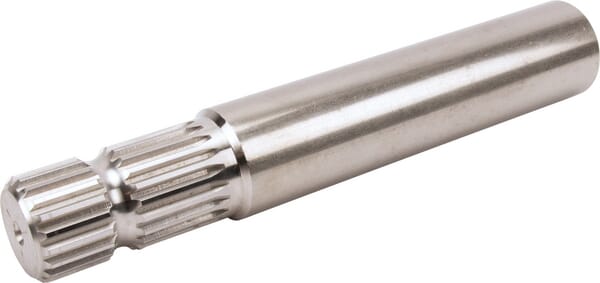

BPA000025857
