£941.94
excl. VAT
£1,130.33 incl. VAT
£1,130.33
incl. VAT
£941.94 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Slurry tank, Crop sprayers, Fertiliser spreader, Hay press |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Wide angle pto-shaft, 1 sided, with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint bush diameter by tractor side - longer part | 24 mm |
| Cross joint length by machine side | 75 mm |
| Cross joint length by tractor side | 75 mm |
| Cross joint length by tractor side - longer part | 91 mm |
| Inner tube large outside diameter | 49 mm |
| Inner tube profile | 1bGA |
| Inner tube wall thickness | 4.5 mm |
| Length | 1210 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |

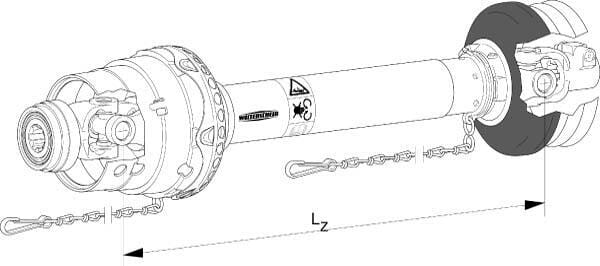

| Long description | Wide-angle PTO shafts 80° series WWE 2380 |
| Max static torque | 2500 N·m |
| Original number equivalent | 1800096 |
| Outer tube large outside diameter | 57.5 mm |
| Outer tube profile | 2aG |
| Outer tube wall thickness | 3.5 mm |
| Power 1000 rpm | 44 kW |
| Power 540 rpm | 28 kW |
| Product details | PTO shaft 1-sided wide-angle with safety guard, Declaration of conformity, User instructions, Tractor side 1-3/8" (6) collar fastening, Machine side 1-3/8" (6) spring pin, Lubricating interval of 8 hours, Meets the requirements according to EC 89/392 EEC, Meets safety standard EN12965, Provided with "CE" marking, Angle in continuous use maximum 25°, Angle may be 80° only briefly, Max. dyn. power 540 rpm: 28kW - 500Nm, Max. dyn. power 1000 rpm: 44kW - 415Nm, Values at bending angle 10° and service life 1000 hours, LZ= Retracted length c.t.c. outer cross |
| Profile tube shape | Lemon |
| Properties | Tractor side 1-3/8" (6) shaft collar kit, Device side 1-3/8" (6) slide pin, Lubrication interval: 8 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | ST25 |
| Size code | WWE 2380 |
| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 28 kW, 500 Nm, Max. dynamic capacity 1000 rpm: 44 kW, 415 Nm, Values at working angle 10° and service life 1000 hours, LZ = slid in length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 22000 g |
| Dimensions | 1401 × 280 × 280 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000400101
Walterscheid Wide angle PTO shaft WWE 2380 L: 1210mm, WWE23801210
£902.37 excl.
£1,082.84 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

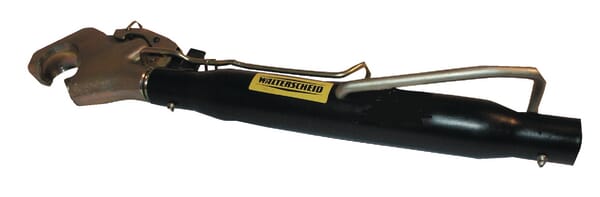

BPA000084710
Walterscheid Toplink eye/hook 370, M30 cat.2/2 309956
£383.21 excl.
£459.85 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000067163
Walterscheid Yoke, Clamp bolt, 1-3/8"-6 spline, W2380 2110814
£251.73 excl.
£302.08 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000342530
Walterscheid Wide angle PTO shaft PWZ58013605910653
£3,626.94 excl.
£4,352.33 incl.
Backorder available
Usually ships within 3–8 weeks

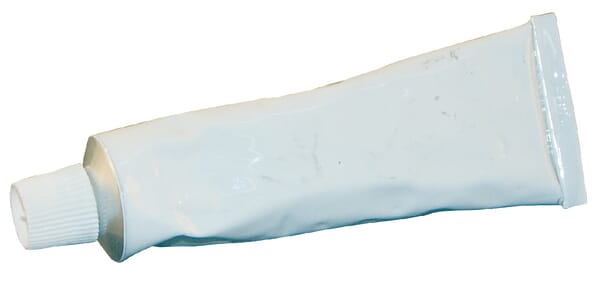

BPA000226129
Walterscheid Special grease 100 grams AG116
£77.38 excl.
£92.86 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

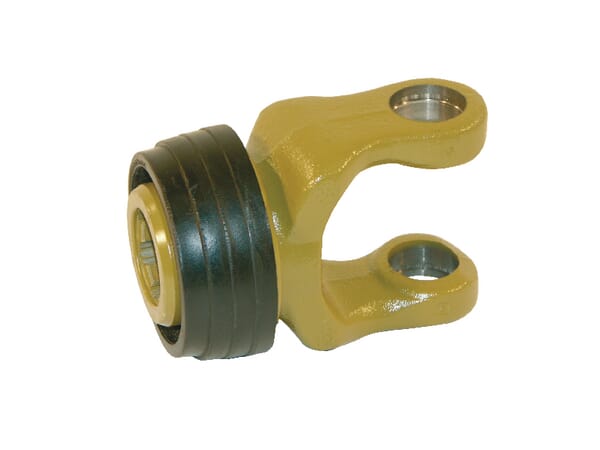

BPA000066840
