SKU BPA000400121 · Part No WWE25801010

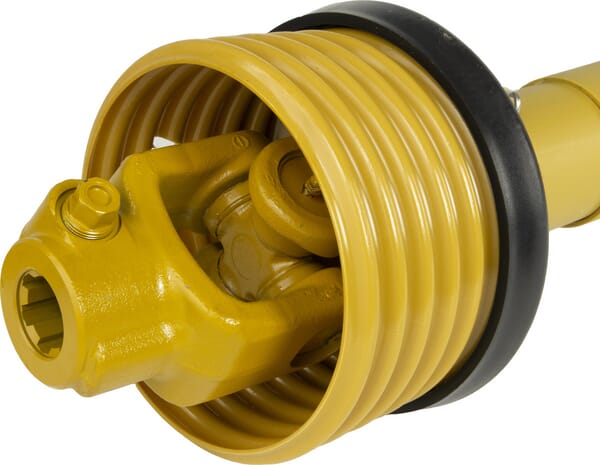

Walterscheid Wide angle PTO shaft WWE 2580 L: 1010mm, WWE25801010

Name: Wide angle PTO shaft WWE 2580 L: 1010mm, Walterscheid
Brand: Walterscheid
SKU: BPA000400121
Price: 1564.32 GBP
Availability: InStock

Application range	Broad spreader, Slurry wagon, Big baler, Silage wagon
Attachment machine side	Clamp yoke
Attachment tractor side	Quick disconnect yoke
Clutch type code	n/a
Connection outside diameter machine side inch and splines	1.3/8-6
Connection outside diameter tractor side inch and splines	1.3/8-6
Consists of	Wide angle pto-shaft, 1 sided, with guard tube, Declaration of conformity, Instruction manual
Cross joint bush diameter by machine side	36 mm
Cross joint bush diameter by tractor side	36 mm
Cross joint bush diameter by tractor side - longer part	32 mm
Cross joint length by machine side	89 mm
Cross joint length by tractor side	89 mm
Cross joint length by tractor side - longer part	106 mm
Extra info	Yoke 361030 with clamp cone on machine side.
Inner tube large outside diameter	51 mm
Inner tube profile	S4GA
Length	1010 mm
Locking type by machine side	Clamp cone
Locking type by tractor side	Automatic collar lock
Long description	Wide-angle coupling shafts 80° series WWE 2580, 1-sided wide-angle with safety guard and declaration of conformity, and user instructions suitable for wide spreaders, fertiliser machines,, big balers, silage wagons, etc.
Max static torque	6000 N·m
Original number equivalent	1610151
Outer tube large outside diameter	61 mm
Outer tube profile	S5
Outer tube wall thickness	4.5 mm
Power 1000 rpm	102 kW
Power 540 rpm	66 kW
Product details	PTO shaft 1-sided wide-angle with safety guard, Declaration of conformity, User instructions, Lubricating interval of 8 hours, Meets the requirements according to EC 89/392 EEC, Meets safety standard EN12965, Provided with "CE" marking, Angle in continuous use maximum 25º, Angle may be 80º only briefly, Max. dyn. power 540 rpm: 66kW - 1175Nm, Max. dyn. power 1000 rpm: 102kW - 975Nm, Values at bending angle 10° and service life 1000 hours, LZ= Retracted length c.t.c. outer cross
Profile tube shape	Star
Properties	Tractor side: shaft collar kit, Device side: slide pin, Lubrication interval: 8 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available
Protection type	SD25
Size code	WWE 2580

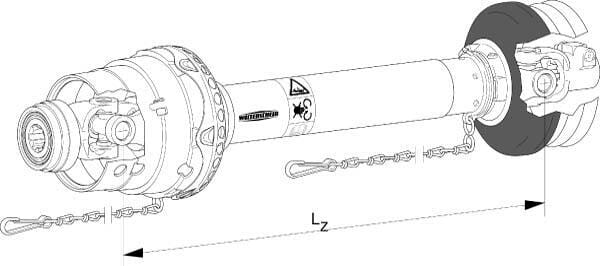

Technical info	Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at working angle 10° and service life 1000 hours, LZ = slid in length centre distance of outer intersection
Unit	Each

EAN	—
Unit of measure	EA
Weight	33100 g
Dimensions	195 × 195 × 1240 mm
Dangerous goods	No
