£1,262.64
excl. VAT
£1,515.16 incl. VAT
£1,515.16
incl. VAT
£1,262.64 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Broad spreader, Slurry wagon, Big baler, Silage wagon |
|---|---|
| Attachment machine side | Clamp yoke |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/4-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Wide angle pto-shaft, 1 sided, with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint bush diameter by tractor side - longer part | 32 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by tractor side | 89 mm |
| Cross joint length by tractor side - longer part | 106 mm |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4GA |
| Length | 1210 mm |
| Locking type by machine side | Clamp cone |
| Locking type by tractor side | Automatic collar lock |
| Long description | Wide-angle coupling shafts 80° series WWE 2580, 1-sided wide-angle with safety guard and declaration of conformity, and user instructions suitable for wide spreaders, fertiliser machines,, big balers, silage wagons, etc. |
| Max static torque | 6000 N·m |
| Original number equivalent | 1800103 |
| Outer tube large outside diameter | 61 mm |
| Outer tube profile | S5 |
| Outer tube wall thickness | 4.5 mm |
| Power 1000 rpm | 102 kW |
| Power 540 rpm | 66 kW |

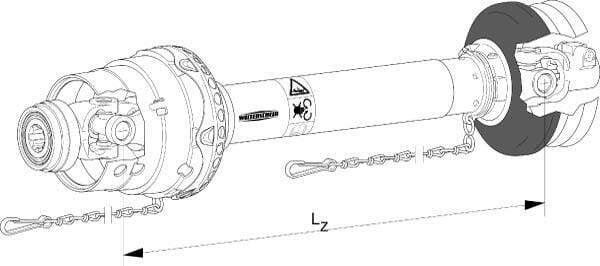

| Product details | PTO shaft 1-sided wide-angle with safety guard, Declaration of conformity, User instructions, Lubricating interval of 8 hours, Meets the requirements according to EC 89/392 EEC, Meets safety standard EN12965, Provided with "CE" marking, Angle in continuous use maximum 25º, Angle may be 80º only briefly, Max. dyn. power 540 rpm: 66kW - 1175Nm, Max. dyn. power 1000 rpm: 102kW - 975Nm, Values at bending angle 10° and service life 1000 hours, LZ= Retracted length c.t.c. outer cross |
| Profile tube shape | Star |
| Properties | Tractor side: shaft collar kit, Device side: slide pin, Lubrication interval: 8 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | ST25 |
| Size code | WWE 2580 |
| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at working angle 10° and service life 1000 hours, LZ = slid in length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 37300 g |
| Dimensions | 1500 × 220 × 220 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000400122

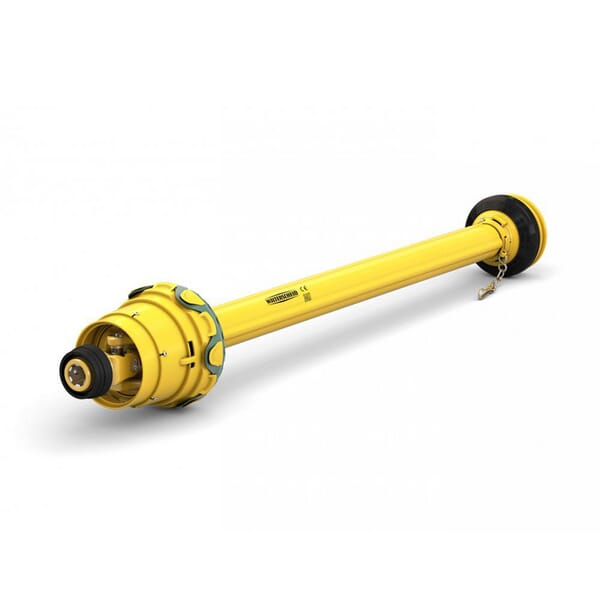

Walterscheid Wide angle PTO shaft WWE 2580 L: 1210mm, WWE25801210
£1,419.53 excl.
£1,703.44 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000040843
Walterscheid Hollow screw 1201906
£10.56 excl.
£12.67 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000034740

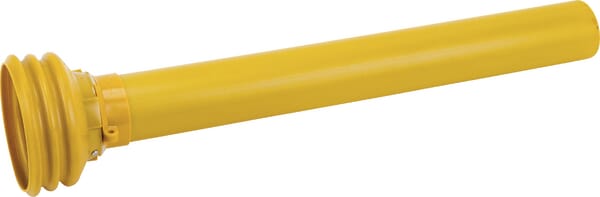

Walterscheid PTO outer half guard, L: 550mm 1183575
