£1,072.93
excl. VAT
£1,287.52 incl. VAT
£1,287.52
incl. VAT
£1,072.93 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Slurry tank, Crop sprayers, Drawn hay processing machine |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |

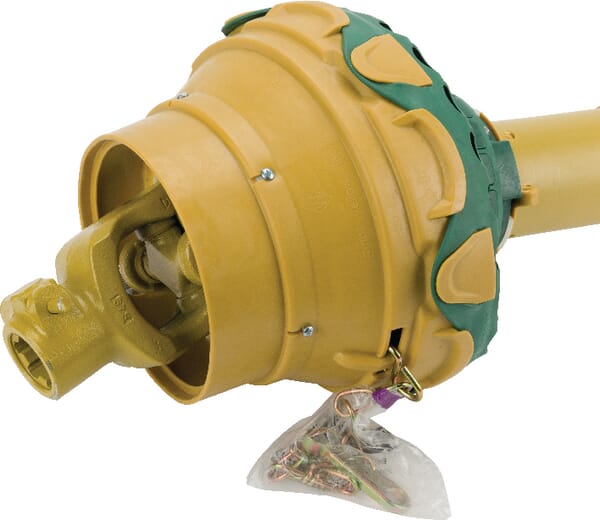

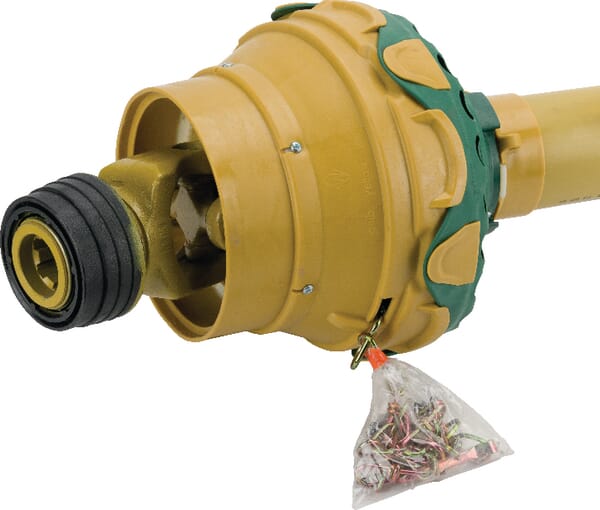

| Consists of | Wide angle pto-shaft, 2 sided, with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 24 mm |
| Cross joint bush diameter by machine side - longer part | 22 mm |
| Cross joint bush diameter by tractor side | 24 mm |
| Cross joint bush diameter by tractor side - longer part | 22 mm |
| Cross joint length by machine side | 61 mm |
| Cross joint length by machine side - longer part | 76 mm |
| Cross joint length by tractor side | 61 mm |
| Cross joint length by tractor side - longer part | 76 mm |
| Inner tube large outside diameter | 40 mm |
| Inner tube profile | OvGA |
| Inner tube wall thickness | 4 mm |
| Length | 1010 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Long description | Wide-angle CV PTO drive shafts complete 80° series WWZ 2280 / 80° |
| Max static torque | 1850 N·m |
| Original number equivalent | 1610160 |
| Outer tube large outside diameter | 48 mm |
| Outer tube profile | 1G |
| Outer tube wall thickness | 2.7 mm |
| Power 1000 rpm | 31 kW |
| Power 540 rpm | 20 kW |
| Profile tube shape | Lemon |
| Properties | Tractor side 1-3/8" (6) shaft collar kit, Device side 1-3/8" (6) slide pin, Lubrication interval: 8 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | ST15 |
| Size code | WWZ 2280 |

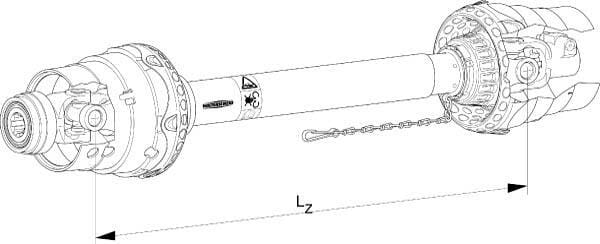

| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 20 kW, 335 Nm, Max. dynamic capacity 1000 rpm: 31 kW, 295 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid in length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 18400 g |
| Dimensions | 1190 × 185 × 185 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000143079
Walterscheid Clutch K96/4 2500 1 3/8-6 CC 5613651210
£1,118.91 excl.
£1,342.69 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000147327

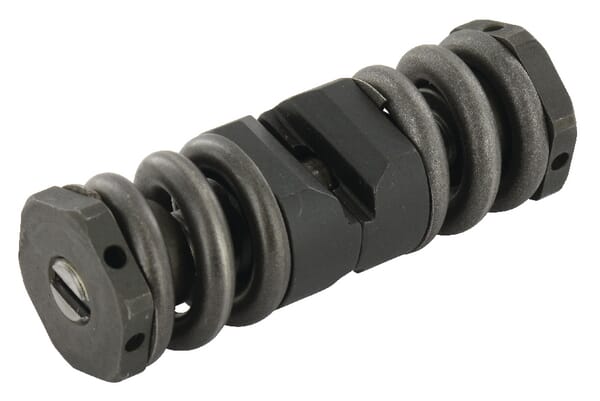

Walterscheid Spring set K64/1 80 daNM 59450080
£200.52 excl.
£240.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000035099
Walterscheid Profile 1148054
£583.83 excl.
£700.60 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000077789
Walterscheid Cross Journal diameter 36x104mm / diameter 42x124mm P675 260601
£245.44 excl.
£294.53 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000140220
Walterscheid Radial pin clutch W2200-K31B. 551940330
£280.23 excl.
£336.28 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000178199

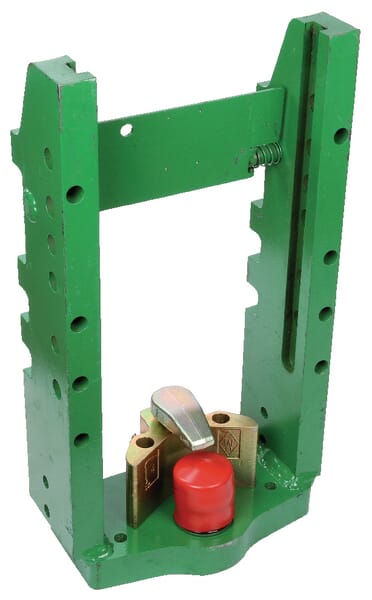

Walterscheid Ladder hitch KU344KK 329mm 8002740
