£332.30
excl. VAT
£398.76 incl. VAT
£398.76
incl. VAT
£332.30 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Rotary tillers, Shredders, Wood shredders, Stump grinders |
|---|---|
| Benefits | Assembly with no play, Clamping pin is not loaded for stretching |
| Consists of | Fork, Conical clamping pin |
| Details | Conical pin provides effective clamping effect, Housing without slot |
| Inside connection diamter inch and splines | 1.3/4-20 |
| Length | 112 mm |
| Locking system | Clamp cone |
| Long description | Yokes with CC closure (clamp cone) series W / Power Drive |
| Original number equivalent | 1195022 |
| Outside connection diameter | 15.8 mm |
| Product details | Do not use yoke on tractor side with machines produced after 2005 according to safety standard EN12965, Conical screw ensures good hold, Housing without saw cut |
| Properties | Clamp cone bolt |
| Pros | Slack-free installation, Clamp bolt is not stretched under load |
| Shaft size code | W2400, P400, W400E |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 |
| Type | Clamp bolt |
| Unit | Each |
Logistics
| EAN | 8435194187206 |
|---|---|
| Unit of measure | EA |
| Weight | 1922 g |
| Dimensions | 145 × 100 × 100 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000084572
Walterscheid Fork rod M30 308481
£210.97 excl.
£253.16 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000400877

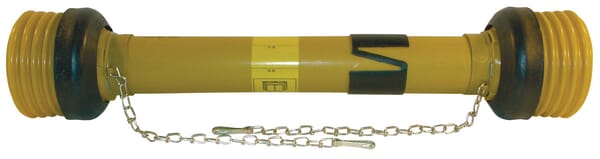

Walterscheid PTO shaft without yokes W2600 L: 860mm, W2600860OG
£1,033.26 excl.
£1,239.91 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000084713

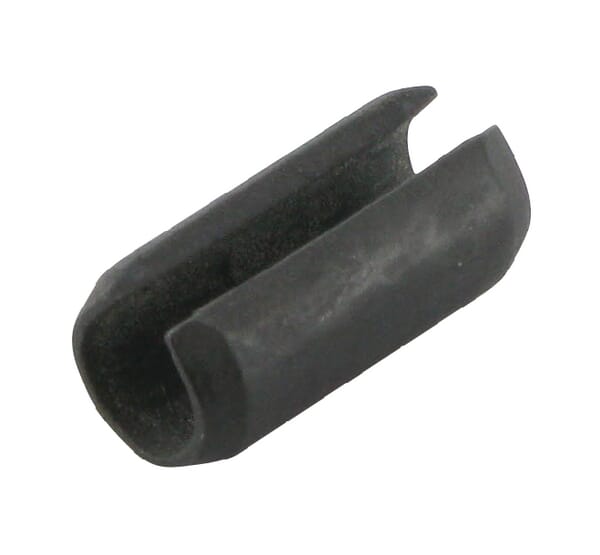

Walterscheid Roll pin 8x8mm DIN1481 309988
£2.53 excl.
£3.04 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000084311
Walterscheid Seal cat.2 306068
£136.47 excl.
£163.76 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000040540
Walterscheid Key 1197003
£18.58 excl.
£22.30 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000146528

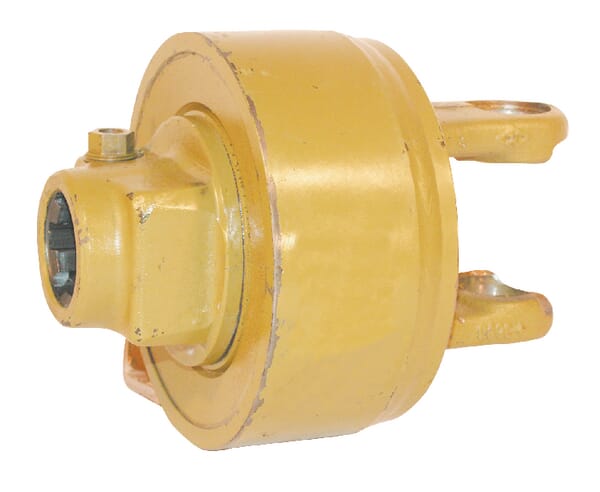

Walterscheid Cam clutch K64/24R 5910644270
