£94.34
excl. VAT
£113.21 incl. VAT
£113.21
incl. VAT
£94.34 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Adjustable pressure range | 50-220 BAR |
|---|---|
| Adjustment type | Socket screw |
| Cartridge length | 60 mm |
| Connection 2, thread diameter | 3/4 Inch |
| Connection thread diameter | 3/8 Inch |

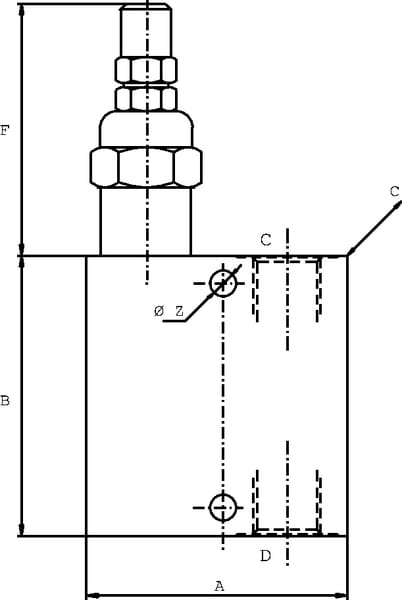

| Housing height | 70 mm |
| Housing length | 80 mm |
| Housing width | 35 mm |
| Includes | Steel housing, Directly controlled pressure relief valve (VMP), Bypass check valve for free return |
| Long description | A direct-controlled sequence valve, also known as a pre-tank valve, is a valve that will open at a preset pressure. These are mainly used in multi-cylinder systems, where the sending in or out has to happen in a certain order. |
| Max. flow rate | 25 l/min |
| Max working pressure | 350 BAR |
| Mounting holes diameter | 6.5 mm |

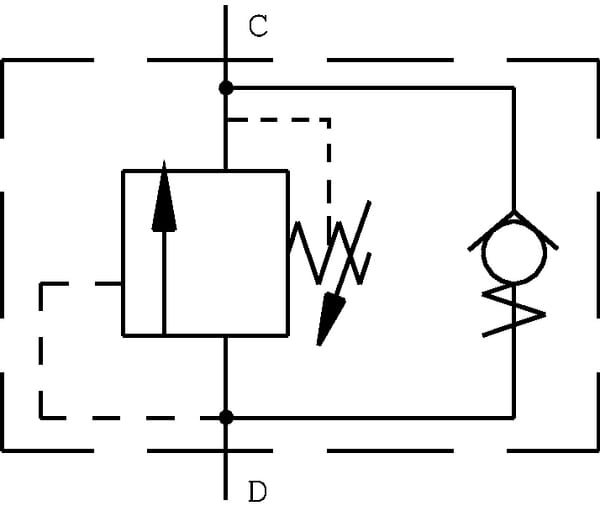

| Product details | High pressure and medium volume flow, For inline mounting, To be used as sequential switching, Version: individual parts in housing, Works from D to C, Free flow from C to D, The pressure setting depends on the load in C, No external leakage connection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1450 g |
| Dimensions | 135 × 80 × 35 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000376643
Walvoil Pressure relief valve Steel VDSRL20001ST
£187.59 excl.
£225.11 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000376641
Walvoil Pressure relief valve Steel VDSRL10001ST
£145.51 excl.
£174.61 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000389039

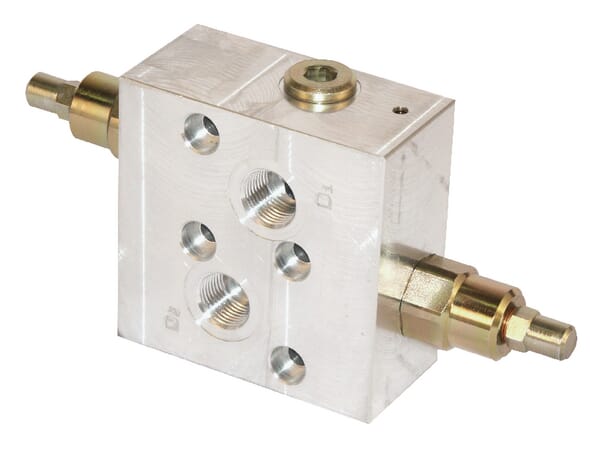

Walvoil Counterbal A-08-OMS-A-4 1/2" VODLSCF10001
£306.14 excl.
£367.37 incl.
In stock
Expected to ship on Friday 18 September
BPA000357342

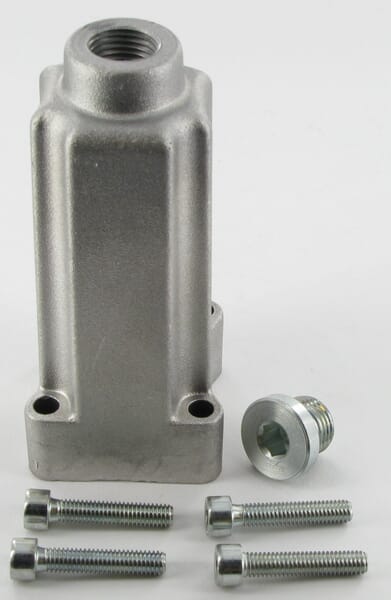

Walvoil Endcap lever SD18 SD918SLP
£16.20 excl.
£19.44 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000357165
Walvoil Control valve SD5/3 3x18ES3/AET 12Vdc SD53007
£433.09 excl.
£519.71 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000357263

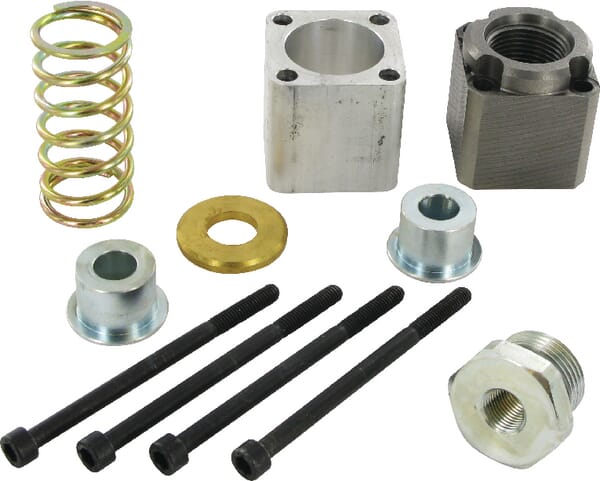

Walvoil Hydraulic actuation. 81A1 SD11/16/150 SD911A81A1
