£187.59
excl. VAT
£225.11 incl. VAT
£225.11
incl. VAT
£187.59 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

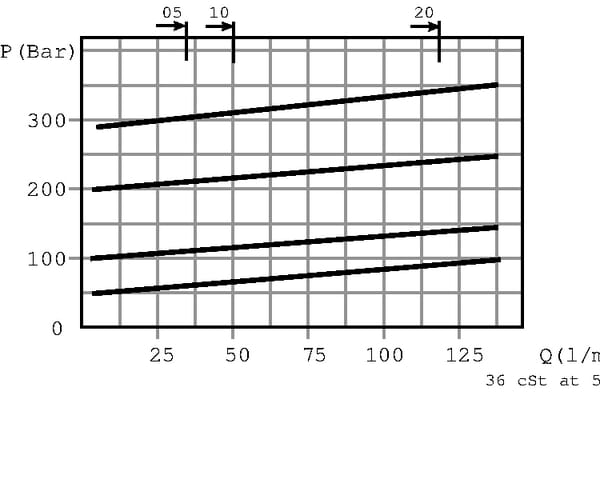

| Adjustable pressure range | 50-220 BAR |
|---|---|
| Adjustment type | Socket screw |
| Cartridge length | 76.5 mm |
| Connection 2, thread diameter | 3/8 Inch |
| Connection thread diameter | 3/4 Inch |

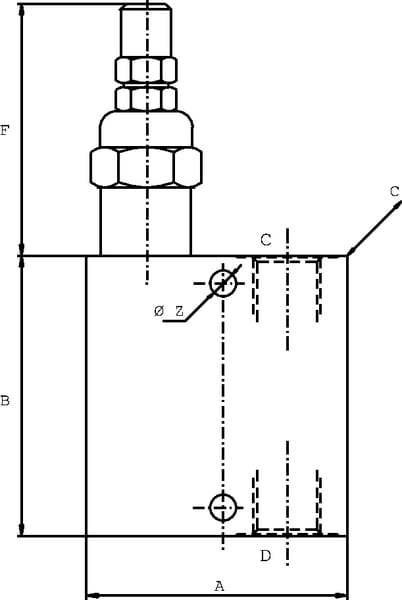

| Housing height | 100 mm |
| Housing length | 110 mm |
| Housing width | 50 mm |
| Includes | Steel housing, Directly controlled pressure relief valve (VMP), Bypass check valve for free return |

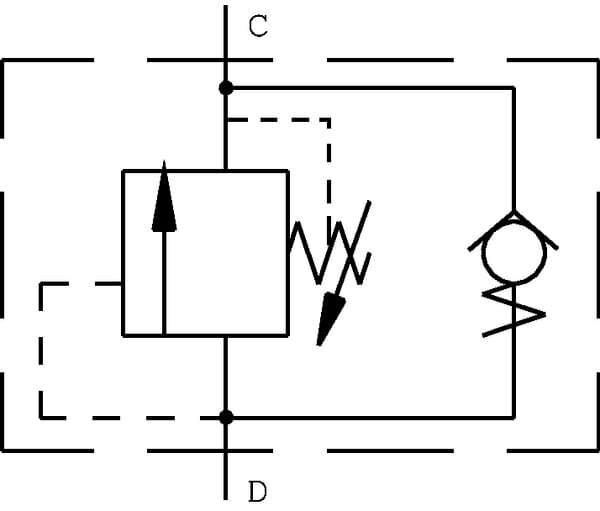

| Long description | A direct-controlled sequence valve, also known as a pre-tank valve, is a valve that will open at a preset pressure. These are mainly used in multi-cylinder systems, where the sending in or out has to happen in a certain order. |
| Max. flow rate | 120 l/min |
| Max working pressure | 350 BAR |
| Mounting holes diameter | 8.5 mm |
| Product details | High pressure and medium volume flow, For inline mounting, To be used as sequential switching, Version: individual parts in housing, Works from D to C, Free flow from C to D, The pressure setting depends on the load in C, No external leakage connection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4037 g |
| Dimensions | 180 × 112 × 48 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000376641

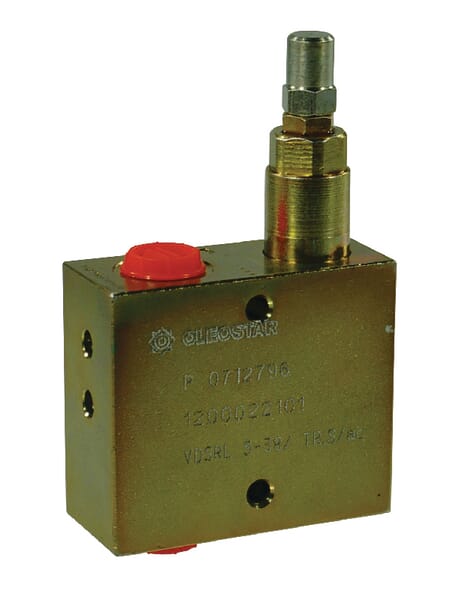

Walvoil Pressure relief valve Steel VDSRL10001ST
£145.51 excl.
£174.61 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000376637
Walvoil Pressure relief valve Steel VDSRL05001ST
£94.34 excl.
£113.21 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000357166

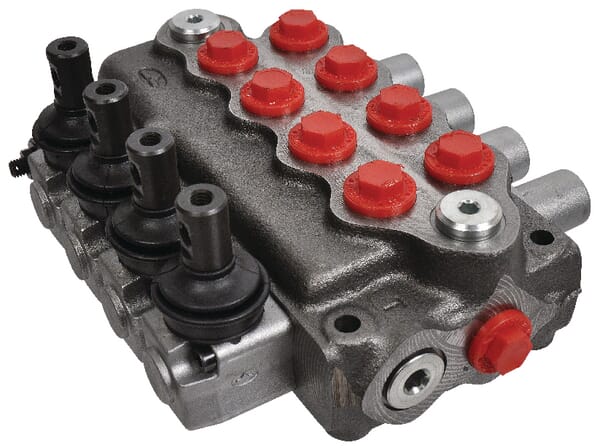

Walvoil Control valve SD5/4-P-4x18L-AET SD54001
