£145.51
excl. VAT
£174.61 incl. VAT
£174.61
incl. VAT
£145.51 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September
Product details

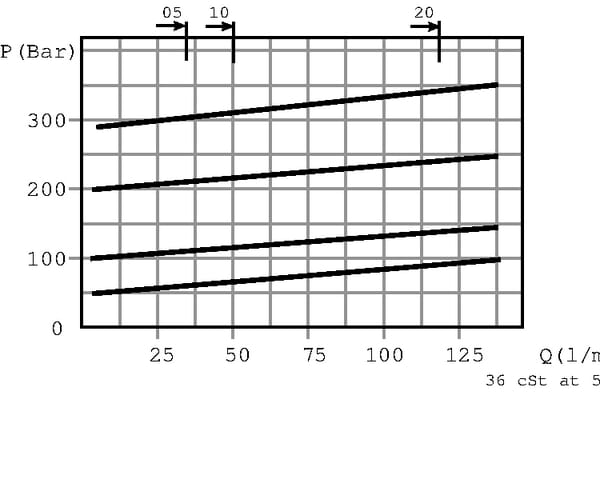

| Adjustable pressure range | 50-220 BAR |
|---|---|
| Adjustment type | Socket screw |
| Cartridge length | 67.7 mm |
| Connection 2, thread diameter | 3/4 Inch |
| Connection thread diameter | 1/2 Inch |

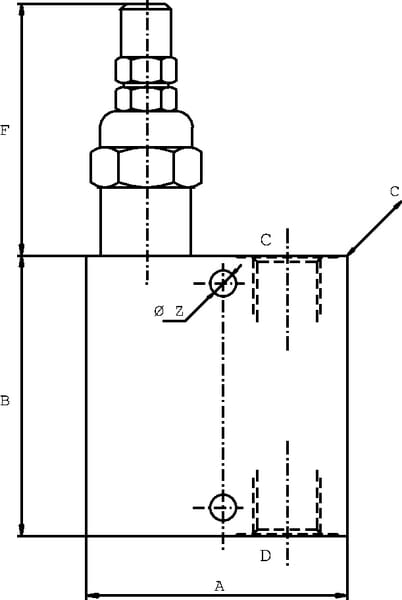

| Housing height | 80 mm |
| Housing length | 90 mm |
| Housing width | 40 mm |
| Includes | Steel housing, Directly controlled pressure relief valve (VMP), Bypass check valve for free return |

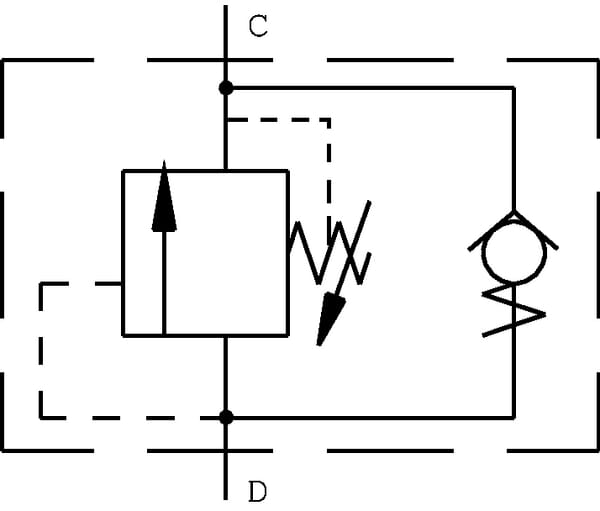

| Long description | A direct-controlled sequence valve, also known as a pre-tank valve, is a valve that will open at a preset pressure. These are mainly used in multi-cylinder systems, where the sending in or out has to happen in a certain order. |
| Max. flow rate | 50 l/min |
| Max working pressure | 350 BAR |
| Mounting holes diameter | 8.5 mm |
| Product details | High pressure and medium volume flow, For inline mounting, To be used as sequential switching, Version: individual parts in housing, Works from D to C, Free flow from C to D, The pressure setting depends on the load in C, No external leakage connection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2130 g |
| Dimensions | 155 × 98 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000376637
Walvoil Pressure relief valve Steel VDSRL05001ST
£94.34 excl.
£113.21 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000376643

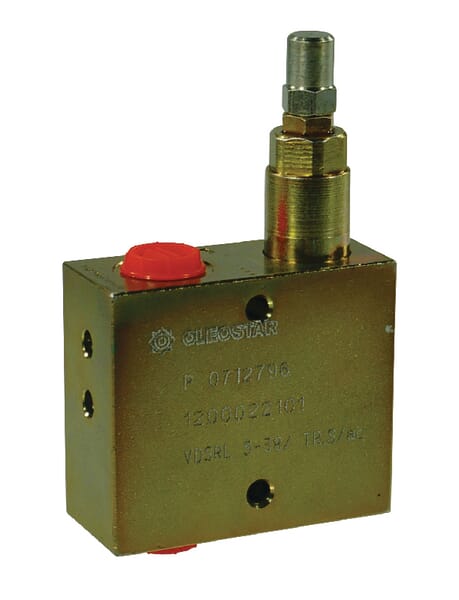

Walvoil Pressure relief valve Steel VDSRL20001ST
£187.59 excl.
£225.11 incl.
In stock
Expected to ship on Thursday 17 September
BPA000376635

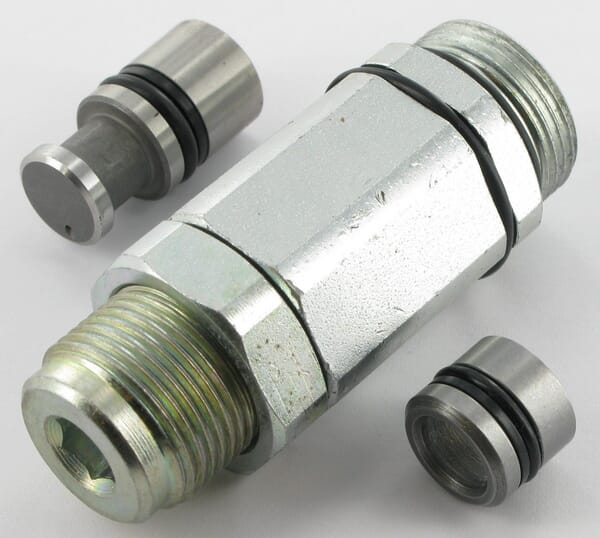

Walvoil Sequence valve cartridge, VDSD/B-38/TS VDSDB938
£78.68 excl.
£94.42 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000357589

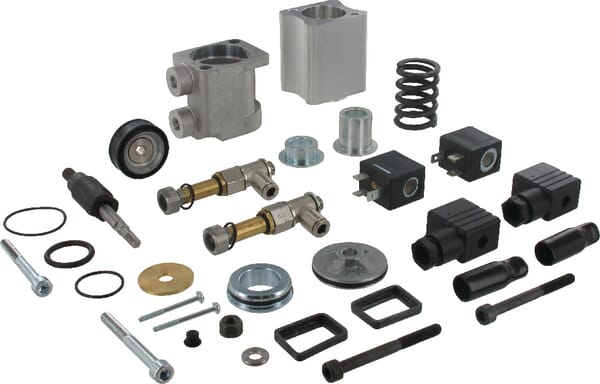

Walvoil SDS150 elec/pneum. contr. SDS9150A8EP324V
£347.12 excl.
£416.54 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000357391

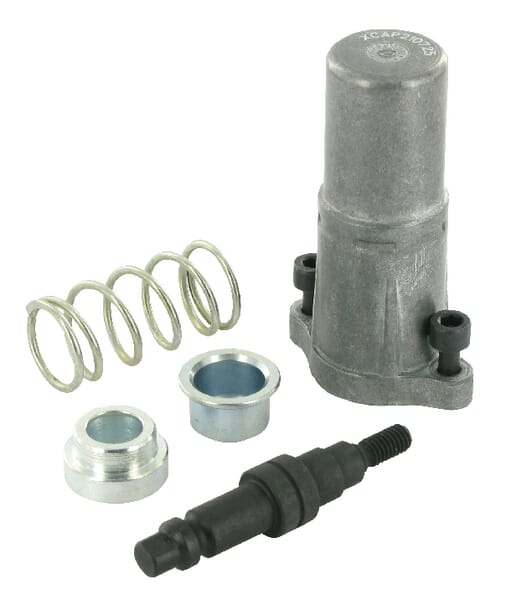

Walvoil Stopper 9 for SD 5 piston SD95A9P4
£48.60 excl.
£58.32 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000247214

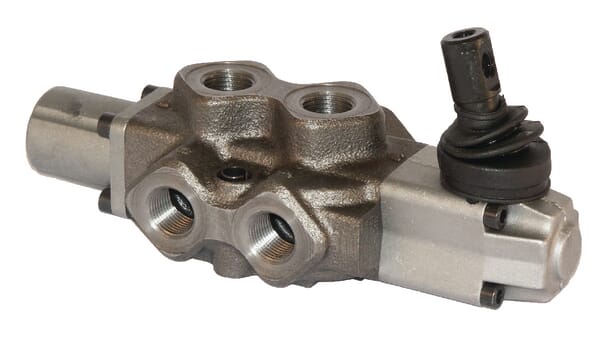

Walvoil Valve 6-way 6A-12L 1/2 BSP DF106001
