£332.78
excl. VAT
£399.34 incl. VAT
£399.34
incl. VAT
£332.78 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Adjustable pressure range | 20-20 BAR |
|---|---|
| Connection 2, thread diameter | 3/8 Inch |
| Connection 3, thread diameter | 3/4 Inch |
| Connection thread diameter | 1/4 Inch, 3/4 Inch, 1/2 Inch |
| Connection thread type | BSP |
| Connection type | Thread |
| Housing height | 100 mm |
| Housing length | 120 mm |
| Housing width | 50 mm |

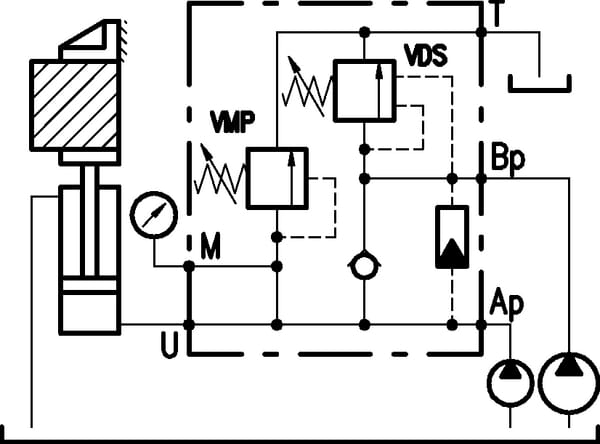

| Long description | A stop valve or Hi-low valve is used, for example, in presses or log splitters that use two parallel pumps, one of which is a high-flow, low-pressure pump, and a second low-flow, high-pressure pump. Both pumps deliver their combined flows to the consumer until the set pressure value is reached. From then on, the large pump will be relieved to the tank and the small pump will deliver its flow at high pressure. |
| Max. flow rate | 55 l/min |
| Max working pressure | 350 BAR |
| Product details | Ap = high pressure, Bp = low pressure, M = pressure gauge, Pressure (bar): 210 |
| Pros | Low energy consumption, Lower power demand, Faster operations |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4496 g |
| Dimensions | 200 × 118 × 49 mm |
| Dangerous goods | No |
You might also like
BPA000357359

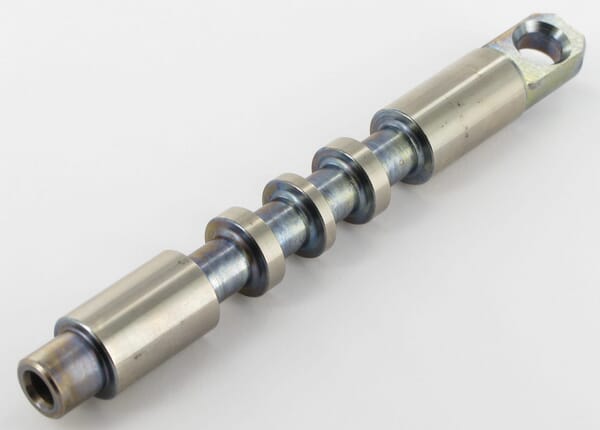

Walvoil Plunger type 1 TBV SD 4 SD94P1
£18.86 excl.
£22.63 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000357156

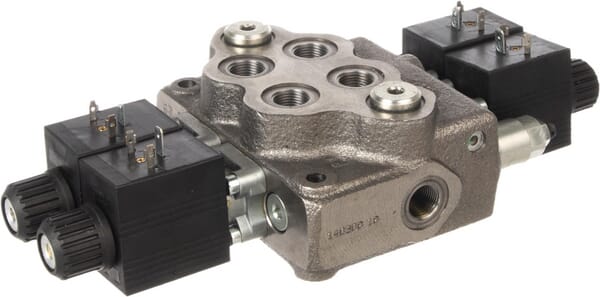

Walvoil Control valve SD5/2 2x18ES3/AET 12Vdc SD52016
£294.64 excl.
£353.57 incl.
In stock
Expected to ship on Friday 18 September
BPA000376523
Walvoil Pilot Check valve A-04-1/4" VBPSL03001
£50.38 excl.
£60.46 incl.
In stock
Expected to ship on Friday 18 September
BPA000357411

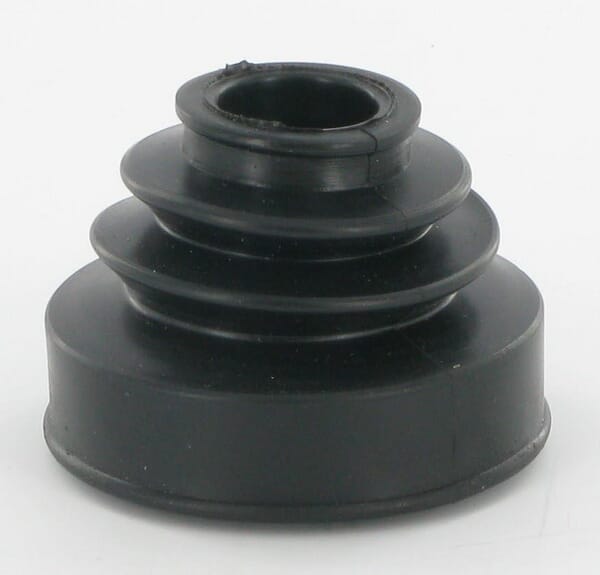

Walvoil Dust cover LCA SD 5/SD 18 SD95BLCAK
