£426.03
excl. VAT
£511.24 incl. VAT
£511.24
incl. VAT
£426.03 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

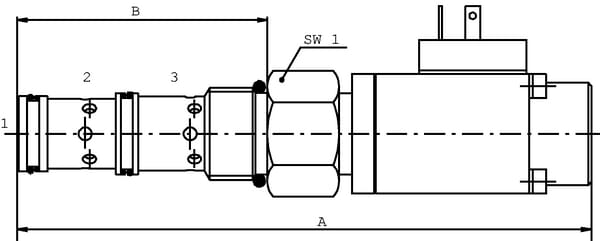

| ATotal length | 169 mm |
|---|---|
| Cavity | CP12-3 |
| Frequency | 150-150 Hz |
| Includes | Cartridge valve, Proportional coil, Without connector |

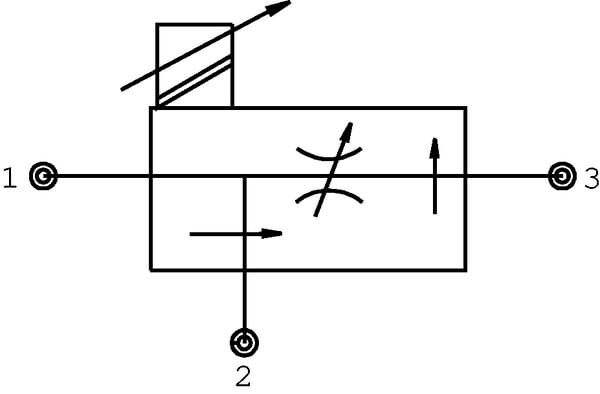

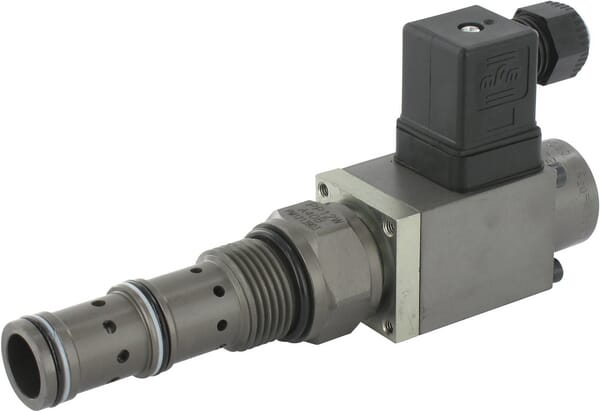

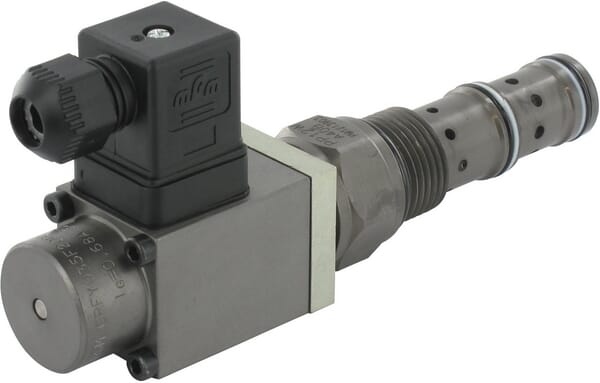

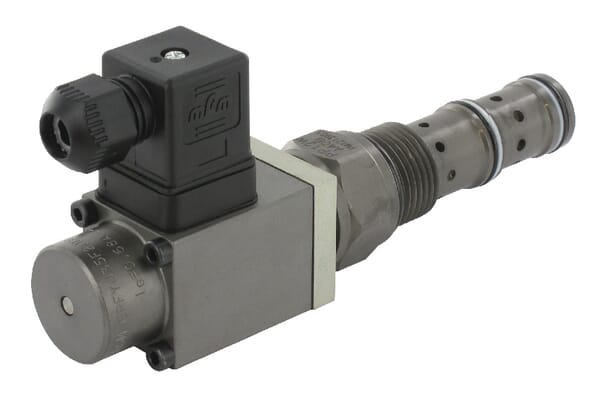

| Long description | This adjustable 3-way pressure-compensated flow control valve (parallel valve) has a flow direction from 1 to 3 and 2. The supplied flow in (1) is electrically proportionally controlled (12V or 24V) to (3), independently of the load, while the remaining oil is bypassed via (2) to a possible second circuit. The required connector and amplifier must be ordered separately. |
| Max. flow rate | 90 l/min |
| Max. leakage | 250 cm³/min |
| Max medium temperature | 80 °C |
| Max. pressure | 210 BAR |
| Max. pressure difference | 12 BAR |
| Max. regulated flow | 50 l/min |
| Max working pressure | 210 BAR |
| Min medium temperature | -20 °C |
| Product details | Pressure compensated, Solenoid proportional adjustable, P max. : 210 bar, Constant flow independently from load pressure variations, Normally closed |
| Torque | 75 N·m |
| Unit | Each |
| Viscosity oil | 10-200 cSt |
| Voltage (DC) | 24 V |
| Wrench/spanner size | 32.0 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 817 g |
| Dimensions | 228 × 113 × 66 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000357399

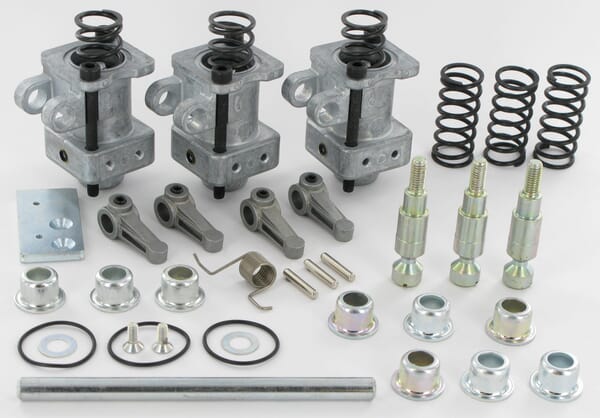

Walvoil Stopper 8MS3 Control 3 functio SD95AMS3N
£171.18 excl.
£205.42 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000253270

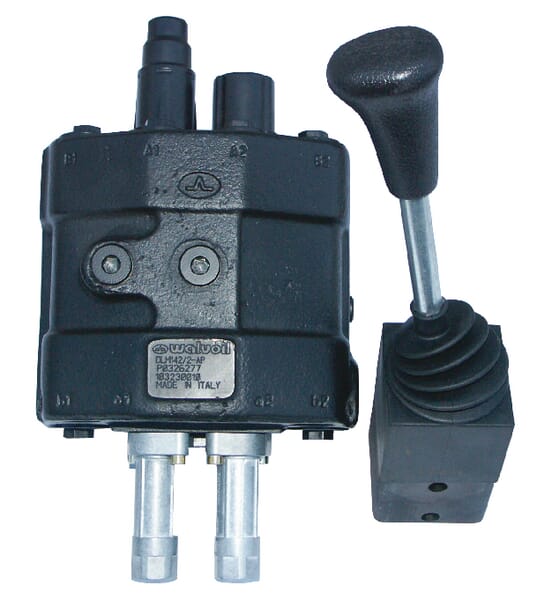

Walvoil Front loader valve DLM142/2 LS with cross handle DLSM218513LS
£1,035.33 excl.
£1,242.40 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000318819

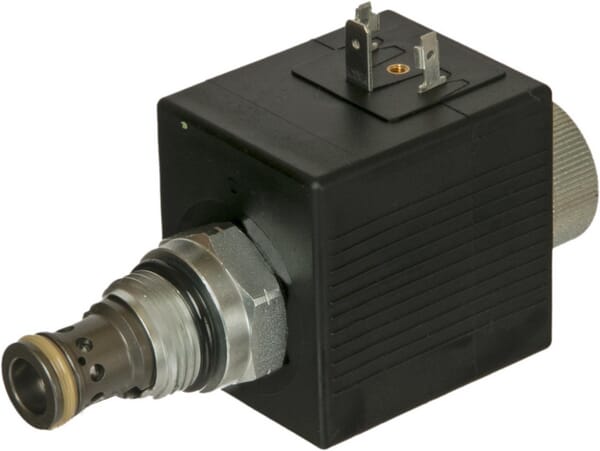

Walvoil Proportional pressure relieve valve 12Vdc MP10X/033B MP10X033B
£231.23 excl.
£277.48 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000357400

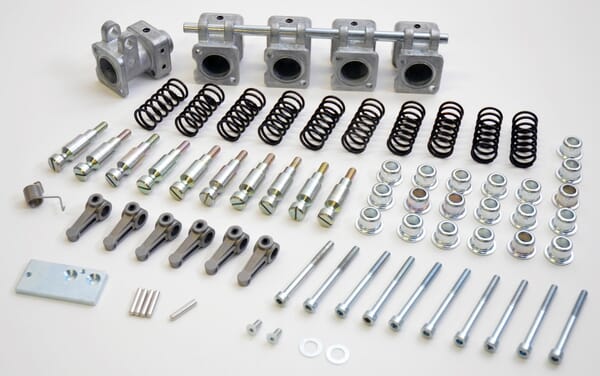

Walvoil Stopper 8MS3 Control 5 functio SD95AMS5N
£297.42 excl.
£356.90 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000357140

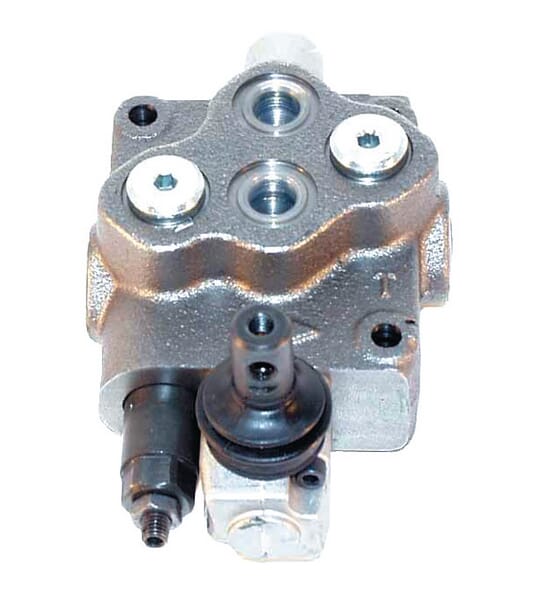

Walvoil Control valve SD5/1-N-310L-AET SD51009
£167.41 excl.
£200.89 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000384617

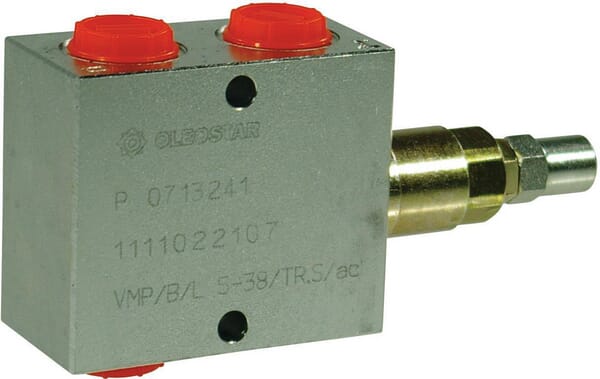

Walvoil Pressure relief valve Steel VMPBL20001ST
