£814.54
excl. VAT
£977.45 incl. VAT
£977.45
incl. VAT
£814.54 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

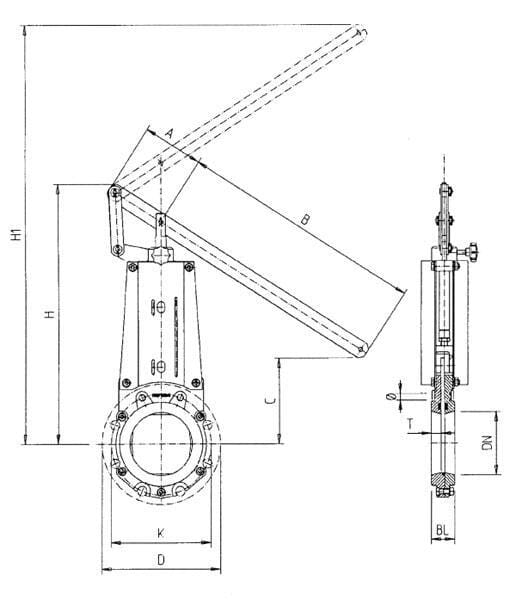

| ALever length - short side | 126 mm |
|---|---|
| Application range | Biogas plants: food scraps, manure, renewables (renewable raw materials) etc., Wastewater treatment plants: untreated wastewater, raw sludge, faecal matter etc., Sugar industry: beet washing plant etc., Food industry: conveyors for cereals, vegetables etc., Pulp and paper industry |
| Benefits | 100% waterproof, Long service life, High level of operational reliability |
| BLever length - long side | 454 mm |
| BLFlange thickness | 56 mm |
| Details | Connection flange valve with quick-release handle control, Pipe boot sealed by sealing on the narrow side of the plate, Adjustable transverse seal prevents medium from leaking externally, Blade-shaped valve plate shears off solid objects, No deposits thanks to scraper strips and special plate geometry |
| DFlange outside diameter | 250 mm |
| DNPassage hole nominal diameter | 125 mm |
| H1Total height | 824 mm |
| HPassage hole centre to top distance (closed) | 536 mm |
| KFlange mounting bolts/holes distance | 210 mm |
| ØFlange mounting bolts/holes thread diameter | M16 |
| Properties | Material from housing: GG25 with epoxy plastic coating EKB, Upper construction: stainless steel with epoxy plastic coating EKB, Plate: stainless steel 1.4404, Spindle/piston rod: stainless steel 1.4404, Seal: EPDM, Temperature range: -20 to +130°C |
| Technical info | Flanged hole: PN 10/16 - tested according to EN 1092/ISO 7005, Length: EN 558-1/ISO 5752 Series 20, Other designs can be supplied upon request |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 16000 g |
| Dimensions | 660 × 520 × 115 mm |
| Dangerous goods | No |
