£2,595.11
excl. VAT
£3,114.13 incl. VAT
£3,114.13
incl. VAT
£2,595.11 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

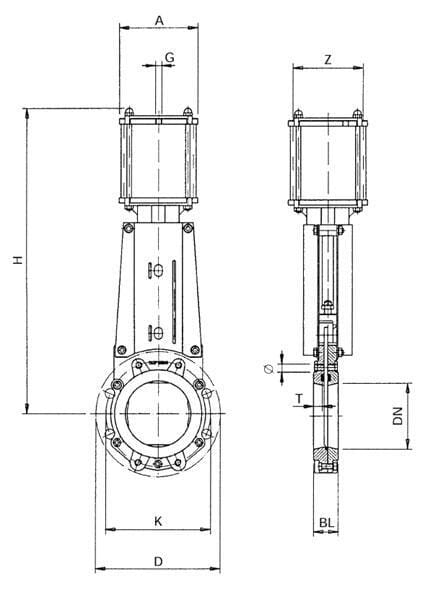

| ACylinder total width | 220 mm |
|---|---|
| Application range | Biogas plants: food scraps, manure, renewables (renewable raw materials) etc., Wastewater treatment plants: untreated wastewater, raw sludge, faecal matter etc., Sugar industry: beet washing plant etc., Food industry: conveyors for cereals, vegetables etc., Pulp and paper industry |
| Benefits | 100% waterproof, Long service life, High level of operational reliability |
| BLFlange thickness | 68 mm |

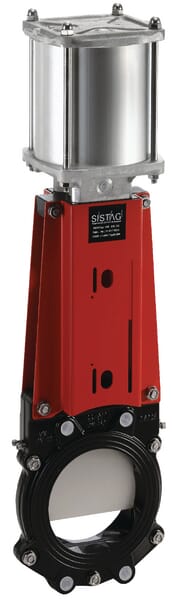

| Details | Intermediate knife gate valve actuated by dual-action pneumatic cylinder, Pipe boot sealed by sealing on the narrow side of the plate, Adjustable transverse seal prevents medium from leaking externally, Blade-shaped valve plate shears off solid objects, No deposits thanks to scraper strips and special plate geometry |
| DFlange outside diameter | 395 mm |
| DNPassage hole nominal diameter | 250 mm |
| GCylinder mounting thread diameter | 1/4 Inch |
| HPassage hole centre to lever end distance | 987 mm |
| KFlange mounting bolts/holes distance | 350 mm |
| Max working pressure | 6 BAR |
| ØFlange mounting bolts/holes thread diameter | M20 |
| Properties | Control pressure 6 to 8 bar in cylinder, Cushioned pneumatic cylinder prevents pressure shock, Housing material: GG25 with epoxy plastic coating EKB, Upper construction: stainless steel with epoxy plastic coating EKB, Plate: stainless steel 1.4404, Spindle/piston rod: stainless steel 1.4404, Seal: EPDM, Temperature range: -20 to +130°C |
| Technical info | Flanged hole: PN 10/16 - tested according to EN 1092/ISO 7005, Length: EN 558-1/ISO 5752 Series 20, Other designs can be supplied upon request |
| Unit | Each |
| ZCylinder outside diameter | 200 mm |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 53000 g |
| Dimensions | 1200 × 350 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000237346
WEY Housing seal kit DN150 type 07 BDE07VN150
£221.37 excl.
£265.64 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000237236
WEY Cylinder gasket set 250 mm BCE250D01
£360.39 excl.
£432.47 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000253353
WEY Valve 300mm Pneumatic DN300VNCN
£3,109.05 excl.
£3,730.86 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000237354

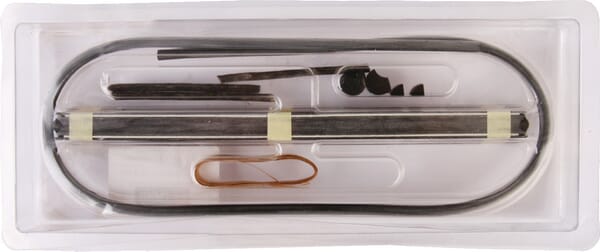

WEY Housing seal kit DN250 type 28 BDE28VN250
