£1,385.07
excl. VAT
£1,662.08 incl. VAT
£1,662.08
incl. VAT
£1,385.07 excl. VAT
Free shipping
In stock
Expected to ship on Monday 28 September
Product details
| Application range | Biogas plants: food scraps, manure, renewables (renewable raw materials) etc., Wastewater treatment plants: untreated wastewater, raw sludge, faecal matter etc., Sugar industry: beet washing plant etc., Food industry: conveyors for cereals, vegetables etc., Pulp and paper industry |
|---|---|
| Benefits | 100% waterproof, Long service life, High level of operational reliability |

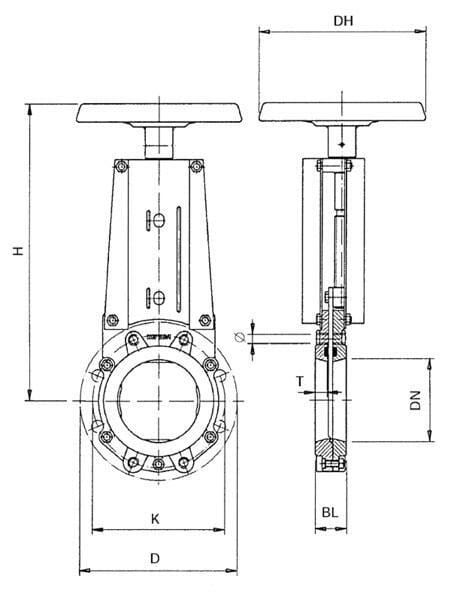

| BLFlange thickness | 68 mm |
| Details | Connection flange valve with handwheel control, Pipe boot sealed by sealing on the narrow side of the plate, Adjustable transverse seal prevents medium from leaking externally, Blade-shaped valve plate shears off solid objects, No deposits thanks to scraper strips and special plate geometry |
| DFlange outside diameter | 395 mm |
| DHHand wheel diameter | 300 mm |
| DNPassage hole nominal diameter | 250 mm |
| HPassage hole centre to lever end distance | 696 mm |
| KFlange mounting bolts/holes distance | 350 mm |
| Max working pressure | 6 BAR |
| ØFlange mounting bolts/holes thread diameter | M20 |
| Properties | Material from housing: GG25 with epoxy plastic coating EKB, Upper construction: stainless steel with epoxy plastic coating EKB, Plate: stainless steel 1.4404, Spindle/piston rod: stainless steel 1.4404, Seal: EPDM, Temperature range: -20 to +130°C |
| Technical info | Flanged hole: PN 10/16 - tested according to EN 1092/ISO 7005, Length: EN 558-1/ISO 5752 Series 20, Other designs can be supplied upon request |
| Type of drive/steering | Hand wheel |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 42000 g |
| Dimensions | 950 × 340 × 300 mm |
| Dangerous goods | No |
