£963.31
excl. VAT
£1,155.97 incl. VAT
£1,155.97
incl. VAT
£963.31 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Displacement | 250 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | BSP |
| Long description | Orbital motors are distinguished by their compact construction, large axial, radial shaft loads and high starting torque |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | BSP |
| Main second port center to front flange distance | 175.6 mm |
| Max. continous working pressure | 200 BAR |

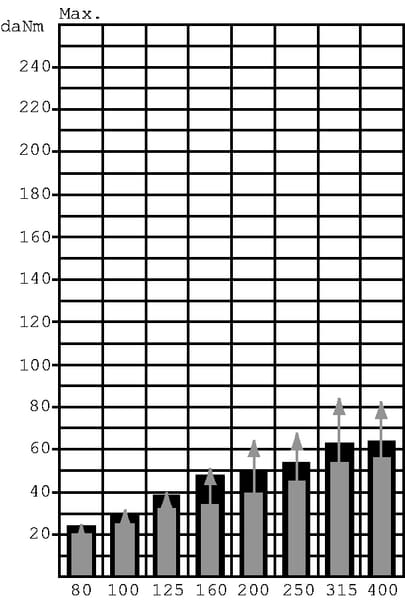

| Max continuous torque | 720 N·m |
| Max. flow rate | 75 l/min |
| Max intermittend working pressure | 250 BAR |

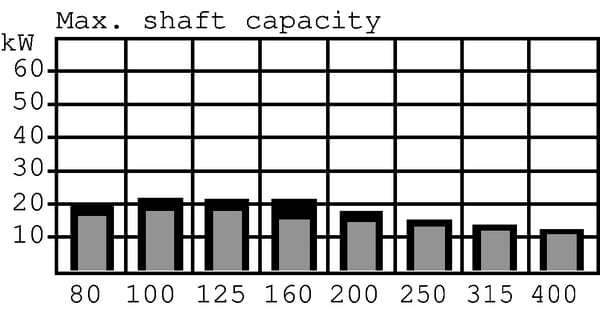

| Max. power | 14.5 kW |
| Max pressure peak | 270 BAR |

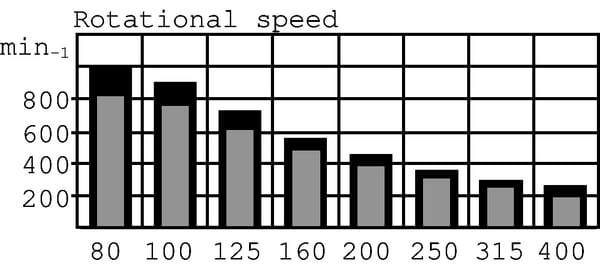

| Max rotation speed | 300 r/min |
| Min rotation speed | 6 r/min |
| Mounting holes circle diameter | 106.4 mm |
| Original number equivalent | 151F0519 |
| Product details | Particularly suitable for continuous use in tough conditions, High continuous operating pressure, Very consistent operation at low speeds, Frequent reversing possible, High efficiency, Excellent start-up properties, Very high permissible radial load on the shaft is possible |
| Rotor length | 153.6 mm |
| Sealing type | Standard |
| Shaft cone size code | 1:10 |
| Shaft diameter | 35 mm |
| Shaft length | 197.9 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 12218 g |
| Dimensions | 395 × 175 × 155 mm |
| Dangerous goods | No |
