£578.82
excl. VAT
£694.58 incl. VAT
£694.58
incl. VAT
£578.82 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details
| Displacement | 125 cm³/rev |
|---|---|

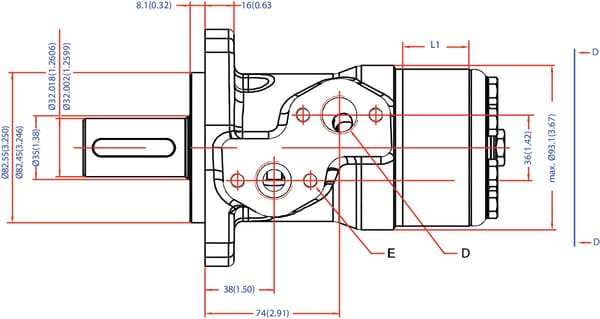

| Flange code | SAE |
| Flange shape | Oval |
| Housing length | 142 mm |

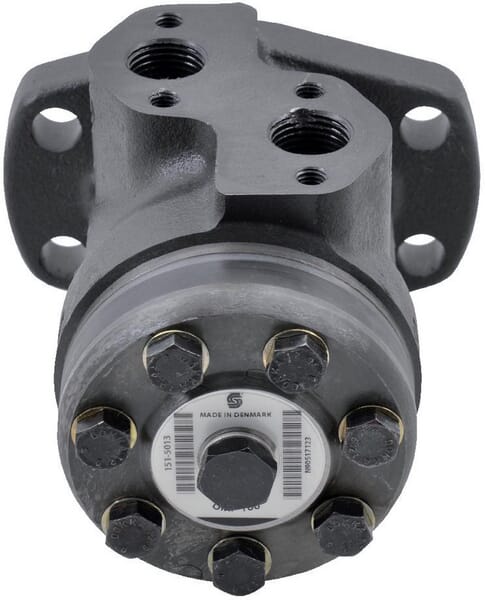

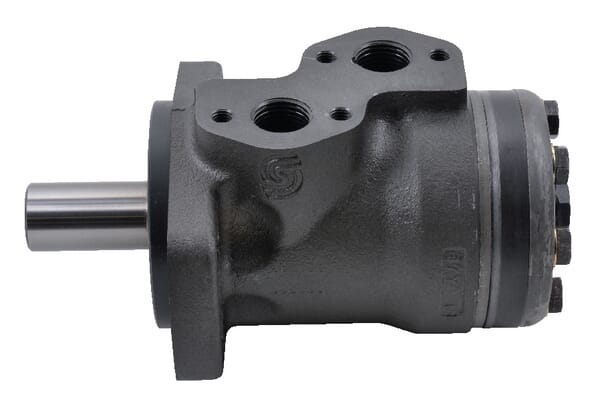

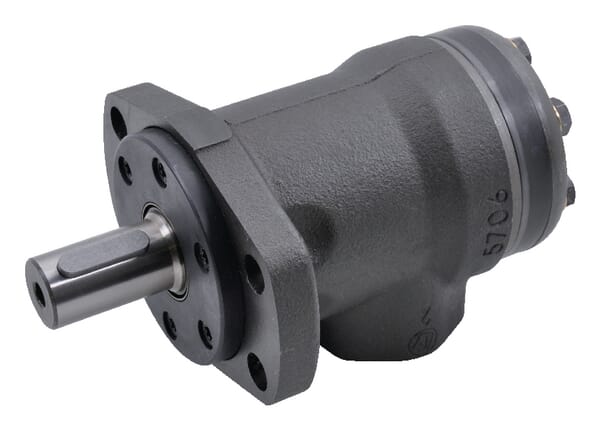

| Long description | Orbital motor type OMP with drain connection |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Max. continous working pressure | 140 BAR |
| Max continuous torque | 240 N·m |
| Max. flow rate | 60 l/min |
| Max intermittend working pressure | 175 BAR |
| Max. power | 10 kW |
| Max pressure peak | 225 BAR |
| Max rotation speed | 480 r/min |
| Min rotation speed | 9 r/min |

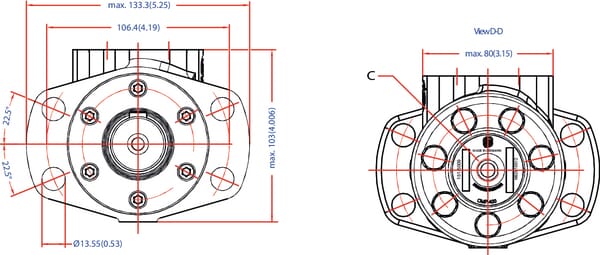

| Number of mounting holes | 4 |
| Original number equivalent | 1515004 |
| Product details | Robust and compact construction, High axial and radial load carrying capacity of the axle, High starting torque, Equipped with leakage oil connection so that the product can easily be used in series with other engines, Can also be used in closed-centre hydraulic systems, P1 = operating pressure continuous, P2 = int. operating pressure max. 10%/min, - P3= peak pressure, Seal can be ordered under no. OMP 9-AFD 98 (older series on request) |
| Rotor length | 16.7 mm |
| Sealing type | Standard |

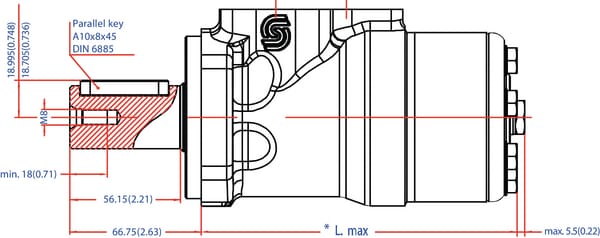

| Shaft diameter | 32 mm |
| Shaft thread diameter | M8 |
| Shaft thread type | Metric |
| Shaft type | Straight parallel |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
FPRF90DVD2R12OMR
FluidPress Flow control valve 3-Way OMP/R/H FPRF90DVD2R12OMR
£264.03 excl.
£316.84 incl.
MDVOMR12
Walvoil Dir. control valve for OMP/OMR MDVOMR12
£248.19 excl.
£297.83 incl.
OMP9012
White Seal kit OMP/ D=32mm151 OMP9012
£61.15 excl.
£73.38 incl.
OMP9WP
Unbranded Welding plate OMP OMR OMS OMP9WP
£23.61 excl.
£28.33 incl.
VAIF05001
Walvoil Relief valve A-08-OMP-C-1/2" BSP VAIF05001
£82.08 excl.
£98.50 incl.
VANT40OMR
Walvoil Check valve VANT/40/OMP-OMR VANT40OMR
£49.66 excl.
£59.59 incl.
VODLSCAF05001
Walvoil Counterbalance valve A-08-OMR- 1/2BSP VODLSCAF05001
£259.30 excl.
£311.16 incl.
VODLSCF05001
Walvoil Counterbal A-08-OMR-A-4 1/2" VODLSCF05001
£260.41 excl.
£312.49 incl.
VPR3EP10005
Walvoil Flow control valve 3-Way OMP/R VPR3EP10005
£186.92 excl.
£224.30 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 6802 g |
| Dimensions | 300 × 163 × 163 mm |
| Dangerous goods | No |
