£422.95
excl. VAT
£507.54 incl. VAT
£507.54
incl. VAT
£422.95 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Displacement | 32 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Extra info | Colour : RAL9005 |
| Flange code | A2 |
| Flange diameter | 82.5 mm |
| Flange shape | Oval |
| Housing length | 131.9 mm |
| Long description | Orbital motor offers compact construction and simple mounting. High torque and shaft load, because of shorter distance from mounting flange to the point of load application. |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Max. continous working pressure | 115 BAR |
| Max continuous torque | 50 N·m |
| Max. flow rate | 50 l/min |
| Max intermittend working pressure | 160 BAR |
| Max. power | 6.7 kW |
| Max rotation speed | 1560 r/min |
| Min. starting pressure | 10 BAR |
| Min. starting torque | 45 N·m |
| Mounting holes circle diameter | 106.4 mm |
| Number of mounting holes | 2 |
| Original number equivalent | 11185776 |
| Port position | Side |
| Product details | High starting torque, With leak oil outlet, Rotor design, Wide shaft slip bearing, Recessed flange mounting, Option of direct wheel hub mounting |
| Sealing type | High pressure |
| Shaft diameter | 25 mm |
| Shaft type | Cylindrical |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 6154 g |
| Dimensions | 300 × 162 × 158 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000333722
White Orbit motor short OMSS80151F0535
£702.04 excl.
£842.45 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000333712
White Seal kit OMS/VITON 151F OMS9AFDV
£79.97 excl.
£95.96 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000333628

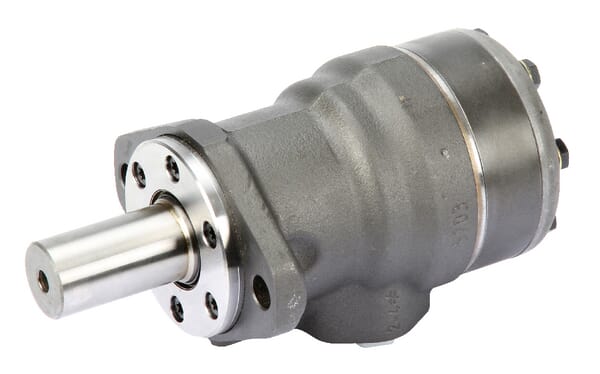

White Orbit motor, shaft diameter 32, 2H,Drain OMR501510248
