£702.04
excl. VAT
£842.45 incl. VAT
£842.45
incl. VAT
£702.04 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Displacement | 80 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Flange shape | Short |
| LHousing length | 124 mm |

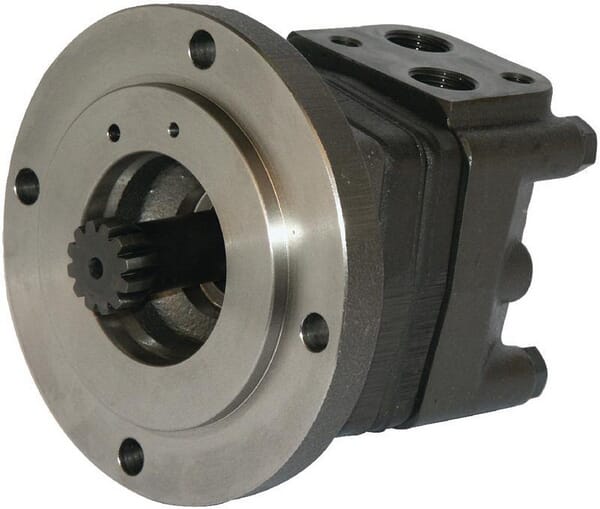

| Long description | Orbital motors are distinguished by their compact construction, large axial, radial shaft loads and high starting torque. |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Max. continous working pressure | 210 BAR |
| Max continuous torque | 240 N·m |
| Max. flow rate | 65 l/min |
| Max intermittend working pressure | 275 BAR |
| Max. power | 15.5 kW |
| Max pressure peak | 295 BAR |
| Max rotation speed | 810 r/min |
| Min rotation speed | 10 r/min |
| Number of mounting holes | 4 |
| Original number equivalent | 151F0535 |
| Product details | Short motor, Without shaft bearing, Without output shaft, Very short design, Particularly suitable for continuous use in tough conditions, High continuous operating pressure, Very smooth running at low speeds, Frequent reversing possible, High efficiency, Excellent start-up properties |
| Rotor length | 14 mm |
| Sealing type | n/a |
| Shaft diameter | 27.6 mm |
| Shaft number of teeth | 12 |
| Shaft type | Splined |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 8177 g |
| Dimensions | 400 × 175 × 160 mm |
| Dangerous goods | No |
