£569.38
excl. VAT
£683.26 incl. VAT
£683.26
incl. VAT
£569.38 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Displacement | 250 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Flange code | A2 |
| Flange diameter | 82.5 mm |
| Flange shape | Oval |
| Housing length | 159.2 mm |
| Long description | Orbital motor offers compact construction and simple mounting. High torque and shaft load, because of shorter distance from mounting flange to the point of load application. |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Max. continous working pressure | 120 BAR |
| Max continuous torque | 400 N·m |
| Max. flow rate | 60 l/min |
| Max intermittend working pressure | 155 BAR |
| Max. power | 8.4 kW |
| Max rotation speed | 250 r/min |
| Min. starting pressure | 5 BAR |
| Min. starting torque | 375 N·m |
| Mounting holes circle diameter | 106.4 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Product details | High starting torque, With leak oil outlet, Rotor design, Wide shaft slip bearing, Recessed flange mounting, Option of direct wheel hub mounting |
| Sealing type | High pressure |

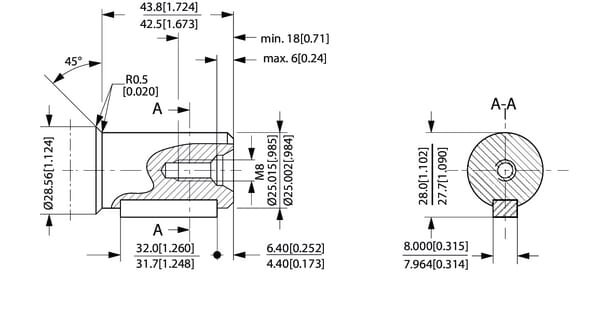

| Shaft diameter | 25 mm |
| Shaft type | Cylindrical |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7253 g |
| Dimensions | 300 × 161 × 157 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000333577

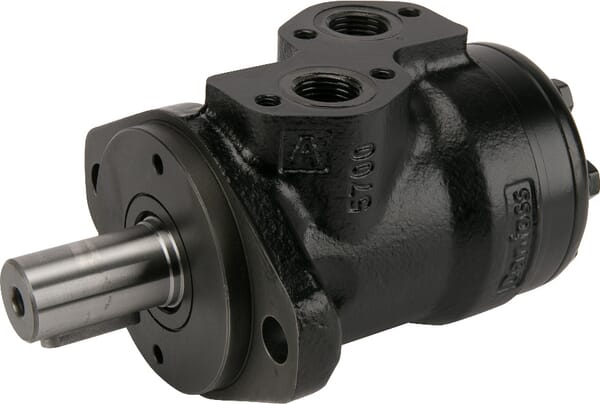

White Orbit motor Shaft diameter 25 A2 OMPX20011185753
£610.68 excl.
£732.82 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000333660

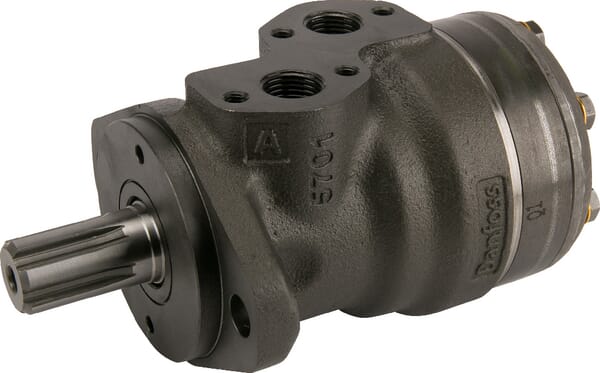

White Orbit motor, shaft diameter 1" Z6 A2 OMRX25011185576
£726.01 excl.
£871.21 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327561

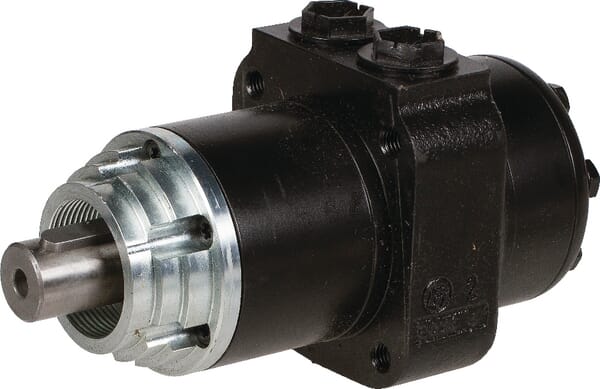

White Danfoss motor OMPW200 OMPW2001517164
£736.95 excl.
£884.34 incl.
In stock
Expected to ship on Thursday 24 September
BPA000333636

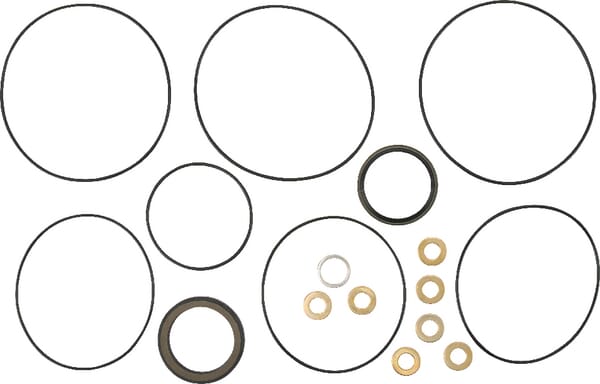

White Seal kit 151-1296 OMP/R serie OMR9AFD327
£59.60 excl.
£71.52 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000333711

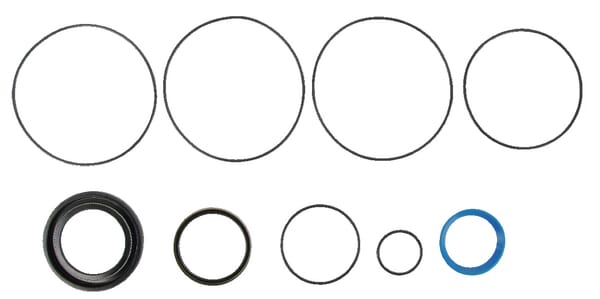

White Gasket set 151F0117 OMS9AFDPTO
