£365.25
excl. VAT
£438.30 incl. VAT
£438.30
incl. VAT
£365.25 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

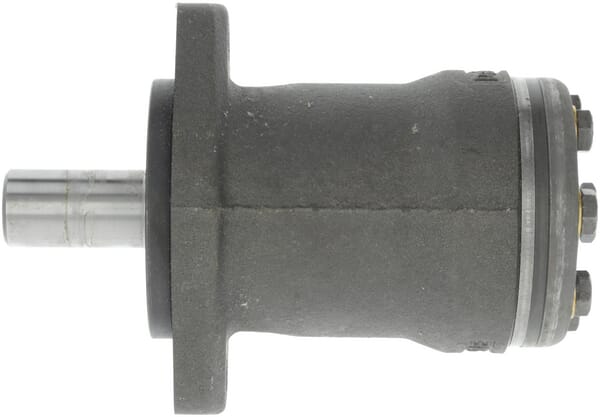

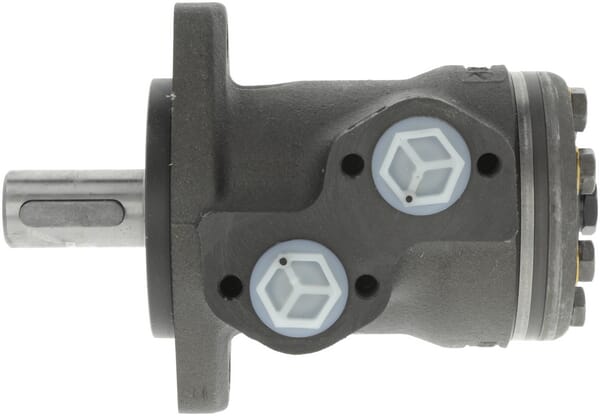

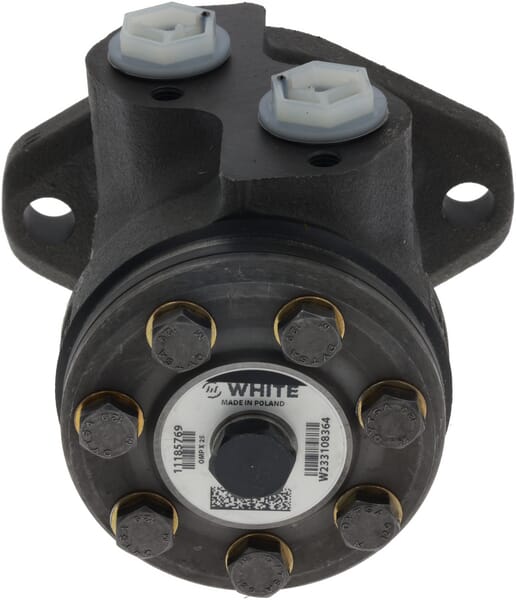

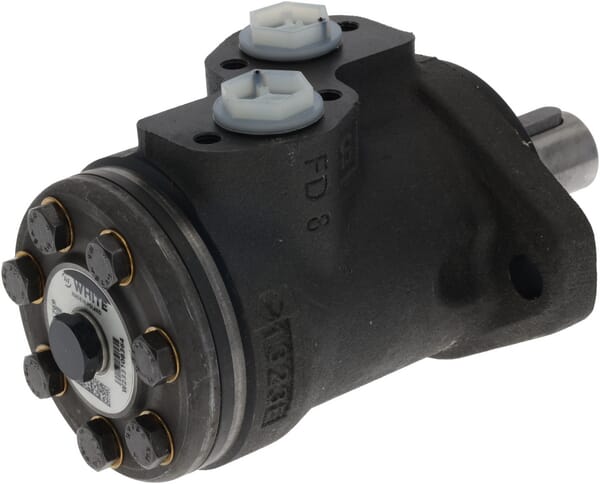

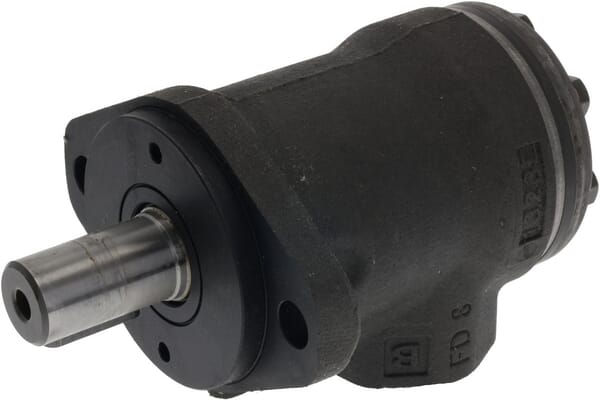

Product details
| Displacement | 25 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Flange code | A2 |
| Flange diameter | 82.5 mm |
| Flange shape | Oval |
| Housing length | 130.8 mm |
| Long description | Orbital motor offers compact construction and simple mounting. High torque and shaft load, because of shorter distance from mounting flange to the point of load application. |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Max. continous working pressure | 115 BAR |
| Max continuous torque | 40 N·m |
| Max. flow rate | 40 l/min |
| Max intermittend working pressure | 160 BAR |
| Max. power | 5.4 kW |
| Max rotation speed | 1600 r/min |
| Min. starting pressure | 10 BAR |
| Min. starting torque | 35 N·m |
| Mounting holes circle diameter | 106.4 mm |
| Number of mounting holes | 2 |
| Original number equivalent | 11185769 |
| Port position | Side |
| Product details | High starting torque, With leak oil outlet, Rotor design, Wide shaft slip bearing, Recessed flange mounting, Option of direct wheel hub mounting |
| Sealing type | High pressure |

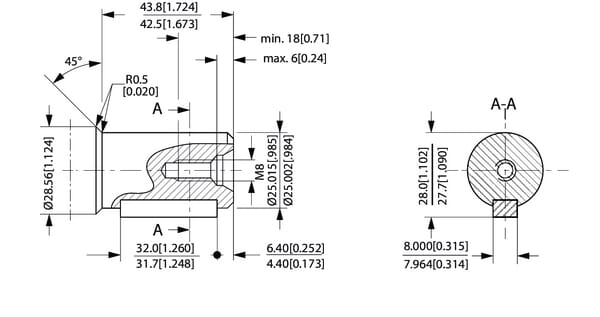

| Shaft diameter | 25 mm |
| Shaft type | Cylindrical |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 6060 g |
| Dimensions | 300 × 160 × 155 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000333576
White Orbit motor, shaft diameter 25 OMPX20011185752
£591.61 excl.
£709.93 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

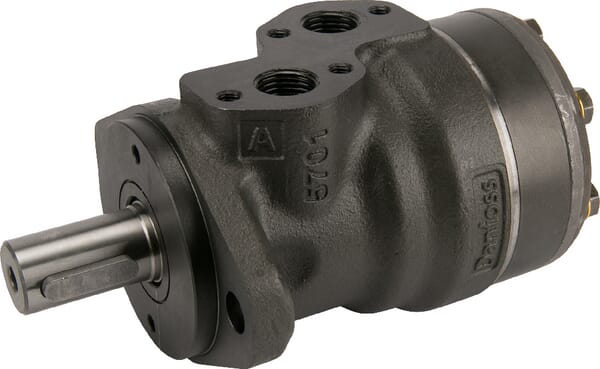

BPA000333667
White Orbit motor, shaft diameter 1" A2 OMRX37511185556
£761.60 excl.
£913.92 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000348100
White Seal kit series 505 (RE) RE9505AFD
£122.53 excl.
£147.04 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

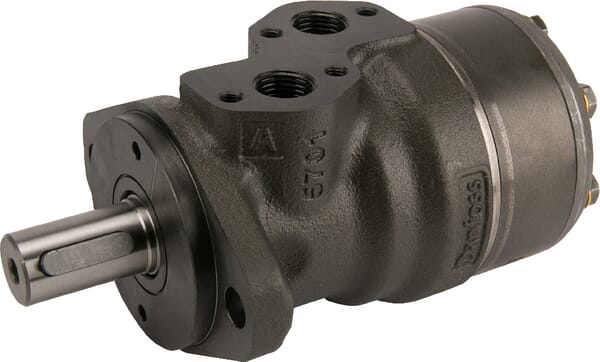

BPA000333661
