£487.29
excl. VAT
£584.75 incl. VAT
£584.75
incl. VAT
£487.29 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details
| Displacement | 20 cm³/rev |
|---|---|
| Drain port thread diameter | 1/8 Inch |
| Drain port thread type | G |
| LHousing length | 112.5 mm |
| Long description | Orbital motors are distinguished by their compact construction and high starting torque. |
| Main port thread diameter | 3/8 Inch |
| Main port thread type | G |
| Max. continous working pressure | 100 BAR |
| Max continuous torque | 25 N·m |
| Max. flow rate | 20 l/min |
| Max intermittend working pressure | 140 BAR |
| Max. power | 2.4 kW |
| Max pressure peak | 200 BAR |
| Max rotation speed | 1000 r/min |
| Min rotation speed | 30 r/min |
| Number of mounting holes | 3 |
| Original number equivalent | 151G5042 |
| Product details | Suitable for continuous operation at medium pressure or short-term operation at high pressure, Robust and compact design, Refer to technical information on maximum radial and axial loads, Belongs to the series of small orbit motors, Available with rear or side connections, A variety of shaft designs are available |
| Rotor length | 8.5 mm |
| Sealing type | Standard |
| Shaft diameter | 16 mm |
| Shaft thread diameter | M6 |
| Shaft thread type | Metric |
| Shaft type | Straight parallel |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2155 g |
| Dimensions | 200 × 95 × 95 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327534

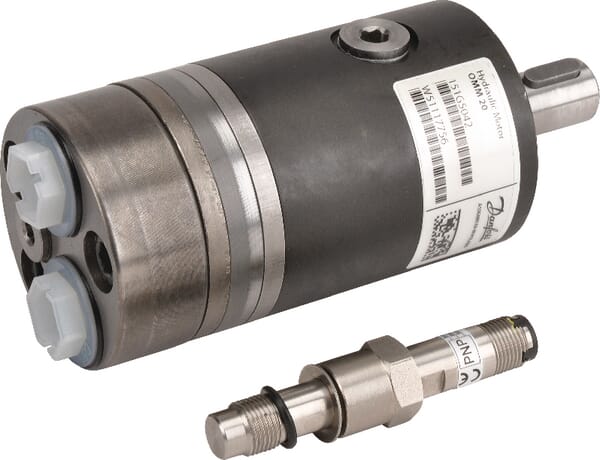

White Orbit motor, shaft diameter 16 sensor back OMM8151G5060
£476.34 excl.
£571.61 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000333695
White Orbit motor, shaft diameter 32, Stand OMS250151F0505
£665.32 excl.
£798.38 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000333630
White Orbit motor, shaft diameter 32.2H,Drain OMR801510242
£748.21 excl.
£897.85 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000333674
White Orbit motor, shaft diameter 25 A2 rear OMRX8011185474
£722.96 excl.
£867.55 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000333652

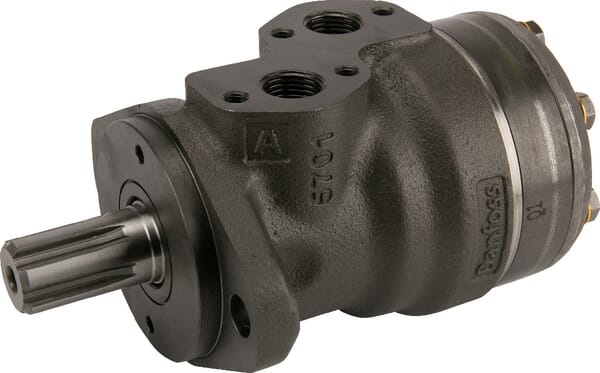

White Orbit motor, shaft diameter 1" Z6 A2 OMRX16011185570
