£1,069.06
excl. VAT
£1,282.87 incl. VAT
£1,282.87
incl. VAT
£1,069.06 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Brake release port thread diameter | 1/4 Inch |
|---|---|
| Brake release port thread type | G |
| Displacement | 375 cm³/rev |
| Drain port center to front flange distance | 261.2 mm |
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Flange diameter | 106.4 mm |
| Flange shape | Oval |
| Housing length | 293.7 mm |
| Main port center to front flange distance | 74 mm |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | BSP |
| Main second port center to front flange distance | 38 mm |
| Max. continous working pressure | 70 BAR |
| Max continuous torque | 360 N·m |
| Max. flow rate | 60 l/min |
| Max intermittend working pressure | 175 BAR |
| Max. power | 5 kW |
| Max rotation speed | 160 r/min |
| Min. starting pressure | 5 BAR |
| Min. starting torque | 300 N·m |
| Mounting holes circle diameter | 82.5 mm |
| Mounting holes thread diameter | M8 |
| Number of mounting holes | 2 |
| Port position | Side |

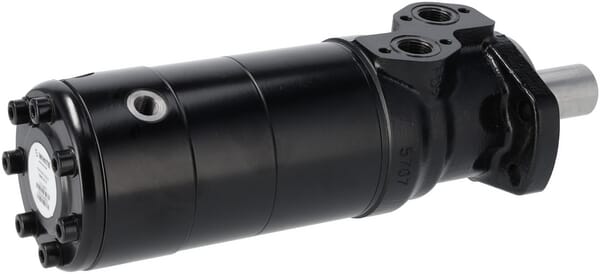

| Product details | With leak oil drain, Roller design, Wide shaft plain bearing, Can be connected in series with other motors, Suitable for use in closed systems, Belongs to the series of medium-sized orbital motors |
| Rotor length | 65 mm |
| Sealing type | Standard |
| Shaft diameter | 25 mm |
| Shaft length | 55.3 mm |
| Shaft type | Cylindrical |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 15327 g |
| Dimensions | 430 × 165 × 150 mm |
| Dangerous goods | No |
