£746.76
excl. VAT
£896.11 incl. VAT
£896.11
incl. VAT
£746.76 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details
| Displacement | 315 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Flange diameter | 103 mm |
| Flange shape | Wheel |
| Housing length | 107.8 mm |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Max. continous working pressure | 100 BAR |
| Max continuous torque | 400 N·m |
| Max. flow rate | 60 l/min |
| Max. power | 7 kW |
| Max rotation speed | 195 r/min |
| Min. starting pressure | 5 BAR |
| Min. starting torque | 380 N·m |
| Mounting holes circle diameter | 80 mm |
| Original number equivalent | 11185871 |
| Port position | Side |
| Product details | High starting torque, With leak oil outlet, Rotor design, Wide shaft slip bearing, Recessed flange mounting, Option of direct wheel hub mounting, Robust and compact construction, Shaft has a very high radial load capacity |
| Sealing type | High pressure |

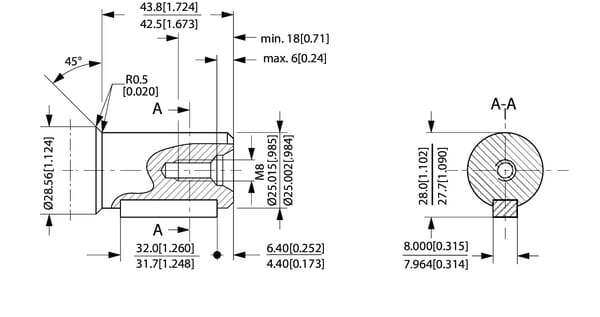

| Shaft diameter | 25 mm |
| Shaft type | Cylindrical |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7478 g |
| Dimensions | 300 × 170 × 165 mm |
| Dangerous goods | No |
