Product details
| Displacement | 80 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |

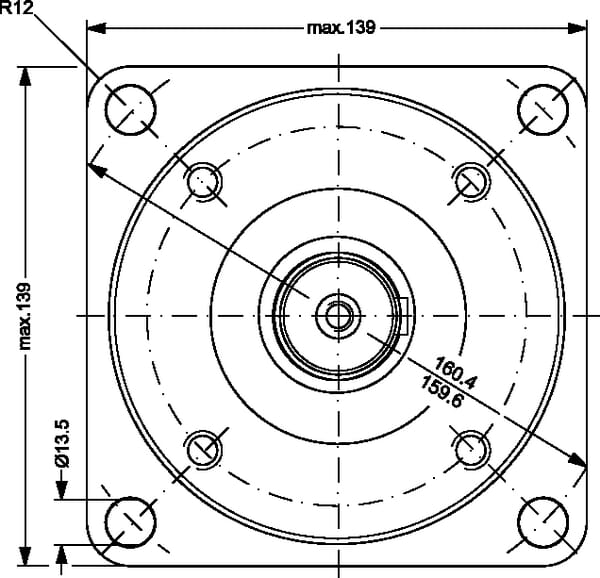

| Flange shape | Wheel |
| L1Rotor length | 14 mm |

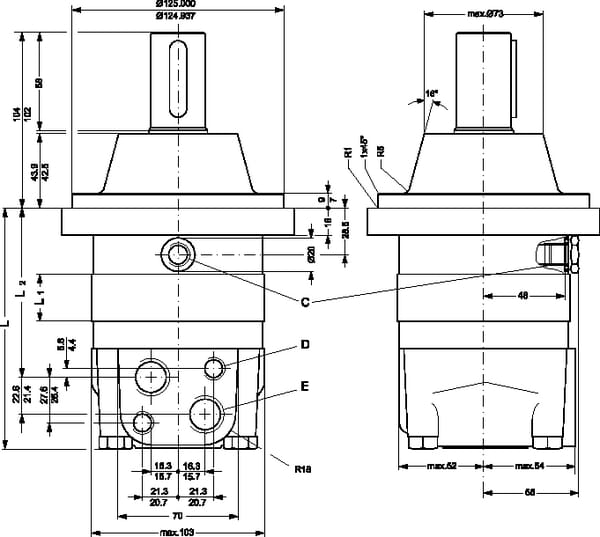

| LHousing length | 129 mm |
| Long description | Orbital motor offers compact construction and simple mounting. High torque and shaft load, because of shorter distance from mounting flange to the point of load application. |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Max. continous working pressure | 210 BAR |
| Max continuous torque | 240 N·m |
| Max. flow rate | 75 l/min |
| Max intermittend working pressure | 275 BAR |
| Max. power | 15.5 kW |
| Max pressure peak | 295 BAR |
| Max rotation speed | 810 r/min |
| Min rotation speed | 10 r/min |
| Number of mounting holes | 4 |
| Original number equivalent | 151F0528 |
| Sealing type | Standard |

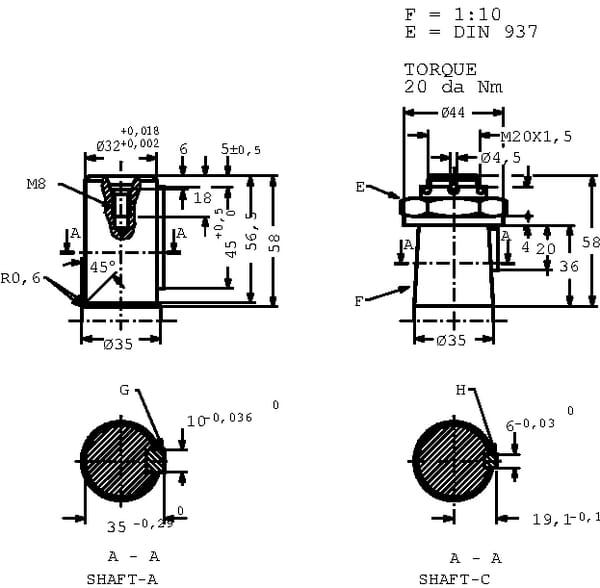

| Shaft cone size code | 1:10 |
| Shaft diameter | 35 mm |
| Shaft type | Tapered |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 10808 g |
| Dimensions | 398 × 174 × 156 mm |
| Dangerous goods | No |
