£1,243.36
excl. VAT
£1,492.03 incl. VAT
£1,492.03
incl. VAT
£1,243.36 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Displacement | 400 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Flange shape | Wheel |
| L1Rotor length | 68.4 mm |
| LHousing length | 183 mm |
| Long description | Orbital motor offers compact construction and simple mounting. High torque and shaft load, because of shorter distance from mounting flange to the point of load application. |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Max. continous working pressure | 160 BAR |
| Max continuous torque | 865 N·m |
| Max. flow rate | 75 l/min |
| Max intermittend working pressure | 190 BAR |
| Max. power | 11 kW |
| Max pressure peak | 210 BAR |
| Max rotation speed | 190 r/min |
| Min rotation speed | 5 r/min |
| Number of mounting holes | 4 |
| Original number equivalent | 151F0609 |
| Sealing type | Standard |

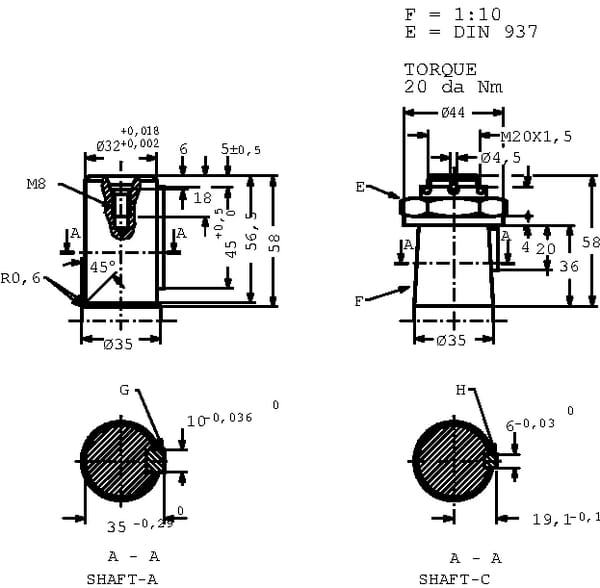

| Shaft cone size code | 1:10 |
| Shaft diameter | 35 mm |
| Shaft type | Tapered |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
OMS9AFD
White Seal kit OMS 151F0111 OMS9AFD
£54.96 excl.
£65.96 incl.
OMS9AFDV
White Seal kit OMS/VITON 151F OMS9AFDV
£79.97 excl.
£95.96 incl.
VADDF10001
Walvoil Relief val 10 A 08 OMS A 1/2" VADDF10001
£125.49 excl.
£150.59 incl.
VANT12OMS
Walvoil Check valve VANT T 12-OMS VANT12OMS
£71.36 excl.
£85.63 incl.
VODLSCAF10001
Walvoil Counterbalance A-08-OMS 1/2BSP VODLSCAF10001
£323.75 excl.
£388.50 incl.
VODLSCF10001
Walvoil Counterbal A-08-OMS-A-4 1/2" VODLSCF10001
£306.14 excl.
£367.37 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 14084 g |
| Dimensions | 400 × 180 × 165 mm |
| Dangerous goods | No |
