£88.86
excl. VAT
£106.63 incl. VAT
£106.63
incl. VAT
£88.86 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Benefits | Press-fitting with heavy-duty anti-slip protection |
|---|---|

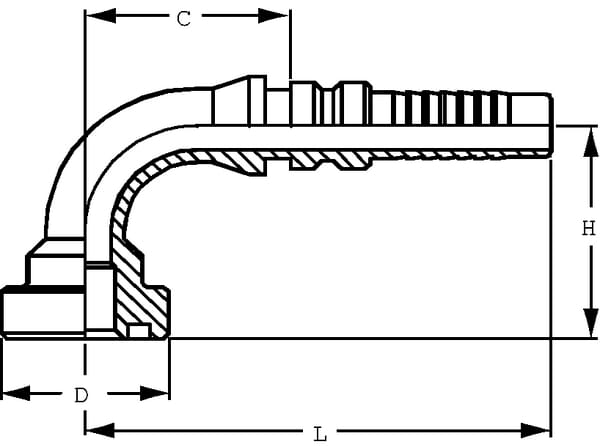

| CConnection centre to insert distance | 106.3 mm |
| Connection 1, type | Hose end |
| Connection 1, type code | SFS |
| Connection 2, diameter | 1-1/2 Inch |
| Connection 2, type | Flange |
| Connection no 1 diameter | 1-1/2 Inch |
| DFlange outside diameter | 63.5 mm |
| Flange standard pressure series | 6000 |
| Flange thickness | 12.57 mm |
| HConnection 2, centre to end distance | 109 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |
| LConnection no 1 center to end distance | 106.3 mm |
| Material | Steel |
| Product details | Alfagomma Evolution G2, Anchoring by means of interlock system, OVP-ring or O-ring seal, Heavy duty machines with high operating and peak pressures, Hydrostatic drives, Series H17, Always consult the most up to date press tables, see downloads at the bottom of each web page |
| Pros | Press-fitting with heavy-duty anti-slip protection |
| Series | SFSH |

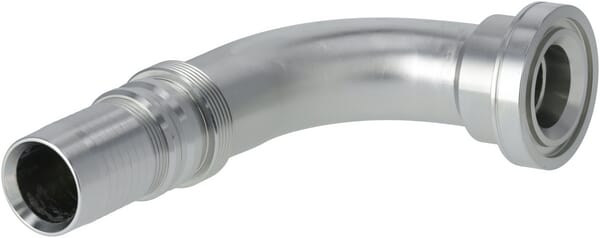

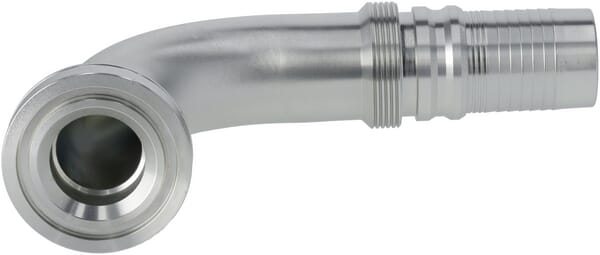

| Shape | Elbow 90° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1456 g |
| Dimensions | 210 × 130 × 65 mm |
| Dangerous goods | No |
You might also like

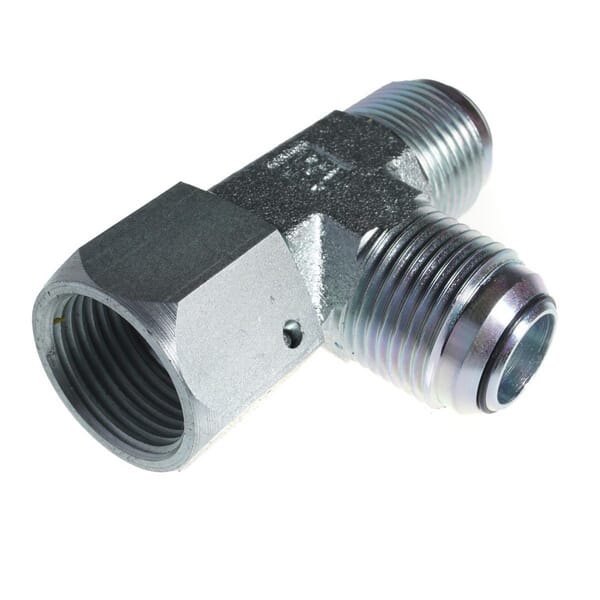

BPA000312403
Alfagomma T piece union F-M JIC 1 1/16" UNF LOU17
£30.94 excl.
£37.13 incl.
In stock
Expected to ship on Friday 18 September

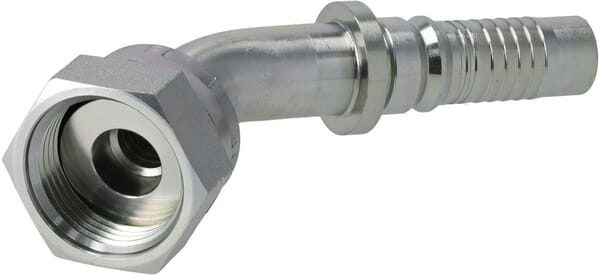

BPA000251372
Alfagomma Swage coupling 4SH-DN16-1.3/16" ORFS-45° DAVH161945G2
£27.95 excl.
£33.54 incl.
Backorder available
Usually ships within 3–8 weeks

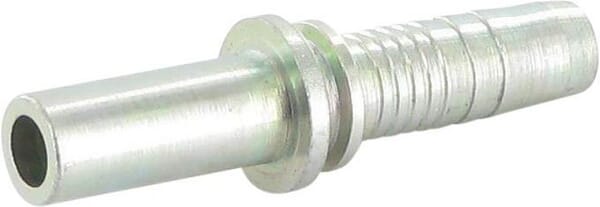

BPA000342843
Alfagomma Insert DN10 (3/8") - diameter 10 mm standpipe PT1010
£1.59 excl.
£1.91 incl.
In stock
Expected to ship on Friday 18 September
BPA000252982
Alfagomma Hydraulic hose DN06 1600mm DKLO61600
£28.03 excl.
£33.64 incl.
In stock
Expected to ship on Friday 18 September

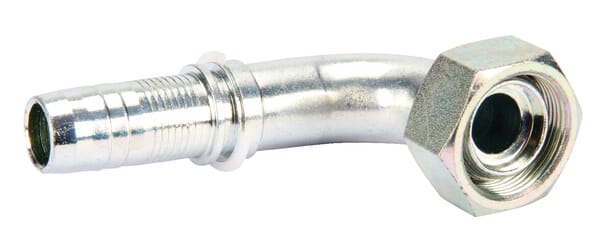

BPA000344141
