£4,420.50
excl. VAT
£5,304.60 incl. VAT
£5,304.60
incl. VAT
£4,420.50 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

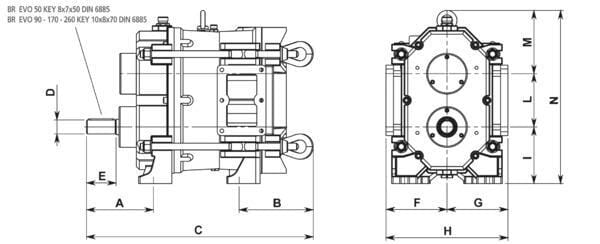

| ADistance end of shaft to mid first bore | 163 mm |
|---|---|

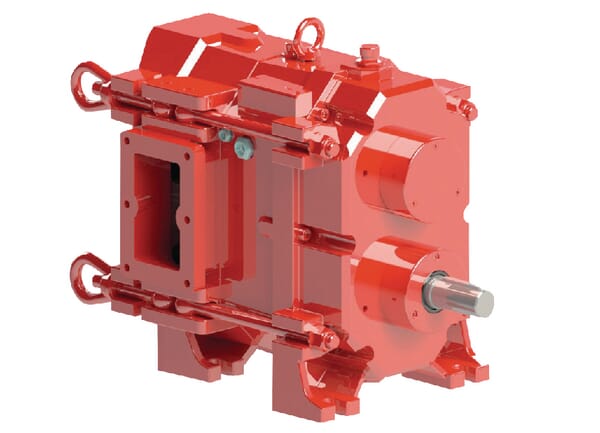

| Application range | The BR-EVO-series displacement pumps from Battioni Pagani have been designed to pump slurry according to the displacement principle, for example from the cellar to the silo |
| BDistance 2nd bore to end | 214 mm |
| Benefits | Lower maintenance costs by maintaining on site, The intermediate chamber filled with oil ensures protection of the drive components |
| CLength | 684 mm |
| Connection | 38 |
| Consists of | The BR-EVO-type pumps are supplied with a special tool for removing the rotors and for installing and removing the mechanical seals, Including CE-compliant PTO shaft guard, Without suction and pressure flange |
| Details | Maintenance on site, For convenient cleaning, simply loosen the four eye nuts on the rear cover and remove the cover plate, The rotors, mechanical seals and wear plates can also be replaced on site, The standard oil-filled intermediate chamber ensures lubrication and cooling of the seals |
| Diameter of mounting hole | 22 mm |
| Distance mounting holes center to center short side | 230 mm |
| Distance underside to center shaft | 153 mm |
| FDistance center shaft to left side | 150 mm |

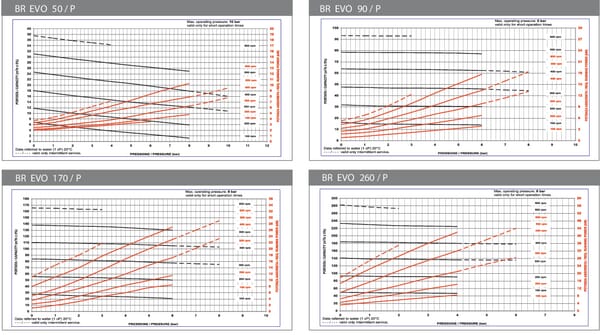

| Flow max. | 2767 l/min |
| GDistance center shaft to right side | 150 mm |
| HWidth | 300 mm |
| LDistance between shafts | 144 mm |
| MDistance center to top | 171 mm |
| NTotal height | 468 mm |
| P max. (bar) | 8 BAR |
| PMounting width | 300 mm |
| Power requirement (max. pressure) | 29 kW |
| Properties | The BR-EVO-series pumps can be supplied in three versions: direct drive (D), pulley drive (P) or hydraulic drive (H), Tungsten carbide seals between pump housing and intermediate chamber, Replaceable steel cover plates, The three-blade rotor is designed for suction heights of up to an 8-metre head of water, The BR-EVO-type displacement pumps can be operated both clockwise and anti-clockwise |

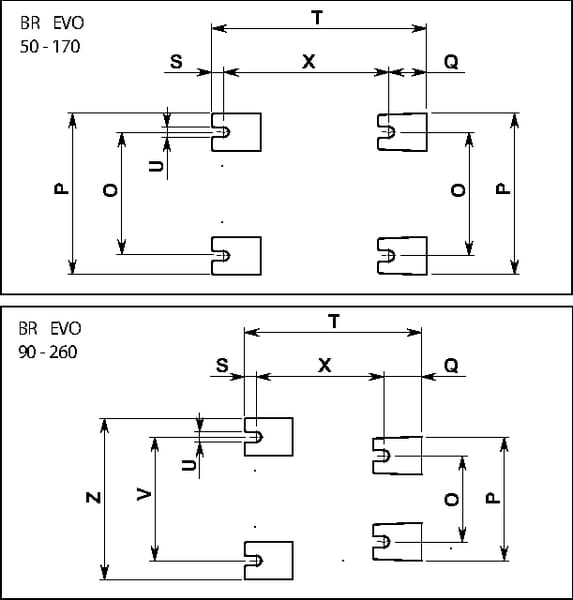

| QPlate length | 70 mm |
| Rotation max. | 600 r/min |
| TDistance T | 399 mm |
| UEye width | 19 mm |
| Unit | Each |
| Weight | 165 kg |
| XDistance bore width | 307 mm |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
BPA000236600
Battioni Pagani BR-EVO 50 P/H key BR76DF
£4.64 excl.
£5.57 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000152738

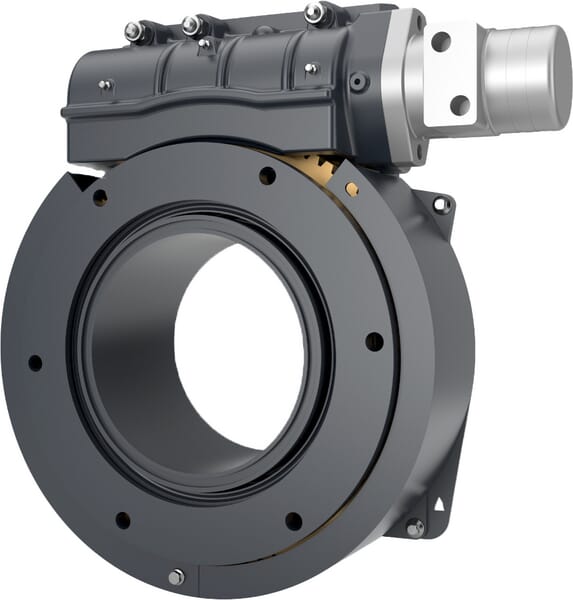

Battioni Pagani REVOBLOCK 10-200 MY21 with motor and cover 6080200577
£3,104.76 excl.
£3,725.71 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000109035
Battioni Pagani Garda pinion - Z56-M3 Wpt/Ga 4020607042
£627.51 excl.
£753.01 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000236709
Battioni Pagani BR-EVO 90-260/H screw BRE81
£4.78 excl.
£5.74 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

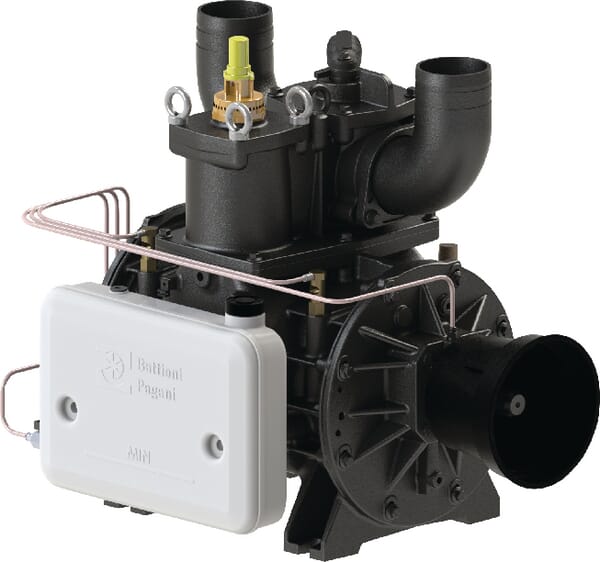

BPA000236826
Battioni Pagani Vacuum pump direct drive AL CCW D100 LL BALLAST16500D
£3,871.26 excl.
£4,645.51 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000128846
Battioni Pagani Checklight 5040200010
£24.27 excl.
£29.12 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
Free shipping

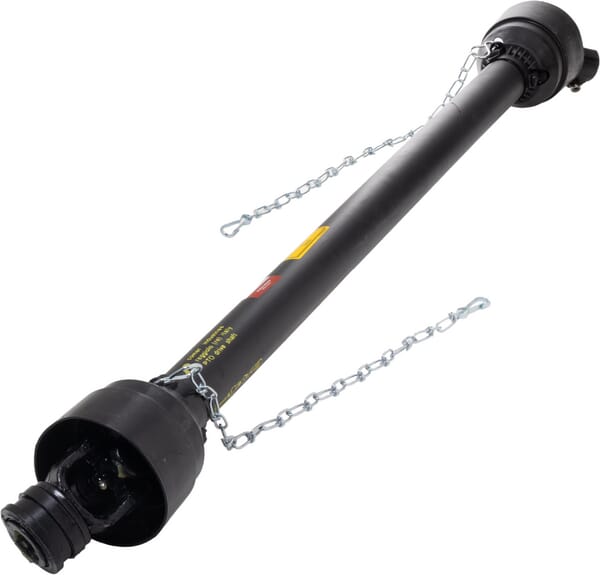

BPA000368715
