£3,230.41
excl. VAT
£3,876.49 incl. VAT
£3,876.49
incl. VAT
£3,230.41 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

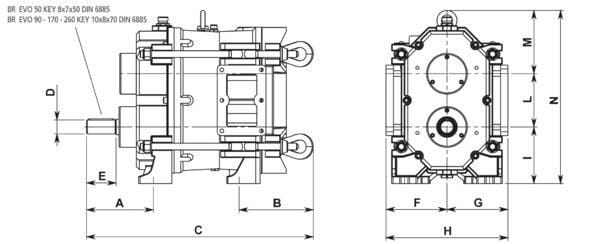

| ADistance end of shaft to mid first bore | 146 mm |
|---|---|

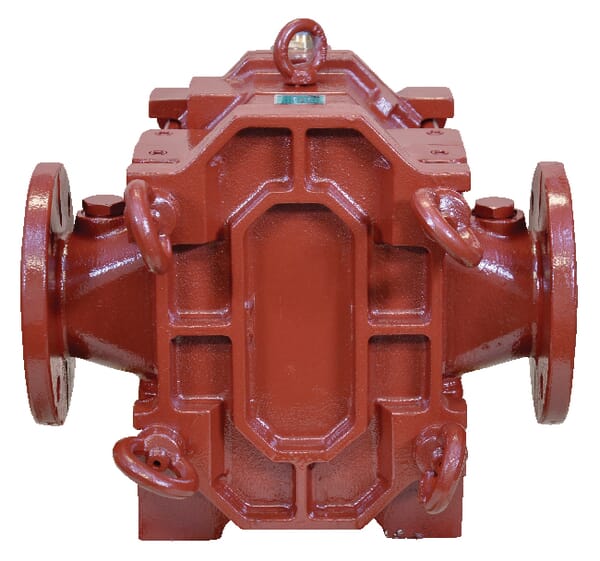

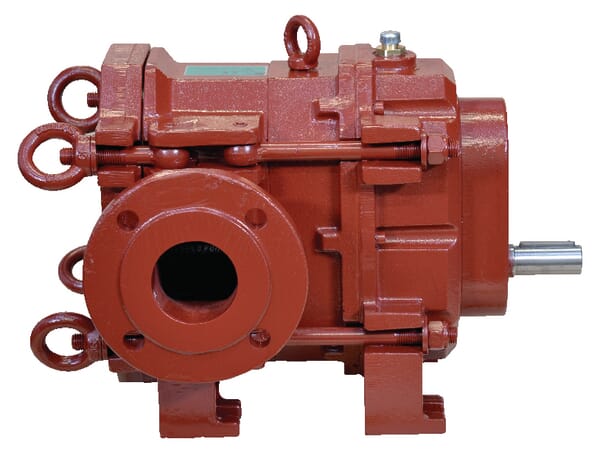

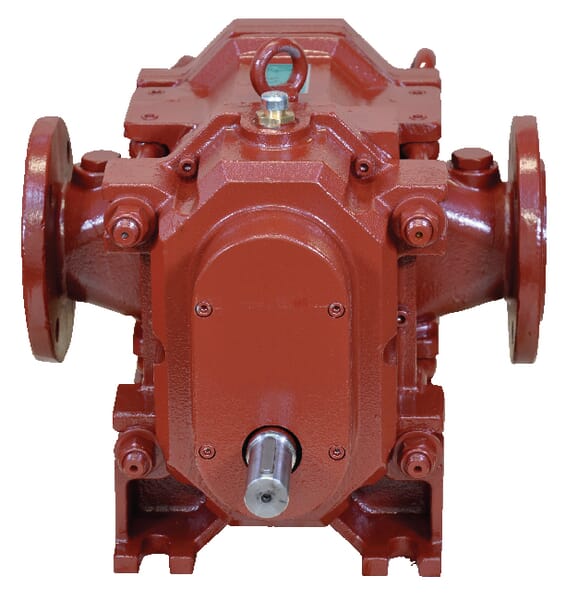

| Application range | The BR-EVO-series displacement pumps from Battioni Pagani have been designed to pump slurry according to the displacement principle, for example from the cellar to the silo |
| BDistance 2nd bore to end | 183 mm |
| Benefits | Lower maintenance costs by maintaining on site, The intermediate chamber filled with oil ensures protection of the drive components |
| CLength | 507 mm |
| Connection | 28 |
| Consists of | The BR-EVO-type pumps are supplied with a special tool for removing the rotors and for installing and removing the mechanical seals, Including CE-compliant PTO shaft guard, Without suction and pressure flange |
| Details | Maintenance on site, For convenient cleaning, simply loosen the four eye nuts on the rear cover and remove the cover plate, The rotors, mechanical seals and wear plates can also be replaced on site, The standard oil-filled intermediate chamber ensures lubrication and cooling of the seals |
| Diameter of mounting hole | 21 mm |
| Distance mounting holes center to center short side | 170 mm |
| Distance underside to center shaft | 120 mm |
| FDistance center shaft to left side | 187.5 mm |
| Flow max. | 633 l/min |
| GDistance center shaft to right side | 187.5 mm |
| HWidth | 375 mm |
| LDistance between shafts | 99 mm |
| MDistance center to top | 130 mm |
| NTotal height | 349 mm |
| P max. (bar) | 10 BAR |
| PMounting width | 225 mm |
| Power requirement (max. pressure) | 11 kW |
| Properties | The BR-EVO-series pumps can be supplied in three versions: direct drive (D), pulley drive (P) or hydraulic drive (H), Tungsten carbide seals between pump housing and intermediate chamber, Replaceable steel cover plates, The three-blade rotor is designed for suction heights of up to an 8-metre head of water, The BR-EVO-type displacement pumps can be operated both clockwise and anti-clockwise |

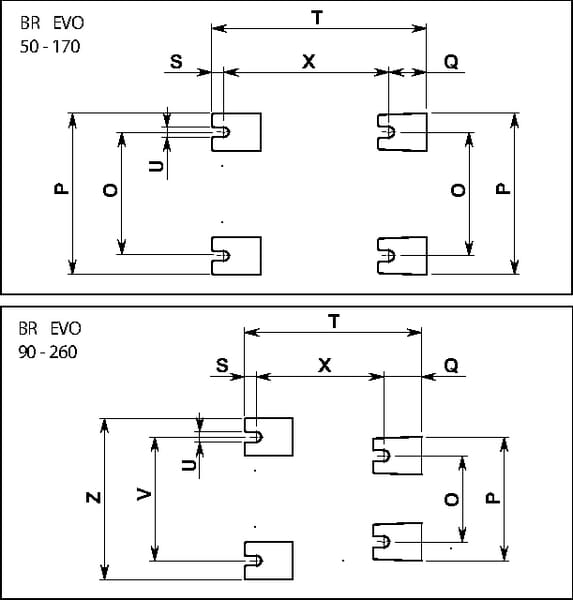

| QPlate length | 50 mm |
| Rotation max. | 600 r/min |
| TDistance T | 249 mm |
| UEye width | 18 mm |
| Unit | Each |
| Weight | 80 kg |
| XDistance bore width | 178 mm |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 80000 g |
| Dimensions | 600 × 400 × 400 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000345809

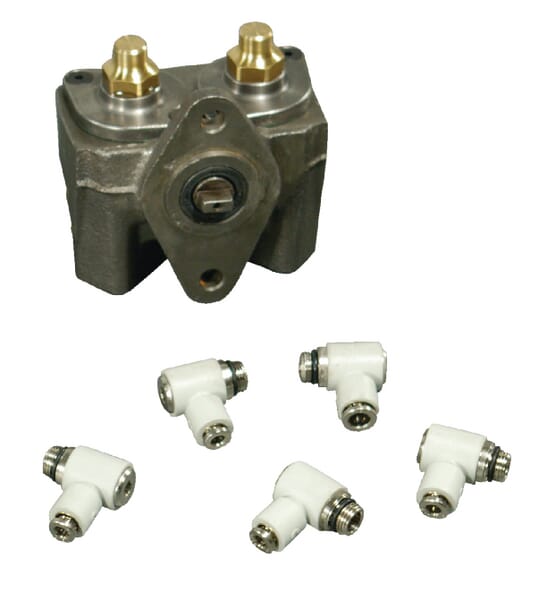

Battioni Pagani Oil pump RH WPT 720 R95BR
£624.31 excl.
£749.17 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000235364

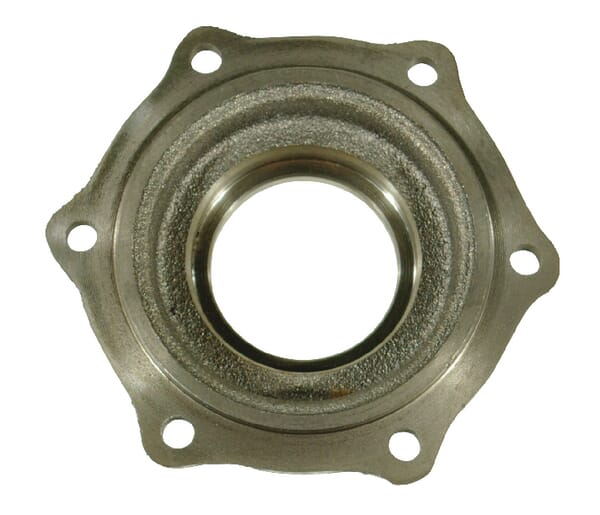

Battioni Pagani Bearing flange B21
£44.96 excl.
£53.95 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000148951
Battioni Pagani Hydraulic Swivel gun 4" 6100300027
£1,010.85 excl.
£1,213.02 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000129552
Battioni Pagani Smooth washer - D 10 5050207004
£1.04 excl.
£1.25 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000152739
Battioni Pagani REVOBLOCK 07-250 MY23 with motor 6080200578
£4,005.70 excl.
£4,806.84 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000152707

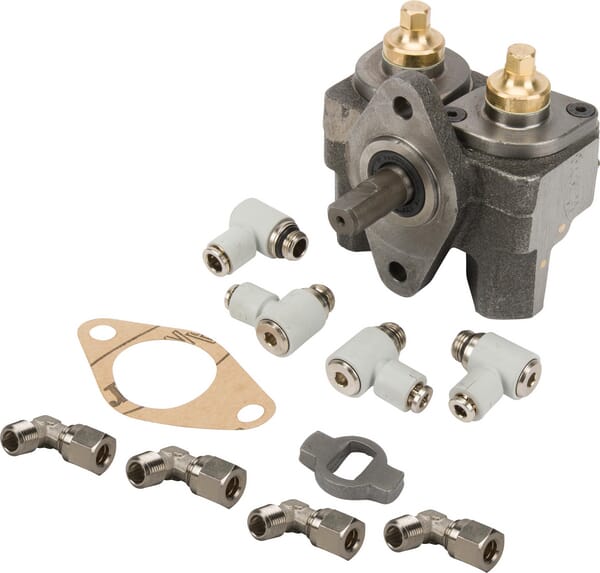

Battioni Pagani Oil pump right complete 6080200073
£604.48 excl.
£725.38 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000272314

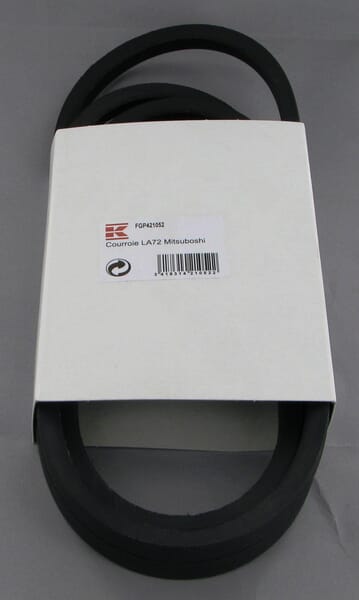

Mitsuboshi V-belt LA72" 12.5x1829 FGP421052
