£3,144.32
excl. VAT
£3,773.18 incl. VAT
£3,773.18
incl. VAT
£3,144.32 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Crash protection system | Yes |
|---|---|
| Depression valve connection diameter | 1-1/2 Inch |
| Diameter of hose connection | 100 mm |
| Drive type | PTO 1000 rpm without gearbox |
| Includes | Including PTO shaft cover, Without pressure relief valve (item 0250013) and vacuum valve (item 0155513), The pumps are delivered without lubrication oil (item BP5070) |
| Long description | MEC16500 pumps have a crash protection system (for example, this can protect the rotor and the rotor housing if a disc breaks by pushing down the rotor, including flange mounting, so that it is out of the way), MEC16500 pumps provide longer running times in vacuum operation, Supplied with heat-resistant "long-life" discs as standard, The pump temperature can be read on the temperature gauge strips, The inspection hole with maximum wear indicator allows the wear on the discs to be checked, Battioni Pagani performs vacuum, compression and lubrication tests on all pumps before they leave the factory, A test report is prepared for each pump by serial number. |
| Lubrication system type | Automatic |
| Max. relative pressure | 2.5 BAR |
| Max. shaft rotation | 1400 r/min |
| Max vacuum | 0.95 BAR |
| Nominal volume flow rate | 16800 l/min |
| Power requirement for max. vacuum | 24 kW |
| Product details | Meaning of the composition of the number:, MEC = Serie, 16500 = type, D = directly driven, 1000 rpm, The MEC16500 pumps have automatic lubrication installed as standard, The lubrication is applied by the manufacturer and can not be adjusted without the proper tool, Always check whether the lubrication is actually working when the pump is switched on, Oil to be used for lubricating the vanes: genuine oil from B.P. Oil item number: BP5070, The direction of rotation is determined when the axle to be driven is aligned with the observer, If, for example, a pump is driven directly by a tractor unit, it must be driven anti-clockwise, These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks, These pumps can generate both positive pressure and vacuum |
| Pros | Minimum repair costs thanks to the unique automatic protection system, As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed. |
| Rotation direction | Counter-clockwise (CCW) |
| Safety valve connection diameter | 2 Inch |
| Shaft diameter | 1-3/8 Inch |
| Unit | Each |
| Vane type | Long life |
| Weight | 235 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 240000 g |
| Dimensions | 790 × 640 × 450 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000235509

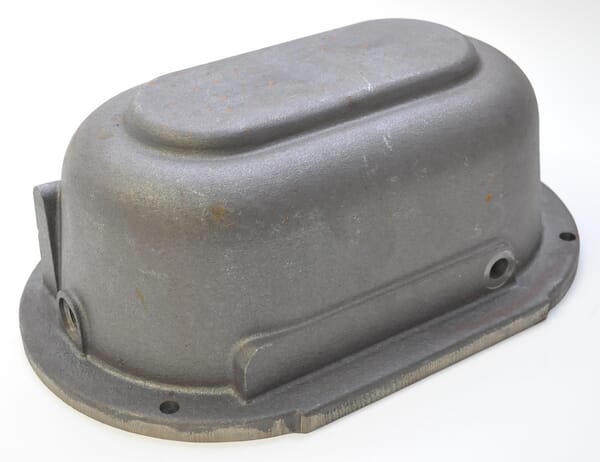

Battioni Pagani Oil crank-case BR B48
£411.03 excl.
£493.24 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000233966

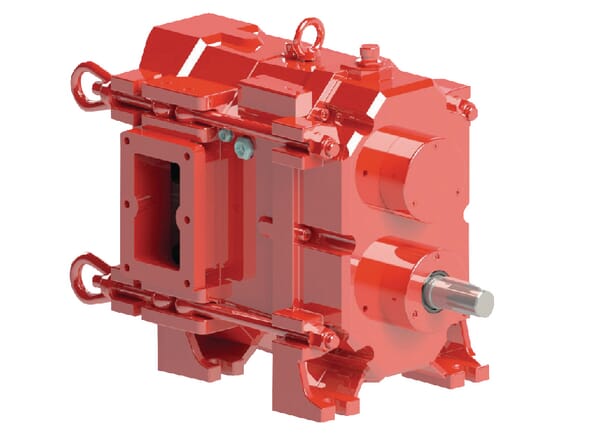

Battioni Pagani BR-EVO pump 166m³/h pulley drive BREVO170P
£4,420.50 excl.
£5,304.60 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000353683

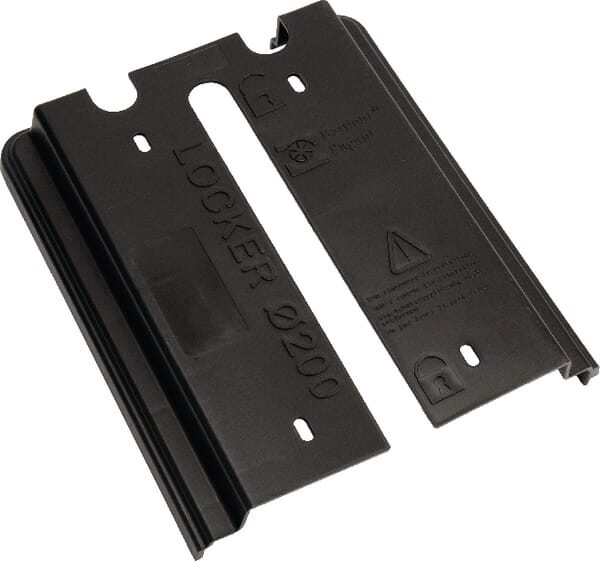

Battioni Pagani Guard SA39200
£88.55 excl.
£106.26 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321253
Battioni Pagani Vacuum pump hydraulic drive, auto-lube and Ballast BP MEC11000HAB
£2,877.92 excl.
£3,453.50 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000245411

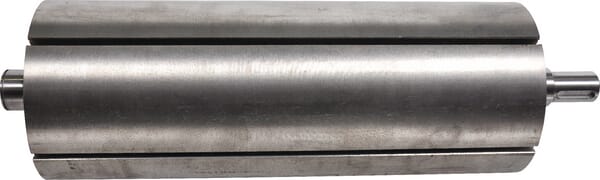

Battioni Pagani Rotor MEC13500 D CMEC5D10
£703.28 excl.
£843.94 incl.
In stock
Expected to ship on Monday 21 September
BPA000345730

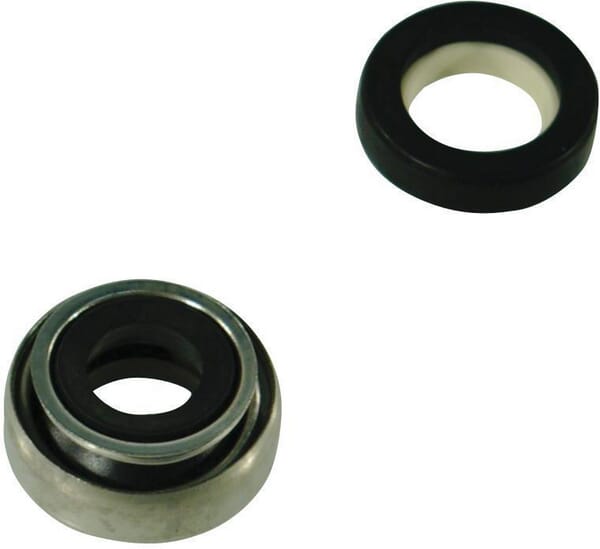

Battioni Pagani Seal kit for pump 15mm R90
