£3,762.92
excl. VAT
£4,515.50 incl. VAT
£4,515.50
incl. VAT
£3,762.92 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks |
|---|---|
| Ballast air injection system | Yes |
| Benefits | Minimum repair costs thanks to the unique automatic protection system, As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed |
| Consists of | Without pressure relief valve (item 0250013) and vacuum valve (item 0155513), The pumps are delivered without lubrication oil (item BP5070), Without pulley |
| Crash protection system | Yes |
| Depression valve connection diameter | 1-1/2 Inch |
| Details | BALLAST pumps have a crash protection system (for example, this can protect the rotor and the rotor housing if a disc breaks by pushing down the rotor, including flange mounting, so that it is out of the way), BALLAST pumps provide longer running times in vacuum operation, Supplied with heat-resistant "long-life" discs as standard, The pump temperature can be read on the temperature gauge strips, The inspection hole with maximum wear indicator allows the wear on the discs to be checked, Battioni Pagani performs vacuum, compression and lubrication tests on all pumps before they leave the factory, A test report is prepared for each pump by serial number |
| Diameter of hose connection | 100 mm |
| Drive type | Pulley |
| Lubrication system type | Automatic |
| Max. relative pressure | 2.5 BAR |
| Max. shaft rotation | 1400 r/min |
| Max vacuum | 0.95 BAR |
| Nominal volume flow rate | 16800 l/min |
| Power requirement for max. vacuum | 24 kW |
| Properties | These pumps can generate both positive pressure and vacuum |
| Rotation direction | Clockwise (CW) |
| Safety valve connection diameter | 2 Inch |
| Shaft diameter | 40 mm |
| Technical info | Meaning of the composition of the number:, BALLAST = series, 16000 = type, P = pulley drive, The BALLAST pumps have automatic lubrication installed as standard, The lubrication is applied by the manufacturer and can not be adjusted without the proper tool, Always check whether the lubrication is actually working when the pump is switched on, Oil to be used for lubricating the vanes: genuine oil from B.P. Oil item number: BP5070, Pumps with a pulley drive rotate clockwise. Anti-clockwise rotation available on request, The direction of rotation is determined when the axle to be driven is aligned with the observer |
| Unit | Each |
| Vane type | Long life |
| Weight | 236 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 235000 g |
| Dimensions | 800 × 620 × 500 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000321281

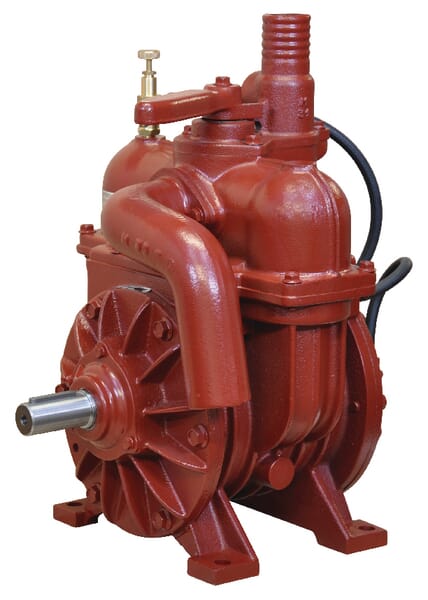

Battioni Pagani Vacuum pump pulley CCW MEC2000PL
£1,061.54 excl.
£1,273.85 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000235653

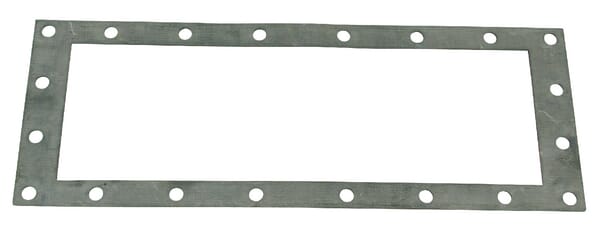

Battioni Pagani Gasket BR 240 D B8240
£29.71 excl.
£35.65 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000276901
Battioni Pagani Central Gear G5
£527.80 excl.
£633.36 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000152735

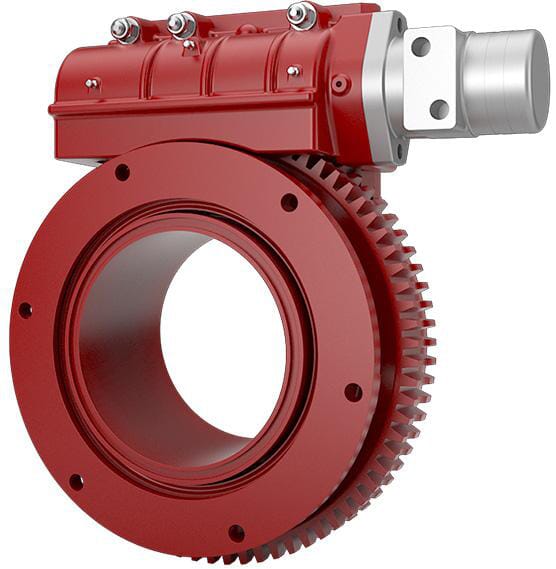

Battioni Pagani REVOBLOCK 07-200 MY21 with motor 6080200521
£3,028.66 excl.
£3,634.39 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000301339
Battioni Pagani Vacuum pump pulley 13520 l/min with automatic lubrication and Ballast KPSB490PRA100
£5,449.37 excl.
£6,539.24 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000235544

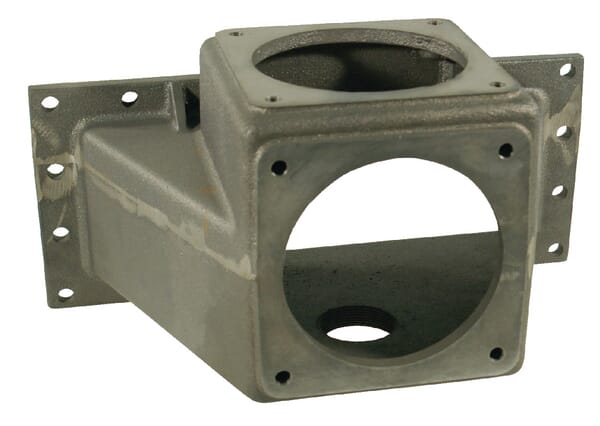

Battioni Pagani Collector BR 280 D B58280
