£560.18
excl. VAT
£672.22 incl. VAT
£672.22
incl. VAT
£560.18 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Mowers, Rotary harrows, Pick-up |
|---|---|
| Benefits | Low space requirement, Torque retention, Smooth transition |
| Clutch type code | FV34 |
| Connection locking type | Clamp cone |
| Details | Compact design, No power interruption, Absorb peak loads for short periods |
| DOutside diameter | 180 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| Max. rotation speed | 1000 r/min |
| Max static torque | 1200 N·m |
| Properties | Regardless of direction of rotation, Power transmission via friction discs, Adjustable, Suitable as a starting clutch |
| Shaft size code | S4, G4 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 9155 g |
| Dimensions | 260 × 250 × 240 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000156837
Bondioli&Pavesi Friction clutch FV34 S4/G4 1200Nm 661E46203R
£455.35 excl.
£546.42 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000148298
Bondioli&Pavesi PTO guard complete, L: 1610mm Bondioliand Pavesi 5CS6161FXWS
£278.39 excl.
£334.07 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000248153

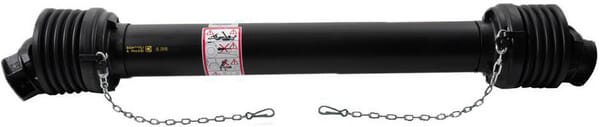

Bondioli&Pavesi PTO shaft S8 L: 860mm, Bondioliand Pavesi CS8N086CE007007
£533.37 excl.
£640.04 incl.
In stock
Expected to ship on Friday 18 September
BPA000073064
Bondioli&Pavesi Friction disc diameter85x140mm Bondioliand Pavesi 247000054R08
£18.08 excl.
£21.70 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000039447

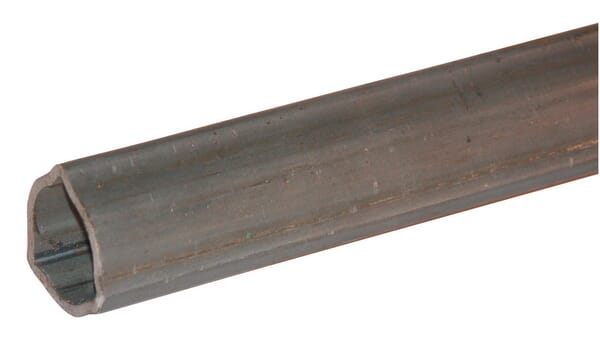

Bondioli&Pavesi Profile tube outer triangular 6/7/G7 diameter in: 46 diameter out: 54x4mm L: 1m Bondioliand Pavesi 125121000R06
£119.13 excl.
£142.96 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000083099

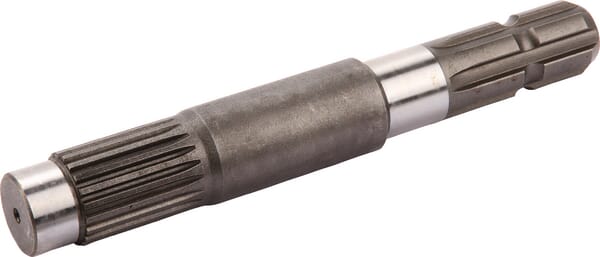

Bondioli&Pavesi Shaft 295034060R
