£270.86
excl. VAT
£325.03 incl. VAT
£325.03
incl. VAT
£270.86 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Crop sprayers, Slurry tanks, Manure spreaders, Hay rakes, Tedders |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extremely reliable, with a low power-to-weight ratio, Extended lubrication intervals of up to 50 hours, Simple maintenance |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 22 mm |
| Cross joint bush diameter by tractor side | 22 mm |
| Cross joint length by machine side | 54 mm |
| Cross joint length by tractor side | 54 mm |
| Details | Enhanced protection concept, Optimised cross journals with double lip seal, Optimally accessible grease nipples (grease nipples aligned in a row) |
| Length | 1210 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Push pin |
| Power 1000 rpm | 18 kW |
| Power 540 rpm | 12 kW |
| Properties | CE marking available |
| Size code | G1 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 9100 g |
| Dimensions | 1400 × 132 × 130 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000144816

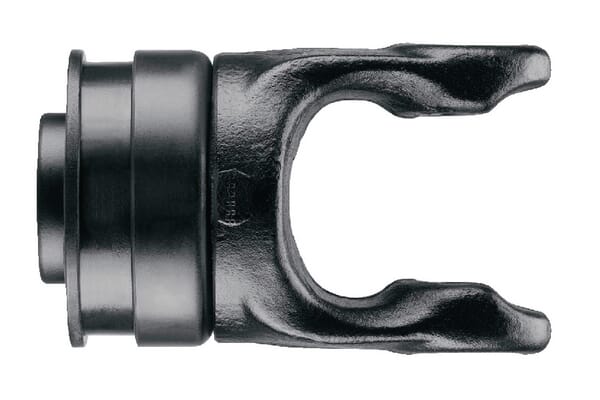

Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-21 spline, S0 Bondioliand Pavesi 5720S3752
£354.15 excl.
£424.98 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000073316

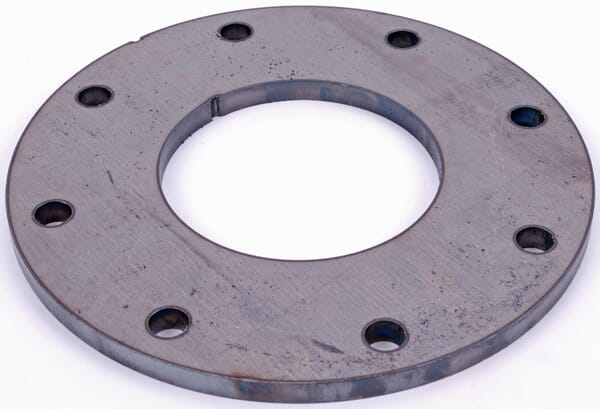

Bondioli&Pavesi Pressure plate FNV 34 2481L0005
£49.71 excl.
£59.65 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000144811
Bondioli&Pavesi Yoke, quick disconnect, 1-3/8"-21 spline, SH Bondioliand Pavesi 5720N3752
£331.53 excl.
£397.84 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000065906

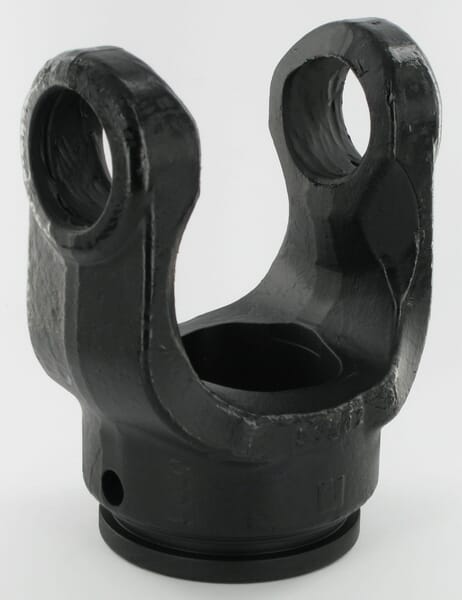

Bondioli&Pavesi Yoke, Profile tube, 66mm, 10 Bondioliand Pavesi 204106851
£212.93 excl.
£255.52 incl.
In stock
Expected to ship on Friday 18 September
BPA000039521

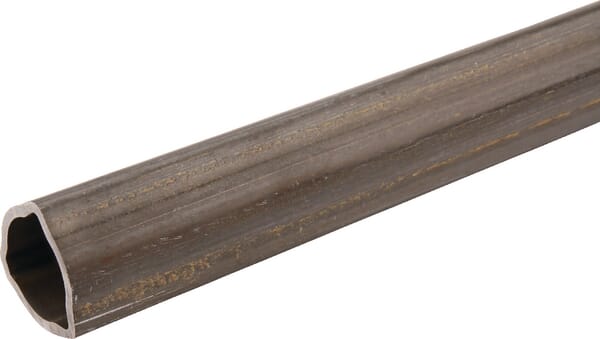

Bondioli&Pavesi Profile tube outer triangular size:2 diameter in: 30.2 diameter out: 36x2.9mm L: 1m wide angle Bondioliand Pavesi 125181000R06
