£273.17
excl. VAT
£327.80 incl. VAT
£327.80
incl. VAT
£273.17 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Crop sprayers, Slurry tanks, Manure spreaders, Hay rakes, Tedders |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extremely reliable, with a low power-to-weight ratio, Extended lubrication intervals of up to 50 hours, Simple maintenance |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 23.8 mm |
| Cross joint bush diameter by tractor side | 23.8 mm |
| Cross joint length by machine side | 61.3 mm |
| Cross joint length by tractor side | 61.3 mm |
| Details | Enhanced protection concept, Optimised cross journals with double lip seal, Optimally accessible grease nipples (grease nipples aligned in a row) |
| Length | 860 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Push pin |
| Power 1000 rpm | 23 kW |
| Power 540 rpm | 15 kW |
| Properties | CE marking available |
| Size code | G2 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 9000 g |
| Dimensions | 1400 × 140 × 140 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000148296
Bondioli&Pavesi Guard complete S6 1510 mm 5CS6151FXSS
£152.07 excl.
£182.48 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000131546
Bondioli&Pavesi Yoke, double, 30.2mm, S9 Bondioliand Pavesi 5110M0051
£672.52 excl.
£807.02 incl.
In stock
Expected to ship on Friday 18 September
BPA000115241
Bondioli&Pavesi Shaft collar kit 435000423R
£91.52 excl.
£109.82 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000066909
Bondioli&Pavesi Guard cone GLOBAL for G5/7/8 219051001
£16.33 excl.
£19.60 incl.
In stock
Expected to ship on Friday 18 September
BPA000102290
Bondioli&Pavesi Guard cone 395002135CE
£77.27 excl.
£92.72 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000248165
Bondioli&Pavesi PTO half shaft, outer S8 L 1310mm CS8R121CEWS0EWS
£1,404.71 excl.
£1,685.65 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000400915

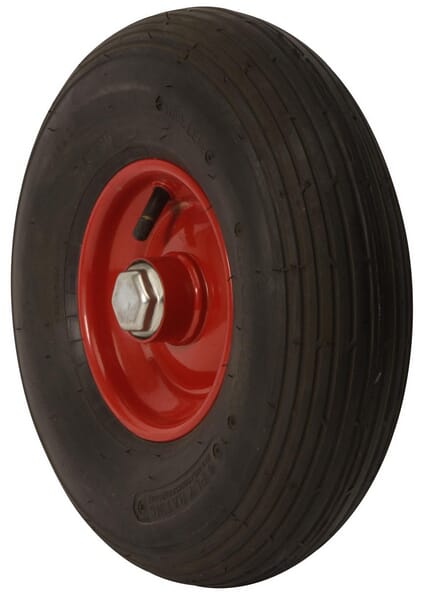

Unbranded Wheel 4.00x6 4PR ST15 diameter 20/25x107 steel rim W400642025107
