£406.32
excl. VAT
£487.58 incl. VAT
£487.58
incl. VAT
£406.32 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Crop sprayers, Slurry tanks, Manure spreaders, Hay rakes, Tedders |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Extremely reliable, with a low power-to-weight ratio, Extended lubrication intervals of up to 50 hours, Simple maintenance |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual |

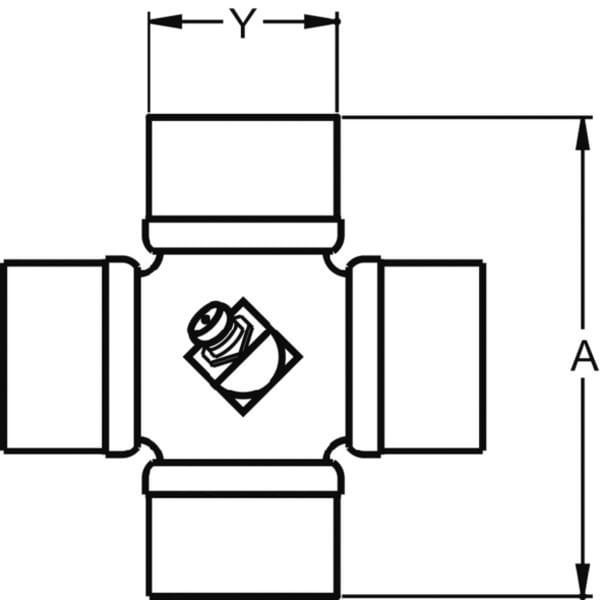

| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 79.4 mm |
| Cross joint length by tractor side | 79.4 mm |
| Details | Enhanced protection concept, Optimised cross journals with double lip seal, Optimally accessible grease nipples (grease nipples aligned in a row) |
| Length | 1210 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Push pin |
| Power 1000 rpm | 54 kW |
| Power 540 rpm | 35 kW |
| Properties | CE marking available |
| Size code | G5 |
| Technical info | Refer to the Bondioli & Pavesi instruction manual, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 20000 g |
| Dimensions | 1400 × 160 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000250235
Bondioli&Pavesi Wide angle PTO shaft S6 L: 1210mm with automatic clutch, Bondioliand Pavesi DS6G121CEWR7002
£1,718.97 excl.
£2,062.76 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000077354
Bondioli&Pavesi Bearing ring S2/4/5 D118 f.I-tube 2550C0002R02
£19.22 excl.
£23.06 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000131545
Bondioli&Pavesi Yoke, double, 8/S8/H8 Bondioliand Pavesi 5110L0063
£517.93 excl.
£621.52 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000037249
Bondioli&Pavesi Profile tube outer SFT S6 diameter in: 47.4 diameter out: 53.9x3.3mm L: 3m Bondioliand Pavesi 122453000R06
£371.43 excl.
£445.72 incl.
In stock
Expected to ship on Friday 18 September
BPA000115011
Bondioli&Pavesi Bolt 432000045R08
£3.95 excl.
£4.74 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000115233

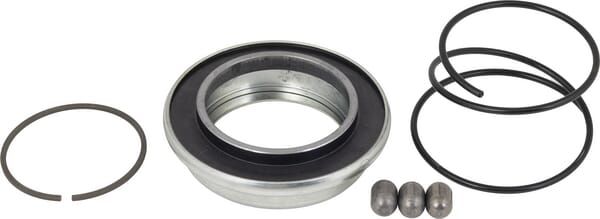

Bondioli&Pavesi Shaft collar kit 435000312R
