Product details
| Application range | Rotary tillers, Shredder, Wood shredders, Stump grinding |
|---|---|
| Benefits | Assembly with no play, Clamping pin is not loaded for stretching |
| Consists of | Fork, Conical clamping pin |

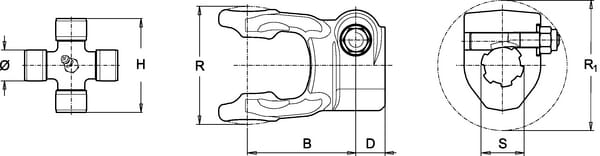

| Cross connection diameter | 30.2 mm |
| Cross length | 79.4 mm |
| Details | Conical pin provides good clamping effect, Housing without slot |
| DLocking bolt to connection end distance | 24 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| Locking bolt to cross bush center distance | 106 mm |
| Locking system | Clamp bolt (interfering) |
| Long description | Clamp-on yokes splined, series SH |
| Outside connection diameter | 30.2 mm |
| Product details | Do not use yoke on tractor side with machines produced after 2005 according to safety standard EN12965, Conical screw ensures good hold, Housing without saw cut |
| Properties | Clamp cone bolt |
| Pros | Slack-free installation, Clamp bolt is not stretched under load |
| Shaft size code | S5, S6, G5, 5 |
| Technical info | In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005 |
| Type | Clamp bolt |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2367 g |
| Dimensions | 135 × 100 × 130 mm |
| Dangerous goods | No |
